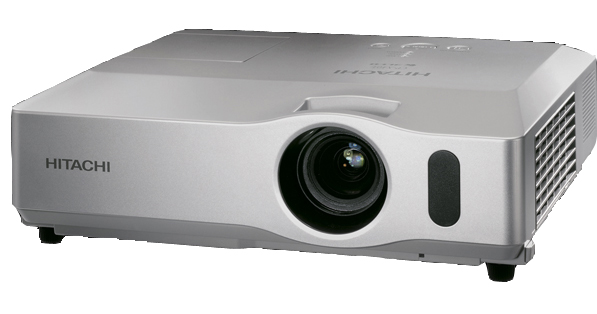

OVERVIEW - Hitachi cpwx410 3000 ANSI Lumens LCD Video Projector:
The Hitachi CP-WX410 3LCD projector offers widescreen capability and full connectivity. The CP-WX410 offers a 16:10 aspect ratio, 3,000 ANSI lumens brightness and optical zoom.
The CP-WX410 projector includes a variety of connectivity options, including an HDMI input. Additionally, automatic vertical keystone, input source naming, and Quick Start and Instant Off functions ensure easy setup and installation. The CP-WX410 provides a closed captioning feature, allowing audience members to read text or dialogue for video fed from a DVD player or television.
FEATURES - Hitachi cpwx410 3000 ansi lumens lcd video projector:
Brightness 3,000 ANSI lumens
Expected lamp Life Approximately 2,000 hours (normal)
Contrast Ratio 500:1
Only 7.7 lbs.
SPECIFICATIONS - HITACHI CP-WX410 3000 ANSI LUMENS LCD VIDEO PROJECTOR:
OPTICAL
LCD Panel
0.59" P-Si TFT x 3
Resolution
WXGA: 1280 dots x 800 lines
Brightness
Normal Mode 3000 ANSI Lumens
Eco Mode 2500 ANSI Lumens
Contrast Ratio
500:1
Lens
Manual Focus, Manual Zoom x 1.2
Lamp
220W UHB
Lamp Life
3000 (Normal) / 4000 (Eco)
Projection Distance
0.9~11.4m
Distance to Width Ratio (:1)
1.5~1.8
Diagonal Display Size
30 ~ 300" (60" @1.8m, Wide)
Number of Colours
8 Bits / colour, 16.7M colours
Optical Keystone
9:1 upward shift, fixed
COMPATIBILITY
Computer Compatibility
IBM Compatible VGA, SVGA, XGA, WXGA, SXGA, UXGA compressed, MAC 16"
Freeze, magnifying, blank, auto adjustment, search,
page up & down (for USB mouse function), equalizing gamma correction, 2-3 pull down, Progressive Scan, noise reduction, auto V keystone + / -30 degrees, MyScreen,
My Memory, My Button, blackboard / whiteboard mode, day time mode, input source naming (English), resolution setting, My Text function (English), audio pass through, AV mute in, My Button, template mode, saving mode, easy lamp replace from top, air filter on side, Quick ON (4 sec), Direct ON, Direct Off, PIN-Lock, MyScreen PIN-Lock, keypad Lock, Kensington slot, transition detector, security bar, serial number label on side
OSD Languages
MENU: 17 Languages
Speakers
10W Mono
CONNECTIONS
Computer Input
2 x 15-pin Mini D-sub
1 x HDMI
Computer output
1 x 15-pin Mini D-sub
Video Input
1 x RCA jack
1 x S-Video jack
3 x RCA jack (for Component)
Audio Input
2 x Stereo Mini jack
1 pair RCA(L / R) (Selectable on OSD)
Audio Output
1 x Stereo Mini Jack
Control and Mouse
1 x 9-pin D-sub for RS232 control
1 x USB type B for mouse control
POWER
Power Supply
100-120V / 220-240V auto switching
power consumption
320W
PHYSICAL
Dimensions (W x H x D)
340 x 100 x 270mm (excluding feet and extrusions)
Weight
3.5Kg
Noise Level
35dB / 29dB
Air filter
Hybrid
MISCELLANEOUS
Lamp Indicator Light, Power Light, Ceiling Mount Image, Rear Projection Image
CERTIFICATION
UL60950 / C-UL, FCC Part 15 Class B, 'CE, AS / NZS CISPR22 Class B
ACCESSORIES SUPPLIED
Remote control with batteries (no laser pointer), computer cable, power cord, user manual (detailed & concise), lens cap (& strap), security label, AV cable
