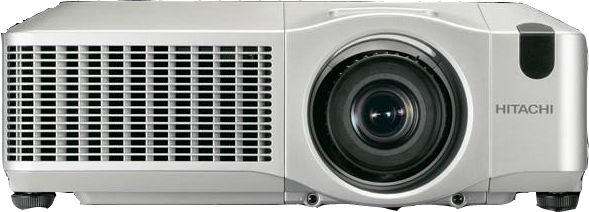

OVERVIEW - Hitachi cpwx625 4000 ANSI Lumens LCD Video Projector:
The Hitachi CP-WX625 LCD projector features a brightness of 4,000 ANSI lumens and a 2,000-hour hybrid filter, along with networking functionality and Hitachi’s proprietary My Image Campus Notification system. It is specially designed for use with widescreen-format laptops and imaging applications that use 16:10 aspect ratios. Additionally, the CP-WX625 features picture-by-picture functionality as well as an HDMI terminal, allowing digital signals such as DVD players/recorders and HD to be transmitted digitally to the projector. A 16-watt speaker output provides sufficient audio coverage, while the hybrid filter is side-mounted, allowing for easier maintenance. Further simplifying maintenance, the CP-WX625 also features a top-door lamp, making replacement much easier.
FEATURES - Hitachi cpwx625 4000 ansi lumens lcd video projector:
Brightness 4,000 ANSI lumens
Expected lamp Life
Approximately 2,000 hours (normal)
Contrast Ratio 1000 : 1 (using Active Iris)
Aspect Ratio Native 16:10 / 4:3 compatible
SPECIFICATIONS - HITACHI CP-WX625 4000 ANSI LUMENS LCD VIDEO PROJECTOR:
OPTICAL
LCD Panel
19.1mm (0.75"), P-Si TFT panel x 3, Stripe pixel configuration 1280 dots x 800 lines x 3 panels with microlens
Resolution
WXGA
Brightness
Normal Mode 4000 ANSI Lumens
Eco Mode 3200 ANSI Lumens
Network, Configuring and Controlling the Projector via a Web Browser, Failure and Warning Alerts via E-mail, Projector Management via SNMP, Controlling the Projector via Scheduling, MY IMAGE (still image transfer) Display, Command Control via the Network, ASPECT selection, For Video: 4:3 / 16:10 / 16:9 / 14:9 / Real, For Data: Normal / 4:3 / 16:10 / 16:9 / Real, The NORMAL mode keeps the original aspect ratio of the signal, For HDMI: Normal / 4:3 / 16:10 / 16:9 / 14:9 / Real, The NORMAL mode keeps the original aspect ratio of the signal, Vertical Digital Keystone Correction: ±40degrees, Horizontal Digital Keystone Correction: ±20degrees, (Note: Input signal is WXGA @60Hz, Zoom position is Wide max.), Mirror Reverse Image, Up-side Down Image, Picture Freeze by RS-232C / Remote control, Magnify by RS232C / Remote control, Image blank by RS232C / Remote control, Template (Test pattern and 4 Template image patterns), MyScreen, My Memory, My Button, My Text, My Source, Equalizing Digital Gamma Correction, Equalizing Colour temperature Adjustment, Picture mode (Normal, Cinema, Dynamic, Board (Black), Board (Green), Whiteboard, Daytime), Progressive (Video / S-Video signal, 1125i(1080i)), 2-3 Pull Down for NTSC, Video noise reduction, Overscan (Video, S-Video, Component signal), Resolution setting, Frame Lock (Data signal with vertical frequency of 50 to 60Hz, Audio ports assign, Audio out (standby) and Monitor out / selectable source with OSD, Source naming Auto on, Auto off, Auto signal search, Security Lock, PIN Security Lock, MyScreen PIN-Lock, Transition Detector, My TEXT Lock, Keypad Lock, Picture by Picture, Filter timer / selectable interval time to show the message for cleanup the air filter.
OSD Languages
MENU : 17 Language
CONNECTIONS
Computer Input
1 x 15-pin Mini D-sub
1 x HDMI
1 x BNC
Computer output
1 x 15-pin Mini D-sub
Video Input
1 x RCA Jack (for composite)
1 x S-Video Jack Mini-DIN 4-pin
3 x RCA Jack (for component)
Audio Input
2 x Stereo Mini Jack
2 x Pair RCA (L / R) (Selectable on OSD)
Audio Output
1 x Stereo Mini Jack
Control and Mouse
1 x 9-pin D-sub for RS232 control
1 x USB type B for mouse control
Wired network
1 x RJ-45
POWER
Power Supply
AC90 ~ 132V / AC198 ~ 264V (50 / 60Hz)
Power Consumption
460W
PHYSICAL
Dimensions (W x H x D)
418 x 139 x 319mms (excluding feet and extrusions)
Weight
7.1Kg / 15.7lbs
Noise Level
35dB / 29dB
Air filter
Hybrid
MISCELLANEOUS
Lamp indicator light, Power light, Ceiling Mount image, Rear Projection Image
CERTIFICATION
EN60950-1 (Low voltage directive) EN61000-3-2, EN61000-3-3, EN55022, EN55024(EMC directive)
ACCESSORIES SUPPLIED
Power cord (US cord, 3m) x 1, (UK cord, 3m) x 1 and (Euro code, 3m) x 1, RGB Cable (2m) x 1, Wireless Remote Control Unit x 1, AA Batteries x 2, Rivet x 1, Strap x 1, Lens cover x 1, Security Label x 1, User’s Manual (Operating Guide, Network Function, Safety Instructions) x 1, User’s Manual (Concise) x 1
OPTIONAL ACCESSORIES
Replacement Lamp
DT00873
Optional lenses
FL-601: Fixed short throw (1: 0.8), F=2.3 (f=13mm)
SL-602: Short throw (1:1.2~2.0), F=1.9~2.6 (f=20~32mm)
LL-603: Long throw (1:2.0~3.9), F=2.1~2.9 (f=32~63mm)
UL-604: Ultra long throw(1:3.9~7.4), F=2.2~3.1 (f=63~117mm)
