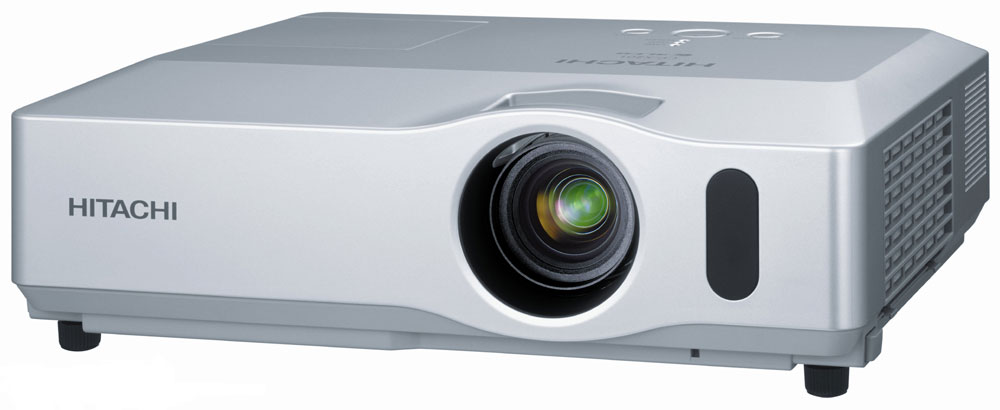

Hitachi CPX201 2200 ANSI Lumens LCD Video Projector

no longer available

Return to Hitachi Video Projector Main

KEY POINTS - CPX201 Hitachi 2200 ANSI Lumens LCD Video Projector:

• Resolution 1024 X 768
• Aspect ratio Native 4:3
• Brightness 2,200 ANSI lumens
• Contrast ratio 500 : 1

SUMMARY - Hitachi cpx201 2200 ANSI Lumens LCD Video Projector:

The Hitachi CP-X201 boast 2,200 lumens but weighs a very light 7.7 pounds is easy to install or use on a cart top. The CP-X201 features 7 Watts of built-in audio, eliminating the need for external speakers, while the Audio Pass Through function allows audio to play while the projector is in standby mode. The projectors maintain a low noise rating of 29 dB in Whisper Mode.


DETAILED SPECS - HITACHI CP-X201 2200 ANSI LUMENS LCD VIDEO PROJECTOR:

• Crystal panel structure 0.63” polysilicon active-matrix TFT x 3
• Number of pixels 786,432 pixels
• Resolution Video 540 TV lines
• RGB 1024 dots X 768 lines
• Colors 16.7 million colors
• Aspect ratio Native 4:3/16:9 compatible
• Lens F2.3 - 2.5, manual zoom x 1.2
• Throw ratio (distance : width) 1.5 ~ 1.7 : 1
• Lamp 220W UHB
• Brightness 2,200 ANSI lumens
• Expected lamp life Approximately 3,000 hours (normal) 4,000 hours (whisper)*
• Contrast ratio 500 : 1
• Speakers 7W (1 speaker)
• Power supply AC100-120V/AC220-240V 50/60Hz
• Power consumption 320W
• Operating temperature 5˚C - 35˚C (41˚F - 95˚F)
• Input signals VGA, SVGA, XGA, SXGA, SXGA+, UXGA, MAC13”, MAC16”
• Composite video NTSC, NTSC4.43, PAL, SECAM, PAL-M, PAL-N
• Component video 480i, 576i, 480p, 720p, 1080i
• Acoustic noise level 35dB (29dB in whisper mode)
• H sync 15kHz ~ 106kHz
• V sync 50Hz ~ 120Hz
• Auto Vertical Keystone +/- 30 degrees
• Approvals UL60950 / C-UL, FCC Part15, Class B, EN60950
• RGB input Analog RGB 15-pin D-sub connector x 2
• RGB output RGB 15-pin D-sub connector x 1
• Video input S-video Mini DIN 4-pin connector x 1
• Composite video RCA jack x 1
• Component video RCA jack x 3
• Audio Input Stereo mini jack x 2, RCA (L/R) x 1 pair
• Output Stereo mini jack x 1
• Other
• Control terminals 9-pin D-sub connector x 1 (RS-232 control)
• Other USB connector (USB mouse) x 1
• Dimensions 13.4” x 10.6” x 3.9” (W x H x D)
• Weight 7.7 lbs.
• Additional Accessories Kensington Slot, Digital Gamma Correction, Whiteboard / Blackboard Mode, Input Source Naming, MyMemory / MyScreen / MyButtons / MyText, Auto V Keystone, Serial Number on Side
• Supplied accessories Remote Control, Batteries (AA), RGB cable, RCA Video Cable, US Power Cord, Multiple language operator / Safety Manual, Soft Case
• Lamp CPX201/301/401LAMP (DT00911)
• Remote Control HL02483
• Filter MU05611

Manufacturer Link: www.hitachi.us
