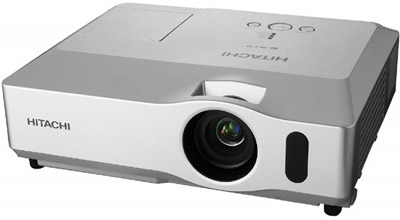

Hitachi CPX206 3LCD Projector hitachi cp-x206

KEY POINTS - CPX206 Hitachi 2200 ANSI Lumens 3LCD Video Projector:

2200 ANSI Lumens

Native XGA Resolution (1024 x 768)

Contrast ratio of 500:1

Weighs 7.7 lbs

7 Watt Audio output

29 dB (whisper mode)

2 RGB inputs / 1 RGB output

Component / composite / S-video inputs

Network Control, Maintenance, & Security

Approx. 4,000 hours (whisper mode)

Security Bar & Transition Detector

Side-Mounted Hybrid Filter (2,000 Hours between maintenance)

Instant On/Off

Audio Pass Through

Template Function

Power Saving Mode

SUMMARY - Hitachi cpx206 2200 ANSI Lumens 3LCD Video Projector:

The Hitachi CP-X206 projector features a new hybrid filter, allowing for 2,000 hours before maintenance, located on the side of the chassis, making it accessible no matter how the projector is mounted. The CP-X201 also offer longer lamp life (3,000 hours in standard mode; 4,000 hours in Whisper Mode).

Ideal for virtually any application, the Hitachi CP-X206 LCD projector offers remote control and maintenance via a LAN connection, while Hitachi’s proprietary My Image technology allows administrators to send still images to every projector on the network.

DETAILED SPECS - HITACHI CP-X206 2200 ANSI LUMENS 3LCD VIDEO PROJECTOR:

Image Quality
Resolution	XGA (1024 x 768)
Brightness	2200 lumens
Contrast Ratio	500:1
No. of Colors	16.7 million colors
Aspect Ratio(s)	4:3, 16:9 compatible
Display Type	LCD; 0.63” Polysilicon Active-matrix TFT x 3
Compatibility
Data Signals	Native: XGA (1024 x 768) VGA, SVGA, XGA, SXGA, SXGA+, UXGA, MAC13”, MAC16”
Video Signals	DTV: 480i, 576i, 480p, 720p, 1080i NTSC, NTSC4.43, PAL, SECAM, PAL-M, PAL-N
H Sync	15 kHz - 106 kHz
V Sync	50 kHz - 120 kHz
Connectivity
Inputs	2 x RGB D-Sub 15pin 1 x S-Video 1 x Composite 3 x Component 2 x Stereo Mini Jack
Outputs	1 x RGB D-Sub 15pin 1 x Stereo Mini Jack
Built-in Audio	1 x 7W Mono Speaker
Projection Lens
Lens	1.2x Manual Zoom F1.7 - 1.9
Image Size	30 - 300 inches diagonal
Throw Distance	34 - 423 inches
Throw Ratio	1.5 - 1.8
Keystone Corr.	+ / - 30 degrees
Proj. Methods	Front, rear, ceiling
General
Dimensions	13.4" x 4.6" x 10.6" (W x H x D)
Unit Weight	7.7 lbs.
Operation
Power Supply	AC100 - 120V / AC220 - 240V 50/60 Hz power
Power Consumption	320W
Ecomode	Yes (Brightness: 1760 lumens; Lamp life: 4000 hours; Noise: 29 dB)
FCC Class	B
Audible Noise	35.0 dB
Lamp	220W UHB
Lamp Life	3000 hours
Warranty
Projector	3 years parts and labor
Lamp	90 days or 250 hours of use
