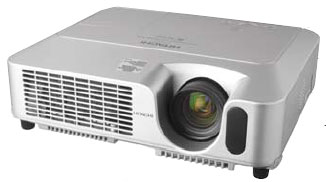

SUMMARY - Hitachi cpx251 2000 ANSI Lumens Lcd Video Projector:
The 2,000 ANSI lumen CP-X251 series Hitachi 3LCD projector offers advanced functionality for the education market, including Hitachi’s exclusive Input Source Naming function, which allows users to customize the names of their individual input sources. The CP-X251 also features two RGB inputs, MyScreen/MyMemory preset options, and a remote control with Hitachi’s MyButtons
function.
Additionally, the CP-X251 is equipped with a
security bar, Kensington security slot and transition detector (a
sensor located inside the projector that recognizes when the projector
has been moved). The CP-X251series boasts customizable resolution,
which allows users to automatically resize special resolutions or
undetectable wide size resolution images and set to the best position
on the screen, creating a near perfect image.
DETAILED SPECS - HITACHI
CP-X251 LCD PROJECTOR:
Liquid crystal panel structure
0.63” polysilicon active-matrix TFT x 3
Number of pixels
786,432 pixels
Native Resolution
1024 x 768
Colors
16.7 million
Aspect Ratio
Native 4:3, 16:9 capable
Lens
F1.7 – 1.9 manual zoon 1:1.2
Throw ratio (distance:width)
1.5 – 1.7:1
Lamp
200W UHB
Brightness
2000 ANSI Lumens
Expected lamp life
3000 hrs (whisper mode) 2000 hrs (natural mode)
Contrast ratio
500:1
Speakers
1W x 1
Power supply
AC100-120V/AC220-240V 50/60Hz
Power consumption
310W
Operating temperature
5 C – 35 C (41 F – 95 F)
Input Signals
RGB
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, MAC13”, MAC16”
Composite video
NTSC, NTSC 4:3, PAL, SECAM, PAL-M, PAL-N
Component video
480i, 576i, 480pl, 720p, 1080i
Acoustic noise level
39dB (34dB in whisper mode)
H sync
15kHz – 106kHz
V sync
50Hz – 120Hz
Approvals
UL60950 / C-UL, FCC Class B
Inputs
RGB input
15-pin D-sub connector x 2
RGB output
15-pin D-sub connector x 1
S-Video
Mini DIN 4-pin connector x 1
Composite video
RCA jack x 1
Component video
RCA jack x 3
Audio input
Stereo mini jack x 2, RCA jack (L/R) x 1
Audio output
Stereo mini jack x 1
Control terminals
9-pin D-sub connector x 1 (RS-232 control)
USB connector (USB mouse) x 1
Dimensions
12.0” x 3.4” x 9.8” (W x H x D)
Weight
6.6 lbs
Supplied accessories
Remote control, batteries (AA), RGB Cable, RCA Video Cable,
Power Cord, Multiple Language Operator / Safety Manual, Soft
Case, Label
