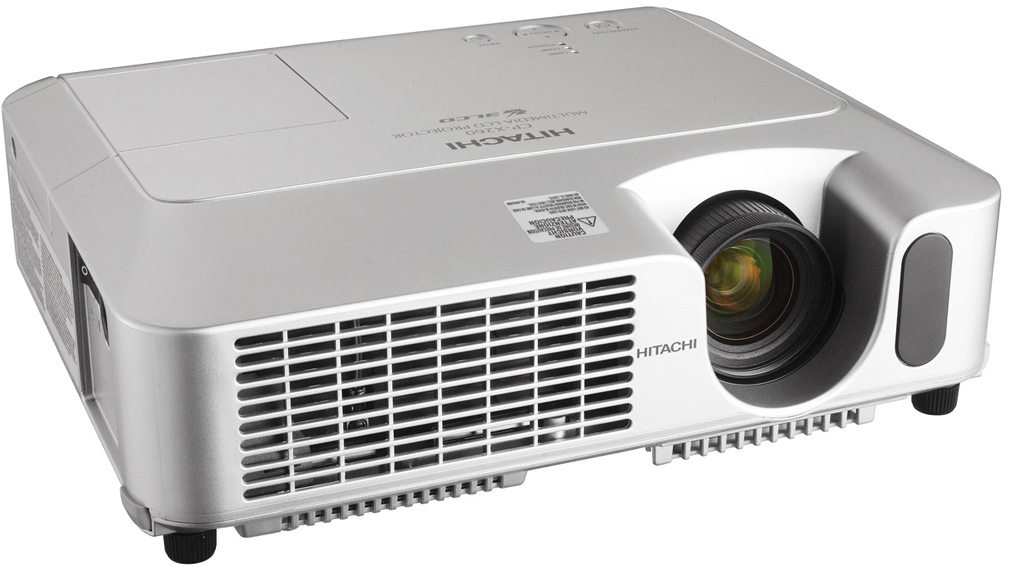

Hitachi CPX260 XGA 2500 ANSI Lumens Portable LCD Video Projector

no longer available

Return to Hitachi Projector Page

KEY POINTS - CPX260 Hitachi XGA 2500 ANSI Lumens LCD Video Projector:

• 2500 ANSI Lumens
• Native XGA Resolution 1024 x 768
• Native Aspect Ratio 4:3
• Contrast Ratio 500:1

SUMMARY - Hitachi cpx260 XGA 2500 ANSI Lumens LCD Video Projector:

With 2,500 ANSI lumens of brightness, advanced connectivity and portability, the CP-X260 meets the needs of any classroom application. With motion adaptive progressive scan, the CP-X260 offers less line flicker, higher resolution and smoother motion picture. Additionally, the CP-X260 features 2-3 Pull-down, offering precise reproduction of movie film and a crisp picture. CP-X260 offers advanced usability, including Hitachi’s exclusive Input Source Naming function, which allows users to customize the names of their individual input sources.

Also exclusive to Hitachi, customizable resolution allows users to automatically resize special resolutions or undetectable wide size resolution images and set to the best position on the screen, creating a near perfect image. Additionally, Whiteboard Mode reduces the peak whites of the CP-X260 for easy-to-see images on a whiteboard, which is also a “Hitachi Only” function.

DETAILED SPECS - HITACHI CP-X260 LCD PROJECTOR:

• Liquid crystal panel structure 0.63” polysilicon active-matrix TFT x 3
• Number of pixels 786,432 pixels
• Resolution Video 540 TV lines RGB 1024 dots X 768 lines
• Colors 16.7 million colors
• Aspect ratio Native 4:3/16:9 compatible
• Lens F1.7 - 1.9 manual zoom 1:1.2
• Throw ratio (distance:width) 1.5 - 1.7:1
• Lamp 200W UHB
• Brightness 2,500 ANSI lumens
• Expected lamp life Approx. 3,000 hrs (Whisper Mode) Approx. 2,000 hrs (Natural Mode)
• Contrast ratio 500 : 1
• Speakers 1W x 1
• Power supply AC100-120V/AC220-240V 50/60Hz
• Power consumption 310W
• Operating temperature 5°C ~ 35°C (41°F ~ 95°F)
• Input signals RGB VGA, SVGA, XGA,SXGA, SXGA+, UXGA, MAC13”, MAC16” Composite video NTSC, NTSC4.43, PAL, SECAM, PAL-M, PAL-N Component video 480i, 576i, 480p, 720p, 1080i
• Acoustic noise level 39dB (34dB in whisper mode)
• H sync 15kHz ~ 106kHz
• V sync 50Hz ~ 120Hz
• Vertical keystone correction Digital keystone +/– 30°
• Approvals UL60950 / C-UL, FCC Part15, Class B
• Input/Output terminals
• RGB input Analog RGB 15-pin D-sub connector x 2
• RGB output RGB 15-pin D-sub connector x 1
• Video input S-video Mini DIN 4-pin connector x 1 Composite video RCA jack x 1 Component video RCA jack x 3
• Audio Input Stereo mini jack x 2, RCA jack (L/R) x 1 Output Stereo mini jack x 1
• Control terminals 9-pin D-sub connector x 1 (RS-232 control) USB connector (USB mouse) x 1
• Dimensions 12.0” x 3.4” x 9.8” (W x H x D)
• Weight 6.6 lbs.
• Supplied accessories Remote Control, Batteries (AA), RGB Cable, RCA Video Cable, Power Cord, Multiple Language Operator / Safety Manual, Soft Case, Security Label

Manufacturer Link: www.hitachi.com
