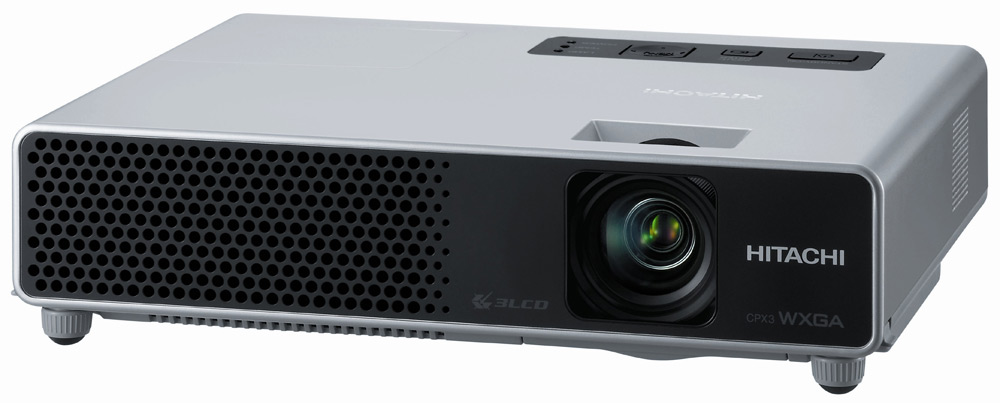

Hitachi CPX3 WXGA Portable LCD Video Projector cp-x3

OPTICAL

LCD Panel

0.59" P-Si TFT x 3

Resolution

WXGA: 1280 dots x 800 lines

Brightness

2000 ANSI Lumens (Normal)
1500 ANSI Lumens (Eco)

Contrast Ratio

500:1

Lamp

190W UHB

Lens

F1.7~1.9 (f=19~23mm)

Lamp Life

3000 (Eco)

Diagonal Display Size

30 ~ 300" (60" @1.8m, Wide)

Number of Colours

8 Bits / colour, 16.7M colours

Keystone Correction

10:1 upward shift, fixed

COMPATIBILITY

Computer Compatibility

IBM Compatible VGA, SVGA,XGA, SXGA, UXGA, MAC 16" (pixelworks Chip)

Video Compatibility

NTSC / PAL / SECAM / PAL-M,N / NTSC4.43 SDTV: 525i(480i), 525p(480p), 625i(576i) HDTV: 750p (720p@50 / 60Hz), 1125i(1080i@50 / 60Hz), 1125p(1080p@50 / 60Hz)

Plug & Play

DDC2B

FEATURES

Speaker

Other:

Vertical Digital Keystone Correction: ±30degrees (Note: Input signal is XGA @ 60Hz, Zoom position is wide max.), Auto vertical digital keystone correction: ±30degrees, Mirror reverse image, Up-side down image, Freeze, Magnify, Blank, Digital gamma correction, Colour temperature Adjustment, Picture mode (Normal, Cinema, Dynamic, Board (Black), Board (Green), Whiteboard), Progressive (Video / S-Video signal, Component video of 525i(480i), 625i(576i)), 2-3 Pull Down for NTSC, Video noise reduction, Overscan (Video, S-Video, Component signal), Resolution setting, Frame Lock, Audio ports assign, Source naming, Quick start (3 Seconds), Instant off, Auto signal search, Audio pass through, daytime mode, resolution setting, My Text, MyScreen PIN-Lock, PIN Security Lock.

OSD Languages

MENU : 17 Language

Computer Input

15-pin Mini D-sub x 2, HDMI x 1

Video Input

Composite x 1, S-Video Jack x 1 Component x 1 (shared with D-sub1)

Audio Input

1 x Stereo Mini Jack

Audio Output

Stereo Mini Jack x 1

POWER

Power Supply

100~120 / 220~240V, auto switching

Power Consumption

310W

PHYSICAL

Dimensions (W x H x D)

274 x 59 x 205mm (excluding feet and extrusions)

Weight

1.7kg (3.8lbs)

Noise Level

40dB (Normal Mode)/34dB (Whisper Mode)

Air Filter

MU03602

MISCELLANEOUS

Lamp indicator light, Power light, Temp Indicator Light, Ceiling Mount image, Rear Projection Image

CERTIFICATION

CE approval, EN61000-3-2, EN61000-3-3, EN55022, EN55024, EN60950, Low voltage directive, WEEE

ACCESSORIES SUPPLIED

Power Cord, RGB Cable (2m), Wireless Remote Control Unit, "AA" Batteries (x 2), Soft Case, Rivet, Strap, Lens Cap, Filter Cover (for bottom-up use), Operating Guide (14 Languages), Safety Instructions (15 Languages on CD-ROM), Users Manual (14 Languages)

OPTIONAL ACCESSORIES

Replacement Lamp

DT00821
