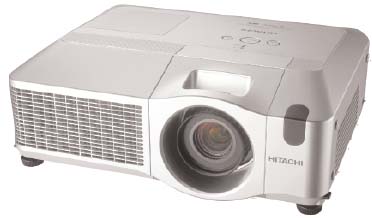

Hitachi CPX605 4000 ANSI Lumens Lcd
Video Projector

Item Currently Unavailable

Return to Hitachi Video Projector Page

KEY POINTS - CPX605 Hitachi 4000 ANSI Lumens Lcd Video Projector:

• 4,000 ANSI Lumens
• Native XGA Resolution
• 15.6 lbs
• 2 RGB inputs, 1 RGB Output, and 1 M1-D
• Component / Composite / S-Video Inputs
• HDTV Home Theater Ready
• Digital Gamma Correction
• Remote Control with “My Buttons”
• Horizontal Vertical Keystone Correction
• Horizontal and Vertical lens shift
• 1000:1 contrast ratio (using Active Iris)
• 32 dB (Whisper Mode)
• High performance filter
• My Screen / My Memory
• Whiteboard Mode
• Blackboard Mode
• Network Control, Maintenance & Security
• Security Bar
• Kensington Security Slot
• Progressive Scan
• 4 X 4 watt speakers with SRS WOW technology
• Audio Input / Output
• Input Source Naming

SUMMARY - Hitachi cpx605 4000 ANSI Lumens Lcd Video Projector:

The CP-X605 offers a brightness of 4,000 ANSI lumens and a 1000:1 contrast ratio. Additionally, it displays images via a 1.2x zoom lens that can enable projection on screens up to 300 inches and are outfitted with a bayonet lens that can support up to four optional lenses for specific application needs based on the size and environment of a room. The CP-X605 also features horizontal and vertical lens shift.

The CP-X605 can also be remotely controlled and maintained through a LAN network connection, providing the ability to network, control and maintain the projectors remotely. The network functionality also makes it easy to control multiple projectors in different rooms and to monitor for functions such as remaining lamp life. The CP-X605 also boasts four 4W built-in speakers, providing sufficient sound without the need for an external audio devices.

DETAILED SPECS - HITACHI CP-X605 LCD PROJECTOR:

• Liquid crystal panel structure 0.8” polysilicon active-matrix TFT x 3
• Number of pixels 786,432 pixels
• Resolution Video 540 TV lines
• RGB 1024 dots X 768 lines
• Colors 16.7 million colors
• Aspect ratio Native 4:3/16:9 compatible
• Lens F1.7 - 2.1 manual zoom 1:1.2
• Throw ratio (distance:width) 1.5 - 1.8:1
• Lamp 285W UHB
• Brightness 4,000 ANSI lumens
• Expected lamp life Approx. 2,000 hrs
• Contrast ratio 1,000:1 (using Active Iris)
• Speakers 4W x 4
• Power supply AC100-120V/AC220-240V 50/60Hz
• Power consumption (TBD)
• Operating temperature 5°C ~ 35°C (41°F ~ 95°F)
• Input signals RGB VGA, SVGA, XGA,SXGA, SXGA+, UXGA, MAC13”, MAC16”
• Composite video NTSC, NTSC4.43, PAL, SECAM, PAL-M, PAL-N
• Component video 480i, 576i, 480p, 720p, 1080i
• Acoustic noise level 39dB (29dB in whisper mode)
• H sync 15kHz ~ 106kHz
• V sync 50Hz ~ 120Hz
• Vertical keystone correction Digital keystone +/– 30°
• Horizontal Keystone Correction Digital keystone +/– 5°
• Approvals UL60950 / C-UL, FCC Part15, Class B, CE, EN60950
• Analog RGB input 15-pin D-sub connector x 2
• Analog RGB output 15-pin D-sub connector x 1
• Digital RGB input M1-D x 1
• Video input S-video Mini DIN 4-pin connector x 1
• Composite video RCA jack x 1
• Component video RCA jack x 3
• Audio Input Stereo mini jack x 2, RCA jack (L/R) x 2
• Output Stereo mini jack x 1
• Control terminals 9-pin D-sub connector x 1 (RS-232 control)
• M-1 (for USB remote mouse only)
• Others RJ-45 Port / 100 BASE-T
• Dimensions 16.5” x 5.5” x 12.6” (W x H x D)
• Weight 15.6 lbs.
• Supplied accessories Remote Control, Batteries (AA), RGB Cable, Power Cord, Multiple Language, Operator / Safety Manual, Security Label
• Lamp CPX605 lamp (DT00771)
• Remote Control HL02194
• Filter MU03642

Manufacturer Link: www.hitachi.us
