Pioneer VSX1020K 7.1-Channel 3-D Ready Home Theater A/V Receiver

Our Price $431.59 Including Shipping

Back to Home Theater Receivers Main

KEY POINTS - Pioneer vsx1020k 7.1-channel 3-d ready home theater a/v receiver:

Works with iPhone Certified - includes USB/Composite Video Cable, Free iControl AVR iPhone App (available for download on Apple's App Store)

Bluetooth Ready with Optional Pioneer AS-BT100 Bluetooth Adapter

HDMI (V.1.4 with 3D) - 6 Inputs (including 1 front input) / 1 Output

Anchor Bay Video Processing

Front USB connectivity provide iPod, touch, and iPhone users ultimate plug-and-play integration of their Apple products with their home theater

Simple connectivity to high-performance HD video, HD audio, portable, internet, wireless, and analog components

The latest version of HDMI inputs and outputs provide more HD connectivity options with "future-proof" 3-D capability

1080p video conversion and upscaling ensures the highest quality video from any source

SUMMARY - Pioneer vsx1020k 7.1-Channel 3-D Ready Home Theater A/V Receiver:

The Pioneer VSX-1020-K 7.1 Home Theater Receiver delivers amazing performance in an amazing package. With connectivity options for all your latest high definition home theater components and digital 1080p upscaling from any source, the Pioneer VSX1020K Receiver takes performance a step further with multi-zone support: choose either a 7.1-channel configuration, or create a second zone with 5.1 + 2 channels. And the Pioneer VSX-1020-K AV Receiver brings extensive connectivity for your digital media via Ethernet and a front USB input, and compatibility with Bluetooth sources (using the optional AS-BT100 adapter, sold separately). Plus, it's "Works with iPhone"-certified, so you can incorporate your favorite Apple products into your home theater easily. iControlAVR, a free iPhone app (downloaded separately), turns your iPhone or iPod Touch into the ultimate control center.

SPECIFICATIONS - Pioneer VSX-1020-K 7.1-Channel 3-D Ready Home Theatre A/V Receiver:

Power
Amplifier Design	Direct Energy
Channels	7.1
Power Output: Watts per Channel (20Hz-20kHz@8ohm)	80
Power Output: Watts per Channel (1kHz@8ohm)	110
Power Output: Watts per Channel (1kHz@6ohm)	125
Handheld and Internet
Made for iPod/iPhone Certified
Supported Apple Devices	5th gen Nano and above / iPhone, 3G, 3GS, 4
iControlAV Application
Supplied iPhone/iPod A/V Cable
iTunes Movie / TV / Video Playback
iTunes Album Art
iTunes Cover Art
YouTube Video Playback
Android Audio Playback via USB
Internet Radio	24 Preset
USB Formats	WAV, MP3, WMA, iPod Digital, JPEG
Decoders & Formats
Digital Core DSP Engine	Freescale
iPod Digital Audio
192K/24-Bit DACs	Wolfson
Dolby True HD
Dolby Digital Plus
Dolby Pro-Logic Iiz
DTS-HD®Master Audio
WMA9 Pro
XM HD Surround
Neural Surround
HDMI® SACD Transfer	Multi-Channel
Soundfield Calibration
Phase Control
Auto MCACC	Advanced
Manual MCACC
Standing Wave Control
EQ Bands	9
Symmetric EQ
MCACC Memory	6
PC Display
X-Curve
Distance Adjustment	1/2 inch
Polarity Check
Auto Subwoofer Crossover
Listening Modes
Auto Surround
Stream Direct
Advanced Surround	13 + 1
Wide Surround
Front Stage Surround Advance	Y (Focus / Wide)
Headphone Surround
Virtual Surround Back
Virtual Height
Audio Features
DSD to PCM Converter	Multi-Channel
PQLS Jitter Reduction	2 Channel
Auto Level Control	Multi-Channel
Dialog Enhancement
Advanced Sound Retriever	Multi-Channel
Sound Retriever AIR
Digital Noise Reduction
Midnight Listening
Loudness
Tone Control	2 Channel
Sound Delay (Lip Sync)	10 Frame
Speaker A/B	Speaker Configuration
Bi-Amp	Front Channel
Video Processing
3-D Ready
HDMI 36-bit Deep Color
HDMI x.v. Color
Video Converter to HDMI
HDMI to HDMI Video Scaler	1080p
Component Video Scaler	1080p
Composite Video Scaler	1080p
Pure Cinema I/P Converter
Video Parameter Adjustment	Standard Definition Sources Detail, Sharpness, Brightness, Contrast, Hue, Chroma
Connectivity
HDMI Input / Output	6 in / 1 out
Bluetooth Adapter Port	Yes, AS-BT100
Component Video Input / Output	2 In / 1 out
Composite A/V Input / Output	5 In / 1 out
iPhone / iPod	USB / Composite
USB Memory Input
Ethernet Input
SIRIUS Satellite Ready
Analog Audio Inputs / Output	2 in / 1 out
Digital Inputs / Output	4 In
Pre-Amp Output	0.1
Headphone Output
Front A/V Inputs	HDMI / USB / Composite
AM/FM Presets	63
Installation
On-Screen Display	GUI
iPhone / iPod Cable	Included
Multi-Room and Source Output	2 Zone A/V
IR Serial Remote In/Out	1 In / 1 out
Multi-Zone On-Screen Display	Zone 2
PC Control
FL Dimmer
Function Rename
Remote	Preset
Sleep Timer	30, 60, 90 min
Advanced MCACC USB Output
Versatile Speaker Configuration	Bi-Bmp / Zone 2 / B-Speaker / Surround Back / Front Height / Front Width
Construction
Front Panel	Glossy Black
Large Speaker Terminals	Front L & R, C, Surround L & R, Surround Back L & R
Warranty
Warranty	1 Year
Dimensions
W x H x D (inches)	16.55 x 6.23 x 14.93
Weight	22 lbs. 4 oz.

Manufacturer Page: www.pioneerelectronics.com

pioneer vsx1020k 7.1 home theater receiver vsx-1020-k

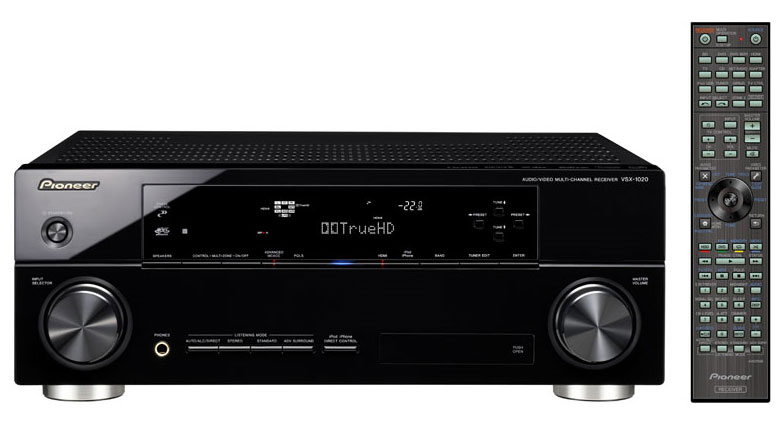

Pioneer VSX-1020-K 7.1 Home Theater Receiver

Click for Larger Image
