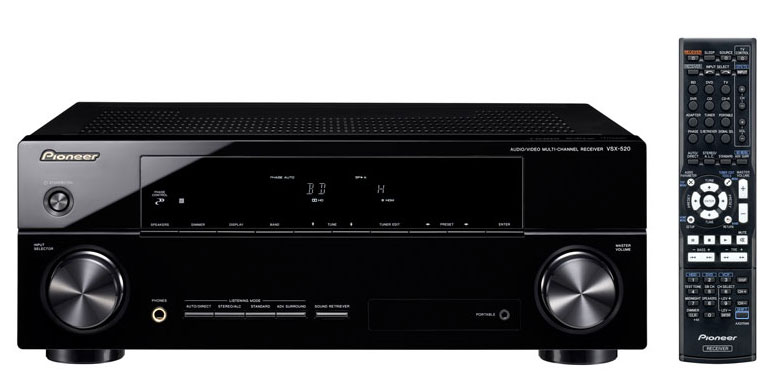

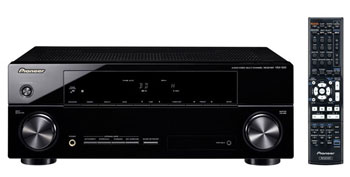

The Pioneer VSX-520-K Home Theater Receiver delivers amazing
performance in an elegant package at an amazing price. With
connectivity options for all your latest high definition home
theater components, the Pioneer VSX520K A/V Receiver takes it a step
further with support for the latest high-definition audio formats,
and support for your portable devices via a front panel mini-jack
input and compatibility with Bluetooth sources. The Pioneer
vsx-520-k receiver has the latest HDMI technology that will have you
ready for 3-D.
Texas Instruments Aureus DSP
192 kHz/24-bit DAC
Dolby TrueHD
Dolby Pro Logic IIz
Dolby Digital / EX
DTS-HD Master Audio
DTS 96/24 / DTS Neo:6/DTS Express
Multi PCM Playback (192 kHz) via HDMI
SACD Playback via HDMI (2 ch)
0.1 Step Audio Delay (Lip Sync) (Max 9 Frame)
Advanced Surround (Action, Drama, Entertainment Show, Advanced Game, Sports, Classical, Rock/Pop, Unplugged, Extended Stereo)
Auto Surround
Stream Direct
Phase Control (bass management ensures precision low frequency output)
Front Stage Surround Advance
Advanced Sound Retriever for enhanced PC and portable audio (2-ch)
Midnight Listening Mode
Auto Level Control (2 ch.)
Video Features
HDMI (v.1.4 with 3D), Deep Color, and x.v.Color
Convenience
30 Tuner Presets
SR Remote Control Unit
FL Dimmer (4 steps)
Sleep Timer (30, 60, 90 minutes)
Auto Audio Signal Select
LFE Attenuator
Connectivity
HDMI (3 inputs / 1 output)
Bluetooth Port (Compatible with optional Bluetooth adapter AS-BT100)
Front Mini Jack
3 Digital Inputs (1 Coaxial, 2 Optical)
Component Video Terminal (2 Inputs, 1 Output) Assignable
Audio/Video Inputs: 2A/4AV
Audio/Video Output: 1A/1AV + 1V
2.1 Preout (Subwoofer + Surround Back/Front Height Channels)
Large Speaker Terminals (FL/FR)
5.1-Channel A/V Receiver featuring HDMI (v.1.4 with 3D)
Dolby TrueHD & DTS-HD Master Audio and
Bluetooth Capability*
*Optional Bluetooth Adapter (AS-BT100) required.
Specifications
Power Requirements: AC 120 V/60 Hz
Power Consumption: 240 Watts
Standby Power Consumption: Less than 0.4 Watts
W x H x D: 16.55 x 6.23 x 13.71 inches
Weight: 19.6 lbs
