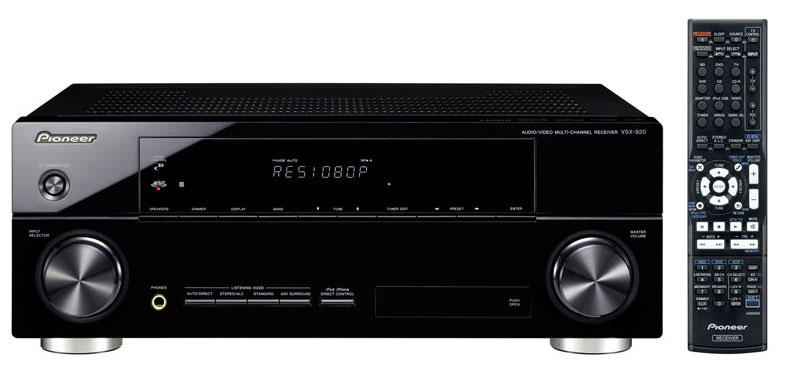

Pioneer VSX920K 7.1-Channel 3-D Ready Home Theater A/V Receiver

KEY POINTS - Pioneer vsx920k 7.1-channel 3-d ready home theater a/v receiver:


SUMMARY - Pioneer vsx920k 7.1-Channel 3-D Ready Home Theater A/V Receiver:

SPECIFICATIONS - Pioneer VSX-920-K 7.1-Channel 3-D Ready Home Theatre A/V Receiver:

Power
Amplifier Design	Direct Energy
Channels	7.1
Power Output: Watts per Channel (20Hz-20kHz@8ohm)	80
Power Output: Watts per Channel (1kHz@8ohm)	110
Power Output: Watts per Channel (1kHz@6ohm)	125
Handheld and Internet
Made for iPod/iPhone Certified
Supported Apple Devices	5th gen Nano and above / iPhone, 3G, 3GS, 4
Supplied iPhone/iPod A/V Cable
iTunes Movie / TV / Video Playback
YouTube Video Playback
Android Audio Playback via USB
USB Formats	WAV, MP3, WMA, iPod Digital, JPEG
Decoders & Formats
Digital Core DSP Engine	Texas Instruments Aureus
iPod Digital Audio
192K/24-Bit DACs	Yes
Dolby True HD
Dolby Digital Plus
Dolby Pro-Logic Iiz
DTS-HD®Master Audio
Neural Surround
HDMI® SACD Transfer	2 Channel
Soundfield Calibration
Phase Control
Auto MCACC	Yes
Manual MCACC
Standing Wave Control
EQ Bands	5
Symmetric EQ
MCACC Memory	1
Distance Adjustment	0.1 Ft
Listening Modes
Auto Surround
Stream Direct
Advanced Surround	8 + 1
Front Stage Surround Advance	Yes
Audio Features
DSD to PCM Converter	2 Channel
Auto Level Control	2 Channel
Advanced Sound Retriever	2 Channel
Midnight Listening
Loudness
Tone Control	2 Channel
Sound Delay (Lip Sync)	9 Frame
Speaker A/B	Speaker Configuration
Video Processing
3-D Ready
HDMI 36-bit Deep Color
HDMI x.v. Color
Video Converter to HDMI
HDMI to HDMI Video Scaler	1080p
Component Video Scaler	1080p
Composite Video Scaler	1080p
Connectivity
HDMI Input / Output	4 in / 1 out
Bluetooth Adapter Port	Yes, AS-BT100
Component Video Input / Output	2 In / 1 out
Composite A/V Input / Output	5 In / 1 out
iPhone / iPod	USB / Composite
USB Memory Input
SIRIUS Satellite Ready
Analog Audio Inputs / Output	2 in / 1 out
Digital Inputs / Output	3 in
Pre-Amp Output	0.1
Headphone Output
Front A/V Inputs	USB / Composite
AM/FM Presets	63
Installation
On-Screen Display	Analog OSD
iPhone / iPod Cable	Included
Multi-Room and Source Output	N/A
FL Dimmer
Remote	Preset
Sleep Timer	30, 60, 90 min
Versatile Speaker Configuration	Speaker A / B
Construction
Front Panel	Glossy Black
Large Speaker Terminals	Front L & R, C, Surround L & R, Surround Back L & R
Warranty
Warranty	1 Year
Dimensions
W x H x D (inches)	16.55 x 6.23 x 13.71
Weight	21 lbs. 4 oz.

Manufacturer Page: www.pioneerelectronics.com
