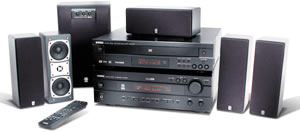

Click For Larger Image

Yamaha yht-700 home
theater in a box

Yahama YHT700 Home Theater in a Box Specifications:


HTR-5550 TECHNICAL SPECIFICATIONS
AUDIO SECTION
Minimum RMS Output Power per Channel	MAIN, 20Hz-20kHz, 0.06% THD, 8------75W + 75W CENTER, 20Hz-20kHz, 0.06% THD, 8-----75W REAR, 20Hz-20kHz, 0.06% THD, 8-----75W + 75W
Minimum RMS Output Power per Channel	MAIN,1kHz, 0.06% THD, 8----80W + 80W CENTER, 1kHz, 0.06% THD, 8-----80W REAR, 1kHz, 0.06% THD, 8-----80W + 80W
Dynamic Power per Channel	MAIN, 8/6/4/2 -----95/115/140/160W
Dynamic Headroom	8-----1.2dB
Damping Factor	MAIN L/R, 20Hz-20kHz, 8-----80 or more
Input Sensitivity/Impedance	CD, etc-----150mV/47k
Maximum Input Signal Level	CD, etc (Effect on)-----2.2V
Output Level/Impedance	OUT (REC)-----150mV/1.2k SUBWOOFER (EFFECT OFF, MAIN SP:SMALL) MONO-----4.0V/1.2k
Headphone Jack Rated Output/Impedance	CD, etc, (40mV, 8-----340mV/560
Frequency Response (10Hz-100kHz)	CD, etc, MAIN L/R-----+0/-3.0dB
Tone Control Characteristics
BASS:	Boost/Cut-----+/-10dB (50Hz) Turnover Frequency-----350Hz
TREBLE:	Boost/Cut-----+/-10dB (20kHz) Turnover Frequency-----3.5kHz
Total Harmonic Distortion (20Hz-20kHz)	CD, etc, to MAIN SP OUT L/R (1V)-----0.06%
Signal-to-Noise Ratio (IHF-A-Network)	CD, etc, Input Shorted (Effect off)-----100dB
Residual Noise (IHF-A-Network)	MAIN, SP OUT-----150uV
Channel Separation (Vol.-30dB, Effect off)	CD, etc, Input 5.1k Shorted, 1kHz-----60dB
VIDEO SECTION
Video Signal Type	NTSC
Composite Video Signal Level	1Vp-p/75
S Video Signal Level	Y-----1Vp-p/75 C-----0.286Vp-p/75
Component Signal Level	Y-----1Vp-p/75 Cb/Cr-----0.7V/75
Video Maximum Input Level	1.5Vp-p
Video Signal-to-Noise Ratio	50dB
Monitor Output Frequency Response	Composite Video Signal-----5Hz-10MHz, -3dB S-Video Signal-----5Hz-10MHz, -3dB Component Signal-----DC-30MHz, -3dB
TUNER SECTION (FM)
Tuning Range	87.5 to 107.9MHz
50dB Quieting Sensitivity (IHF, 75)	Mono (1kHz, 100% Mod)-----2.0uV (17.3dBf) Stereo (1kHz, 100% Mod)-----25uV (39.2dBf)
Selectivity (400kHz)	70db
Signal-to-Noise Ratio	Mono/Stereo (IHF)-----76/70dB
Harmonic Distortion	Mono/Stereo (1kHz)-----0.2./0.3%
Stereo Separation	1kHz-----45dB
Frequency Response	20Hz-15kHz-----+0.5/-2.0dB
Output Level	FM 100% Mod. 1kHz-----550mV
Antenna Input	75 unbalanced
TUNER SECTION (AM)
Tuning Range	530 to 1,710 kHz
Usable Sensitivity	300uV/m
Output Level	AM 30% Mod. 1kHz-----150mV
Signal-to-Noise Ratio	52dB
Antenna	Loop Antenna
Dimensions (W x H x D)	17 1/8" x 5 15/16" x 15 1/8"
Weight	22 lbs
DV-C6480 TECHNICAL SPECIFICATIONS
AUDIO SECTION
Frequency Response	DVD (48kHz Sampling)-----2Hz-22kHz DVD(96kHz Sampling)-----2Hz-44kHz DVD-AUDIO-----2Hz-88kHz CD, Video CD-----2Hz-20kHz
Harmonic Distortion + Noise (1kHz)	0.002%
Signal-to-Noise	115dB (Weighted)
Dynamic Range	DVD (48kHz, 24 bit)-----103dB CD, Video CD-----99dB
Output Voltage (1kHz, 0dB)	2.0V
VIDEO SECTION
Video Output	1V p-p (75)
S-Video Output	Y Output-----1Vp-p (75) C Output-----0.286Vp-p (75)
Component Video Output	Y Output-----1Vp-p (75) Pb/Pr Output-----0.7Vp-p (75)
Dimensions (W x H x D)	17 1/8" x 4 1/2" x 15 7/8"
Weight	13.7 lbs.
NS-AP480 TECH SPECS
MAIN/SURROUND
TYPE	Two way, bass reflex, magnetically shielded bookshelf type.
Driver Complement	Dual 3" high compliance woofer 1/2" balanced dome tweeter
Input Power	35 watts nominal, 110 watts music power
Frequency Response	150 Hz-22kHz +/- 3dB
Sensitivity	87dB/2.83v/1m
Impedance	6
Dimensions (W x H x D)	3 15/16" x 10 3/8" x 4 1/8"
Weight	3.7 lbs/ea
CENTER
Type	Two way, bass reflex, magnetically shielded bookshelf type.
Driver Complement	Dual 3" high compliance woofers 1/2" balanced dome tweeter
Input Power	35 watts nominal, 110 watts music power
Frequency Response	120 Hz-22kHz +/- 3dB
Sensitivity	87dB/2.83v/1m
Impedance	6
Dimensions (W x H x D)	10 3/8" x 3 15/16 x 4 1/8"
Weight	3.8 lbs/ea
YST-SW45 TECH SPECS
Driver	8" spruce cone driver
Amplifier	Built in 70 watt Yamaha Advanced Active Servo Technology
Frequency Range	30-200Hz
High-Cut Filter	Continuously variable from 50-150Hz
High Cut Slope	24dB/oct
Dimensions (W x H x D)	10" x 13 3/4" x 11 3/4"
Weight	18.2 lbs
