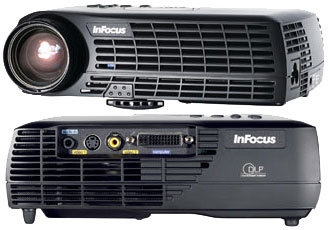

Infocus IN10 DLP Video Projector infocus in10

SUMMARY - Infocus in10 1800 ANSI Lumens Work Big ultra-portable projector:

The InFocus Work Big IN10 ultra-mobile projector is the technological equivalent of a pint-sized solar burst you can take anywhere. Built around innovative, compact optics and advanced DLP imaging technology the 1800-lumen IN10 will ensure your brightest idea really sees the light of day. No matter how large your presentation space, the IN10 will project a clean, vivid image while supporting both front and rear projection. Integrated XGA native resolution will flawlessly display the most media-rich presentations, including automatic adjustment for 16:9 video and true HD sources.

The IN10 weighs a scant 2.4 lbs and easily fits in your hand – half the weight and size of most other “mobile” projectors! Enabling you to travel light while maintaining full presentation functionality is what the IN10 is built for, so InFocus integrated key hardware features designed for ease of use. Such features include the onboard 1.3:1 zoom lens - an ideal hybrid for utilizing close quarters such as a trade-show booth, or taking presentations to a conference room. Also, the ultra-precise lens-mounted zoom and focus control enables you to adjust your image anywhere at anytime without fragile internal motors to fret over.

DETAILED SPECS - INFOCUS IN10 PORTABLE DLP PROJECTOR:

Display

Native Aspect Ratio:

4x3

Supported Aspect Ratio:

4:3, 16:9

Brightness: (max ANSI lumens)

Whisper: Not Available
High Bright: 1800 max ANSI lumens max ANSI lumens

Contrast Ratio:

1100 : 1 Full On/Full Off

Display Technology:

DLP by Texas Instruments: 0.7" XGA DMD DDR

Data Compatibility:

VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024)

Video Compatibility:

Full NTSC, PAL, SECAM, 480p, 576p, 720p, 1080i

Color Wheel (DLP Only):

4-segment, 2-speed

Native Resolution:

XGA

Projector Placement:

Rear Projection, Front Projection

SMPTE Brightness:

Not Available

Lamp Wattage:

Whisper: Not Available
High Bright: 120 Watts

Lamp Life:

Whisper: Not Available
High Bright: 4000 Hours

Minimum Image Size:

2.7 ft (0.82 m)

Maximum Image Size:

22.2 ft (6.77 m)

Standard Lens Zoom:

1.25 : 1

Standard Lens Throw Ratio:

1.85 - 2.35:1 (Distance/Width)

Standard Lens Image Offset Ratio:

110% (+/- 5%)

Standard Lens Projection Distance:

5 - 32.3 ft (1.52 - 9.85 m)

Digital Keystone Correction (Vertical):

+/- 15°

Digital Keystone Correction (Horizontal):

Not Available

Lens Shift:

Not Available

Inputs and Outputs

DVI:

Number of Inputs: 1
Requires optional M1 to DVI cable

M1:

Number of Inputs: 1
Accepts VESA and DVI with M1 cable

HDMI:

Not Available

BNC:

Not Available

Component (RCA):

Number of Inputs: 1
Requires M1 to Component adapter.

VESA (HD15):

Number of Inputs: 1
Requires M1 to VESA cable

S-Video:

Number of Inputs: 1
4-pin mini-DIN

Composite (RCA):

Number of Inputs: 1
Video only

Standard Definition TV:

Composite RCA, S-Video

Enhanced Definition TV:

M1-DA

High Definition TV:

M1-DA

Computer:

M1-DA

HDCP Support:

Stereo RCA Jacks Inputs:

Stereo 3.5 mm Mini-jack Inputs:

Yes

12v trigger for motorized screens (3.5 mm mini-jack):

Projector Control:

Projector Keypad, Remote

Speakers:

1-Watt speaker

Monitor Output:

Audio Output:

Not Available

Compatibility

Data Compatibility:

VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024)

H-Sync Range:

15 - 100kHz

V-Sync Range:

43.5 - 130Hz

Video Compatibility:

Full NTSC, PAL, SECAM, 480p, 576p, 720p, 1080i

General

Audible Noise:

32 dB

Actual Dimensions:

Height: 2.5 in (6.35 cm)
Length: 6.1 in (15.49 cm)
Width: 7.8 in (19.81 cm)

Actual Weight:

2.4 lbs (1.09 kg)

Shipping Weight:

7 lbs (3.18 kg)

Projector Warranty:

2 years

Lamp Warranty:

6 months

Accessories Warranty:

90 days

Operating temperature:
(at sea level)

41 - 104° F (5 - 40° C)

Maximum Altitude Supported:

10000 ft (3048 m)

Typical Power Consumption:

155 Watts

Maximum Power Consumption:

Not Available

Power Supply:

100 - 240 Volts at 50 - 60 Hz

Menu Languages:

English, French, German, Italian, Japanese, Korean, Norwegian, Portuguese, Simplified Chinese, Spanish, Traditional Chinese

Approvals:

FCC A (US/Canada), CCC (China), IRAM (Argentina), GOST (Russia), UL & cUL (US/Canada), TUV GS (Germany), NOM (Mexico), C-Tick (Australia)

Manufacturer Link: www.infocus.com
