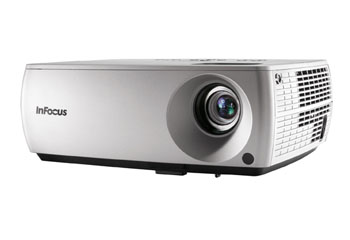

Infocus IN2104 2500 ANSI Lumens DLP Video Projector

Item Currently Unavailable

Return to Infocus Video Projector Main

KEY POINTS - IN2104 Infocus 2500 ANSI Lumens DLP Video Projector:

• Native Resolution 1024 x 768
• Brightness 2500 ANSI Lumens
• Contrast Ratio 2000:1
• Native Aspect 4:3

SUMMARY - Infocus in2104 2500 ANSI Lumens DLP Video Projector:

The Work Big IN2104 is made for heavy-use with moderate-high resolution sources, featuring XGA-native resolution of 1024x768. This model is ideal for users who typically connect to newer 4:3 laptop and desktop computer sources, document cameras and digital scopes to create collaborative work environments. The IN2104 will perform at a higher level than the IN2102 because every pixel on-screen is reflected from an individual mirror in the chipset, providing a larger, clearer projected image. The InFocus IN2104 DLP projector with BrilliantColor technology and 5 segment color wheel displays realistic colors and brighter images that last.


DETAILED SPECS - INFOCUS IN2104 2500 ANSI LUMENS DLP VIDEO PROJECTOR:

Display
• Native Aspect Ratio: 4x3
• Supported Aspect Ratio: 16:9, 4:3, 5:4
• Brightness: (max ANSI lumens) Whisper: 1800 max ANSI lumens
• High Bright: 2500 max ANSI lumens max ANSI lumens
• Contrast Ratio: 2000 : 1 Full On/Full Off
• Display Technology: DLP by Texas Instruments: 0.55" SVGA LVDS DDP2230 with Brilliant Color
• Data Compatibility: VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024)
• Video Compatibility: Full NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i
• Color Wheel (DLP Only): 5-segment
• Native Resolution: XGA
• Projector Placement: Ceiling Projection, Front Projection, Rear Projection
• Lamp Wattage: Whisper: 170 Watts
• High Bright: 200 Watts
• Lamp Life: Whisper: 3000 Hours
• High Bright: 2500 Hours
• Minimum Image Size: 2.00 ft (0.61 m)
• Maximum Image Size: 19.98 ft (6.09 m)
• Standard Lens Zoom: 1.1 : 1
• Standard Lens Throw Ratio: 1.97 - 2.16 (Distance/Width)
• Standard Lens Image Offset Ratio: 115%
• Standard Lens Projection Distance: 3.93 - 32.8 ft
• Digital Keystone Correction (Vertical): +20°/-20°
• Digital Keystone Correction (Horizontal): Not Available


Inputs and Outputs
• Component (RCA): Number of Inputs: 2
• requires optional VGA to Component adapter.
• VESA (HD15): Number of Inputs: 2
• 15-pin VGA
• S-Video: Number of Inputs: 1
• 4-pin mini-DIN
• Composite (RCA): Number of Inputs: 1
• Standard Definition TV: Composite RCA, S-Video
• Enhanced Definition TV: VGA
• High Definition TV: VGA
• Computer: VGA
• HDCP Support: Yes
• Stereo 3.5 mm Mini-jack Inputs: Yes
• 12v trigger for motorized screens (3.5 mm mini-jack): No
• Projector Control: Projector Keypad, Remote, USB, RS-232
• Speakers: 2.0 Watt mono speaker
• Monitor Output: Yes
• Audio Output: 3.5mm mini-jack output for computer and video


Compatibility
• Data Compatibility: VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024)
• H-Sync Range: 31 - 79kHz
• V-Sync Range: 50 - 85Hz
• Video Compatibility: Full NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i


General
• Audible Noise: 35 dB
• Actual Dimensions: Height: 3.9 in (9.91 cm)
• Length: 9 in (22.86 cm)
• Width: 11.7 in (29.72 cm)
• Actual Weight: 6.9 lbs (3.13 kg)
• Shipping Dimensions: Height: 9.4 in (23.88 cm)
• Length: 13 in (33.02 cm)
• Width: 16.5 in (41.91 cm)
• Shipping Weight: 11.6 lbs (5.26 kg)
• Projector Warranty: 2 years
• Lamp Warranty: 6 months
• Accessories Warranty: 90 days
• Operating temperature: (at sea level) 41 - 88° F
• Maximum Altitude Supported: 10000 ft (3048 m)
• Typical Power Consumption: 220 Watts
• Maximum Power Consumption: 250 Watts
• Power Supply: 100 - 240 Volts at 50 - 60 Hz
• Menu Languages: English, French, German, Italian, Norwegian, Portuguese, Simplified Chinese, Spanish, Korean, Russian, Traditional Chinese
• Approvals: UL and c-UL (US/Canada), FCC-A (US/Canada), CE (CE member countries), GOST (Russia), TUV GS (Germany), CCC (China), IRAM (Argentina), NOM (Mexico), C-Tick (Australia), MIC & eK (South Korea), PSB (Singapore)

Manufacturer Link: www.infocus.com
