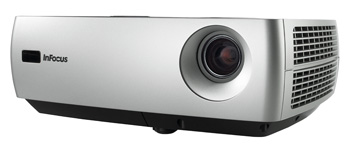

Infocus Work Big IN26 1700 ANSI Lumens Portable XGA DLP Video Projector

Display

Native Aspect Ratio:

4x3

Supported Aspect Ratio:

16:9, 4:3

Brightness:
(Represented as Max Lumens)

Whisper: Not Available
High Bright: 1700 Lumens

Contrast Ratio:

2000 : 1 Full On/Full Off

Display Technology:

DLP by Texas Instruments: 0.55" XGA DDR DMD

Data Compatibility:

640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1400 x 1050

Video Compatibility:

Full NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i

Color Wheel (DLP Only):

4-segment, 2-speed

Native Resolution:

XGA

Projector Placement:

Ceiling Projection, Front Projection, Rear Projection

SMPTE Brightness:

Not Available

Lamp Wattage:

Whisper: 160 Watts
High Bright: 200 Watts

Lamp Life:

Whisper: 3000 Hours
High Bright: 3000 Hours

Minimum Image Size:

2.8 ft

Maximum Image Size:

20.7 ft

Standard Lens Zoom:

1.1:1 : 1

Standard Lens Throw Ratio:

1.94 - 2.13 (Distance/Width)

Standard Lens Image Offset Ratio:

112.2% (4:3)

Standard Lens Projection Distance:

4.9 - 32.8 ft

Digital Keystone Correction (Vertical):

30°

Digital Keystone Correction (Horizontal):

Not Available

Motorized Lens Shift:

No

Inputs and Outputs

DVI:

Not Available

M1:

Not Available

HDMI:

Not Available

BNC:

Not Available

Component (RCA):

Number of Inputs: 1
Progressive only supported. Requires VESA to Component adapter (SP-VESA-ADPT)

VESA (HD15):

Number of Inputs: 1
15-pin analog

S-Video:

Number of Inputs: 1
4-pin DIN

Composite (RCA):

Number of Inputs: 1

Standard Definition TV:

Inputs: Composite RCA, S-Video, Component RCA

Enhanced Definition TV:

Inputs: Component RCA, VESA

High Definition TV:

Inputs: Component RCA, VESA

Computer:

Inputs: VESA

HDCP Support:

No

Stereo RCA Jacks Inputs:

Yes

Stereo 3.5 mm Mini-jack Inputs:

No

12v trigger for motorized screens (3.5 mm mini-jack):

No

ProjectorNet RJ45 Port:

No

Projector Control:

Projector Keypad, Remote

Speakers:

1.0 Watt mono speaker

Audio Output:

3.5mm mini-jack

Compatibility

Data Compatibility:

640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1400 x 1050

H-Sync Range:

15.8 - 85kHz

V-Sync Range:

50 - 85Hz

Video Compatibility:

Full NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i

General

Actual Dimensions:

Height: 3.97 in
Length: 9.45 in
Width: 11.97 in

Actual Weight:

5.95 lbs

Shipping Dimensions:

Height: 13.3 in
Length: 17.9 in
Width: 8 in

Shipping Weight:

9.7 lbs

Projector Warranty:

1 Year

Lamp Warranty:

90 Days

Accessories Warranty:

90 Days

Operating temperature:
(at sea level)

41 - 104° F

Maximum Altitude Supported:

10000 ft

Typical Power Consumption:

250 Watts

Maximum Power Consumption:

300 Watts

Power Supply:

100 - 240 Volts at 50 - 60 Hz

Menu Languages:

English, French, German, Italian, Portuguese, Russian, Simplified Chinese, Spanish

Approvals:

UL and c-UL (US/Canada), FCC-B (US/Canada), GOST (Russia), TUV GS (Germany), CCC (China), IRAM (Argentina), NOM (Mexico) C-Tick (Australia)
