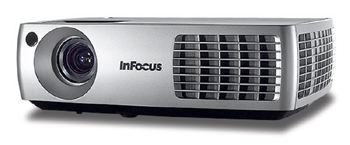

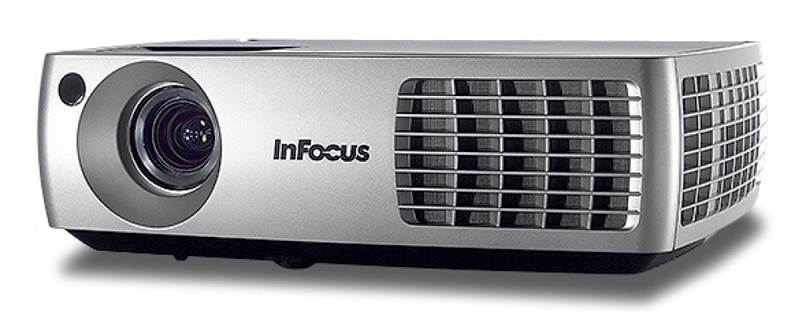

InFocus IN3102 DLP Projector Presentation Projector infocus

KEY POINTS - IN3102 Infocus 3000 ANSI Lumens Digital Multimedia DLP Projector:

3000 ANSI lumens and 2000:1 contrast ratio

Native XGA (1024 x 768) resolution

Five segment color wheel

HDMI 1.3 (Deep Color) and VGA inputs

DLP powered featuring BrilliantColor technology for sharp, vivid images

DisplayLink™ technology transmits audio and video content over USB

Up to 4000 hours lamp life

Warranty: 2 years - Filter Free Design and 24 hour operation compatible, 5 year DLP imager warranty and 6 month lamp warranty

DETAILED SPECS - INFOCUS IN3102 3000 ANSI LUMENS DIGITAL MULTIMEDIA DLP PROJECTOR:

Display

Native Aspect Ratio:

4x3

Supported Aspect Ratio:

16:9, 4:3, 5:4

Brightness: (max ANSI lumens)

High Bright: 3000 Lumens
Eco Mode: 2400 Lumens

Contrast Ratio:

2000 : 1 Full On/Full Off

Display Technology:

DLP by Texas Instruments: 0.55" XGA DMD with Brilliant Color

Data Compatibility:

VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), SXGA+ (1400x1050), UXGA (1600x1200)

Video Compatibility:

Full NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i, 1080p/60

Color Wheel (DLP Only):

5-segment

Native Resolution:

XGA

Projector Placement:

Front Projection, Rear Projection, Ceiling Projection

SMPTE Brightness:

Not Available

Lamp Wattage:

High Bright: 230 Watts
Eco Mode: Not Available

Lamp Life:

High Bright: 3000 Hours
Eco Mode: 4000 Hours

Minimum Image Size:

3.25 ft (0.99 m)

Maximum Image Size:

16.66 ft (5.08 m)

Standard Lens Zoom:

1.1 : 1

Standard Lens Throw Ratio:

1.95 - 2.15 (Distance/Width)

Standard Lens Image Offset Ratio:

115%

Standard Lens Projection Distance:

6.39 - 36.15 ft (1.95 - 11.02 m)

Digital Keystone Correction (Vertical):

+30°/-30°

Digital Keystone Correction (Horizontal):

Not Available

Lens Shift:

Not Available

Inputs and Outputs

DVI:

Not Available

M1:

Not Available

HDMI:

Number of Inputs: 1
HDMI v1.3, Deep Color

BNC:

Not Available

Component (RCA):

Number of Inputs: 1
requires optional VGA to Component adapter.

VESA (HD15):

Number of Inputs: 2
15-pin VGA

S-Video:

Number of Inputs: 1
4-pin mini-DIN

Composite (RCA):

Number of Inputs: 1

Standard Definition TV:

Composite RCA, S-Video, HDMI

Enhanced Definition TV:

VGA, HDMI

High Definition TV:

VGA, HDMI

Computer:

VGA, USB (DisplayLink), HDMI

HDCP Support:

Yes

Stereo RCA Jacks Inputs:

Yes

Stereo 3.5 mm Mini-jack Inputs:

Yes

12v trigger for motorized screens (3.5 mm mini-jack):

Projector Control:

Projector Keypad, Remote, USB, RS-232

Speakers:

(2) 3 Watt stereo speakers

Monitor Output:

Yes

Audio Output:

3.5mm Stereo Mini-jack

Compatibility

Data Compatibility:

VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), SXGA+ (1400x1050), UXGA (1600x1200)

H-Sync Range:

15.75 - 100kHz

V-Sync Range:

50 - 85Hz

Video Compatibility:

Full NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i, 1080p/60

General

Audible Noise:

33 dB

Actual Dimensions:

Height: 3.7 in (9.4 cm)
Length: 9.8 in (24.89 cm)
Width: 12.4 in (31.5 cm)

Actual Weight:

7 lbs (3.18 kg)

Shipping Dimensions:

Height: 13.1 in (33.27 cm)
Length: 8.8 in (22.35 cm)
Width: 18.8 in (47.75 cm)

Shipping Weight:

14.3 lbs (6.49 kg)

Projector Warranty:

2 years - Filter Free Design and 24 hour operation compatible, 5 year DLP imager warranty

Lamp Warranty:

6 months

Accessories Warranty:

90 days

Operating temperature:
(at sea level)

41 - 95° F (5 - 35° C)

Maximum Altitude Supported:

10000 ft (3048 m)

Typical Power Consumption:

228 Watts

Maximum Power Consumption:

288 Watts

Manufacturer Link: www.infocus.com
