Work your magic with the easy integration and amazing images of the InFocus Work Big IN32. Made for the meeting room, the IN32 turns business presentations into blockbuster events – without breaking the bank.
Multiple inputs on the IN32 allow seamless integration into your existing IT infrastructure, making your job that much easier. Thanks to its compact design and mobility, the IN32 also provides a powerful presentation in any situation. So whether you’re in the boardroom or the break room, the IN32 will bring your ideas to life.
DETAILED SPECS - INFOCUS

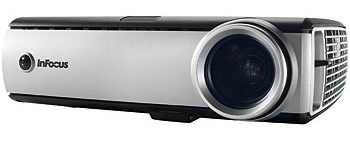

WORK BIG IN32 2000 ANSI LUMENS PORTABLE DLP VIDEO PROJECTOR:
Native Aspect Ratio: 4x3
Supported Aspect Ratio: 16:9, 4:3, 5:4
Brightness: (max ANSI lumens) Whisper: Not Available High Bright: 2000 max ANSI lumens
Contrast Ratio: 1000 : 1 Full On/Full Off
Display Technology: DLP® by Texas Instruments™: 0.7" XGA DDR DMD
Data Compatibility: 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1400 x 1050
Video Compatibility: Full NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i
Color Wheel (DLP Only): 4-segment, 2-speed
Native Resolution: XGA
Projector Placement: Ceiling Projection, Front Projection, Rear Projection
SMPTE Brightness: Not Available
Lamp Wattage: Whisper: Not Available
High Bright: 200 Watts
Lamp Life: Whisper: Not Available
High Bright: 2000 Hours
Minimum Image Size: 2.7 ft
Maximum Image Size: 22 ft
Standard Lens Zoom: 1.2 : 1
Standard Lens Throw Ratio: 1.83 - 2.27 (Distance/Width)
Standard Lens Image Offset Ratio: 115.0% (4:3)
Standard Lens Projection Distance: 4.9 - 32.8 ft
Digital Keystone Correction (Vertical): +30°/-25°
Digital Keystone Correction (Horizontal): Not Available
Lens Shift: Not Available
DVI: Number of Inputs: 1
Requires M1 to DVI cable (SP-DVI-D)
M1: Number of Inputs: 1
Accepts digital and analog computer and video signals.
Component (RCA): Number of Inputs: 1
480i/480p requires VESA to Component cable or M1 to Component cable.
VESA (HD15): Number of Inputs: 1
15-pin analog
S-Video: Number of Inputs: 1
4-pin mini-DIN
Composite (RCA): Number of Inputs: 1
Standard Definition TV: Inputs: Composite RCA, S-Video
Enhanced Definition TV: Inputs: VESA, M1-DA
High Definition TV: Inputs: VESA, M1-DA
Computer: Inputs: VESA, M1-DA
Stereo 3.5 mm Mini-jack Inputs: Yes
Projector Control: Projector Keypad, Remote
Speakers: 3.0 Watt mono speaker
Monitor Output: Yes
Audio Output: 3.5mm mini-jack for computer and video
Data Compatibility: 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1400 x 1050
H-Sync Range: 15.6 - 85kHz
V-Sync Range: 48 - 85Hz
Video Compatibility: Full NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i
Audible Noise: 35 dB
Actual Dimensions: Height: 2.9 in
Length: 8.6 in
Width: 10.4 in
Actual Weight: 5.2 lbs
Projector Warranty: 2 Year
Lamp Warranty: 6 months
Accessories Warranty: 90 Days
Power Supply: 100 - 240 Volts at 50 - 60 Hz
Approvals: UL and c-UL (US/Canada), FCC-A (US/Canada), CE (CE member countries), GOST (Russia), TUV GS (Germany), CCC (China), IRAM (Argentina), NOM (Mexico), C-Tick (Australia)
