3000 ANSI lumens brightness (2400 in whisper mode)
1000:1 contrast ratio
DVI input via M1 adapter cable
Weighs only 5 lbs

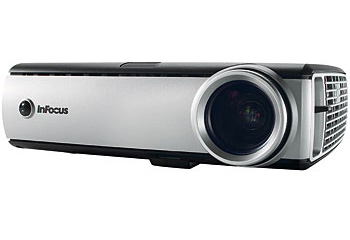

SUMMARY - Infocus Work Big in36 3000 ANSI Lumens
Portable DLP Video Projector:
You’ve prepared everything to ensure the big presentation goes well – your projector should be just as capable. InFocus’ new Work Big IN36 is the flagship meeting room projector – designed to help you present with power and ease. Featuring 3000 lumens, this projector is bright enough to use with the lights on or the windows open, leaving you time to rehearse your pitch and not fuss with the blinds.
All of this power comes with great flexibility as well, such as digital keystone correction, RGB color-adjustment, an impressive 1000:1 contrast ratio and multiple installation options. With the IN36’s connectivity options, including a serial interface connection, multiple computer inputs, S-Video and more, you’ll never have to wonder if your meeting room will be compatible with your projector. Simply plug in the IN36 and you’ll be integrated into your existing IT infrastructure.
DETAILED SPECS - INFOCUS
IN36 DLP PROJECTOR:
Display
Native
Aspect Ratio:
4x3
Supported
Aspect Ratio:
16:9, 4:3.
5:4
Brightness:
(Represented as Max Lumens)
Whisper:
2400 max ANSI lumens
High Bright: 3000 max ANSI lumens
Contrast
Ratio:
1000 :
1 Full On/Full Off
Display
Technology:
DLP by
Texas Instruments: 0.7" XGA DDR DMD
Data
Compatibility:
640 x 480,
800 x 600, 1024 x 768, 1280 x 1024, 1400 x 1050
Video
Compatibility:
Full NTSC,
PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i
Color Wheel
(DLP Only):
4-segment,
2-speed
Native
Resolution:
XGA
Projector
Placement:
Ceiling
Projection, Front Projection, Rear Projection
SMPTE
Brightness:
Not
Available
Lamp
Wattage:
Whisper:
Not Available
High Bright: 200 Watts
Lamp Life:
Whisper:
Not Available
High Bright: 2000 Hours
Minimum
Image Size:
2.7 ft
Maximum
Image Size:
22 ft
Standard
Lens Zoom:
1.2:1
Standard
Lens Throw Ratio:
1.83 - 2.27
(Distance/Width)
Standard
Lens Image Offset Ratio:
115%
(4:3)
Standard
Lens Projection Distance:
4.9 - 32.8
ft
Digital
Keystone Correction (Vertical):
+30°/-25°
Digital
Keystone Correction (Horizontal):
Not
Available
Lens Shift:
Not
Available
Inputs
and Outputs
DVI:
Number of
Inputs: 1
Requires M1 to DVI cable
(SP-DVI-D)
M1:
Number of
Inputs: 1 Supports analog and digital
HDMI:
Not
Available
BNC:
Not
Available
Component
(RCA):
Number of
Inputs: 1 480i/480p requires VGA to Component cable or M1 to
Component cable
VGA
(HD15):
Number of
Inputs: 1
15-pin analog
S-Video:
Number of
Inputs: 1
4-pin DIN
Composite
(RCA):
Number of
Inputs: 1
Standard
Definition TV:
Inputs:
Composite RCA, S-Video
Enhanced
Definition TV:
Inputs:
VGA, M1-DA
High
Definition TV:
Inputs:
VGA, M1-DA
Computer:
Inputs:
VGA, M1-DA
HDCP
Support:
No
Stereo RCA
Jacks Inputs:
Yes
Stereo 3.5
mm Mini-jack Inputs:
No
12v trigger
for motorized screens (3.5 mm mini-jack):
No
ProjectorNet RJ45 Port:
No
Projector
Control:
Projector
Keypad, Remote
Speakers:
3.0 Watt
mono speaker
Monitor Output:
Yes
Audio
Output:
3.5mm
mini-jack for computer and video
Compatibility
Data
Compatibility:
640 x 480,
800 x 600, 1024 x 768, 1280 x 1024, 1400 x 1050
H-Sync
Range:
15.8 -
85kHz
V-Sync
Range:
48 - 85Hz
Video
Compatibility:
Full NTSC,
PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i
