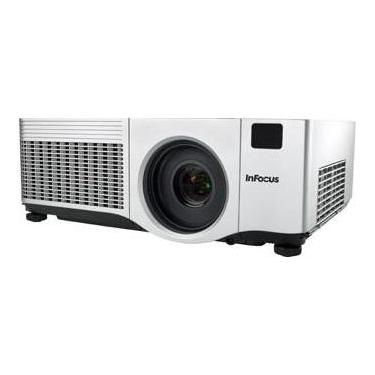

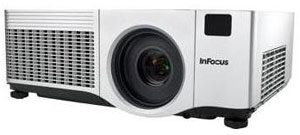

InFocus IN5102 XGA LCD Fixed Video Projector in5102

Native Aspect Ratio:

4x3

Supported Aspect Ratio:

16:9, 4:3, 5:4

Brightness: (max ANSI lumens)

High Bright: 4000 Lumens
Eco Mode: 3200 Lumens

Contrast Ratio:

1000 : 1 Full On/Full Off

Display Technology:

LCD: 0.8" PolySilicon TFT (x3)

Data Compatibility:

VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), SXGA+ (1400x1050), UXGA (1600x1200)

Video Compatibility:

Full NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i, 1080p/60

Color Wheel (DLP Only):

N/A

Native Resolution:

XGA

Projector Placement:

Front Projection, Rear Projection, Ceiling Projection

SMPTE Brightness:

Not Available

Lamp Wattage:

High Bright: 275 Watts
Eco Mode: 220 Watts

Lamp Life:

High Bright: 2000 Hours
Eco Mode: 3000 Hours

Minimum Image Size:

Not Available

Maximum Image Size:

Not Available

Standard Lens Zoom:

1.2 : 1

Standard Lens Throw Ratio:

1.5 - 1.8 (Distance/Width)

Standard Lens Image Offset Ratio:

Vertical 9:1 to 1:1, Horizontal 6:4 to 4:6

Standard Lens Projection Distance:

3.75 - 43.75 ft (1.14 - 13.34 m)

Digital Keystone Correction (Vertical):

+40°/-40°

Digital Keystone Correction (Horizontal):

+20°/-20°

Lens Shift:

Manual

Inputs and Outputs

DVI:

Not Available

M1:

Not Available

HDMI:

Number of Inputs: 1

BNC:

Number of Inputs: 1
RGBHV

Component (RCA):

Number of Inputs: 1
second conponent input available with optional VGA to Component adapter.

VESA (HD15):

Number of Inputs: 1
15-pin VGA

S-Video:

Number of Inputs: 1
4-pin mini-DIN

Composite (RCA):

Number of Inputs: 1

Standard Definition TV:

Composite RCA, S-Video, HDMI

Enhanced Definition TV:

VGA, HDMI, Component RCA, BNC

High Definition TV:

VGA, HDMI, BNC, Component RCA

Computer:

VGA, HDMI, BNC

HDCP Support:

Yes

Stereo RCA Jacks Inputs:

Yes

Stereo 3.5 mm Mini-jack Inputs:

Yes

12v trigger for motorized screens (3.5 mm mini-jack):

Projector Control:

Projector Keypad, Remote, USB, RS-232, 2.5mm Wired Remote, RJ45

Speakers:

(2) 4 Watt stereo speakers

Monitor Output:

Yes

Audio Output:

3.5mm Stereo Mini-jack

Compatibility

Data Compatibility:

VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), SXGA+ (1400x1050), UXGA (1600x1200)

H-Sync Range:

15 - 91kHz

V-Sync Range:

50 - 120Hz

Video Compatibility:

Full NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i, 1080p/60

General

Audible Noise:

32 dB

Actual Dimensions:

Height: 5.11 in (12.98 cm)
Length: 12.4 in (31.5 cm)
Width: 16.53 in (41.99 cm)

Actual Weight:

15.7 lbs (7.12 kg)

Shipping Dimensions:

Height: 9.17 in (23.29 cm)
Length: 18.5 in (46.99 cm)
Width: 21.6 in (54.86 cm)

Shipping Weight:

23.2 lbs (10.52 kg)

Projector Warranty:

2 years

Lamp Warranty:

6 months

Accessories Warranty:

90 days

Operating temperature:
(at sea level)

50 - 95° F (10 - 35° C)

Maximum Altitude Supported:

7500 ft (2286 m)

Typical Power Consumption:

400 Watts

Maximum Power Consumption:

420 Watts

Power Supply:

100 - 240 Volts at 50 - 60 Hz

Menu Languages:

English, French, German, Italian, Korean, Swedish, Portuguese, Russian, Spanish, Traditional Chinese, Simplified Chinese, Norwegian, Finnish, Danish, Polish, Turkish, Dutch

Approvals:

UL and c-UL (US/Canada), FCC (US/Canada), CE (CE member countries), GOST (Russia), TUV GS (Germany), CCC (China), IRAM (Argentina), NOM (Mexico), PSB (Singapore), RoHS
