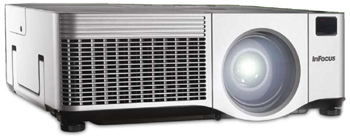

Infocus IN5106 5000 ANSI Lumens Digital Multimedia 3LCD Projector

Item Currently Unavailable

Return to InFocus Video Projector Main


KEY POINTS - IN5106 Infocus 5000 ANSI Lumens Digital Multimedia 3LCD Projector:

• 5000 ANSI lumens and 1000:1 contrast ratio
• 3LCD with native XGA (1024 x 768) resolution
• HDMI 1.3, Component, and VGA inputs
• Supports 1080p video and up to UXGA resolution (1600 x 1200)
• Offers (2) x 4.0 watt stereo speakers and a full-featured remote with laser and wired control functionality
• Equipped with RS232 and embedded network control

• Up to 3000 hours lamp life
• Warranty: 2 years and 6 month lamp warranty

SUMMARY - Infocus in5106 5000 ANSI Lumens Digital Multimedia 3LCD Projector:

DETAILED SPECS - INFOCUS IN5106 5000 ANSI LUMENS DIGITAL MULTIMEDIA 3LCD PROJECTOR:

Display
Native Aspect Ratio:	4x3
Supported Aspect Ratio:	16:9, 4:3, 5:4
Brightness: (max ANSI lumens)	High Bright: 5000 Lumens Eco Mode: 4000 Lumens
Contrast Ratio:	1000 : 1 Full On/Full Off
Display Technology:	LCD: 0.8" PolySilicon TFT (x3) MLA (Micro Lens Array)
Data Compatibility:	VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), SXGA+ (1400x1050), UXGA (1600x1200)
Video Compatibility:	Full NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i, 1080p/60
Color Wheel (DLP Only):	N/A
Native Resolution:	XGA
Projector Placement:	Front Projection, Rear Projection, Ceiling Projection
SMPTE Brightness:	Not Available
Lamp Wattage:	High Bright: 275 Watts Eco Mode: 220 Watts
Lamp Life:	High Bright: 2000 Hours Eco Mode: 3000 Hours
Minimum Image Size:	2.5 ft (0.76 m)
Maximum Image Size:	29.2 ft (8.9 m)
Standard Lens Zoom:	1.2 : 1
Standard Lens Throw Ratio:	1.5 - 1.8 (Distance/Width)
Standard Lens Image Offset Ratio:	Vertical 9:1 to 1:1, Horizontal 6:4 to 4:6
Standard Lens Projection Distance:	3.75 - 43.75 ft (1.14 - 13.34 m)
Digital Keystone Correction (Vertical):	+40°/-40°
Digital Keystone Correction (Horizontal):	+20°/-20°
Lens Shift:	Motorized
Inputs and Outputs
DVI:	Not Available
M1:	Not Available
HDMI:	Number of Inputs: 1
BNC:	Number of Inputs: 1 RGBHV
Component (RCA):	Number of Inputs: 1 second conponent input available with optional VGA to Component adapter.
VESA (HD15):	Number of Inputs: 1 15-pin VGA
S-Video:	Number of Inputs: 1 4-pin mini-DIN
Composite (RCA):	Number of Inputs: 1
Standard Definition TV:	Composite RCA, S-Video, HDMI
Enhanced Definition TV:	VGA, HDMI, Component RCA, BNC
High Definition TV:	VGA, HDMI, BNC, Component RCA
Computer:	VGA, HDMI, BNC
HDCP Support:	Yes
Stereo RCA Jacks Inputs:	Yes
Stereo 3.5 mm Mini-jack Inputs:	Yes
12v trigger for motorized screens (3.5 mm mini-jack):	No
Projector Control:	Projector Keypad, Remote, USB, RS-232, 2.5mm Wired Remote, RJ45
Speakers:	(2) 4 Watt stereo speakers
Monitor Output:	Yes
Audio Output:	3.5mm Stereo Mini-jack
Compatibility
Data Compatibility:	VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), SXGA+ (1400x1050), UXGA (1600x1200)
H-Sync Range:	15 - 91kHz
V-Sync Range:	50 - 120Hz
Video Compatibility:	Full NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i, 1080p/60
General
Audible Noise:	32 dB
Actual Dimensions:	Height: 5.11 in (12.98 cm) Length: 12.4 in (31.5 cm) Width: 16.53 in (41.99 cm)
Actual Weight:	15.7 lbs (7.12 kg)
Shipping Dimensions:	Height: 9.17 in (23.29 cm) Length: 18.5 in (46.99 cm) Width: 21.6 in (54.86 cm)
Shipping Weight:	23.2 lbs (10.52 kg)
Projector Warranty:	2 years
Lamp Warranty:	6 months
Accessories Warranty:	90 days
Operating temperature: (at sea level)	50 - 95° F (10 - 35° C)
Maximum Altitude Supported:	7500 ft (2286 m)
Typical Power Consumption:	400 Watts
Maximum Power Consumption:	420 Watts
Power Supply:	100 - 240 Volts at 50 - 60 Hz

Manufacturer Link: www.infocus.com
