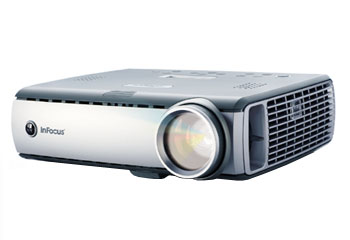

Infocus LP600 Dlp Video Projector infocus lp600

SUMMARY - Infocus lp600 2000 ANSI Lumens DLP Video Projector:

The InFocus LP600 LCD video projector offers you an impressive selection of connection options — wired or wireless, computer or video sources, and even the option to go PC-free with your USB flash drive — setting you free to focus on a flawless delivery, and not your equipment. An intuitive remote, user-defined controls, LCD display for instant status updates, auto keystone correction, and rich sound capabilities guarantee the best presentation possible for your audience. Featuring a bright 2000 ANSI lumens, 1000:1 contrast ratio, native XGA resolution, and a multitude of connection options.

DETAILED SPECS - INFOCUS WORK BIG LP600 DLP PROJECTOR:

Native Aspect Ratio:

4x3

Supported Aspect Ratio:

4:3, 16:9

Brightness: (max ANSI lumens)

Whisper: Not Available
High Bright: 2000 max ANSI lumens

Contrast Ratio:

1000 : 1 Full On/Full Off

Display Technology:

DLP by Texas Instruments : 0.7" DDR DDP2000

Data Compatibility:

640 x 480, 800 x 600, 1024 x 768, 1280 x 1024

Video Compatibility:

Full NTSC, SECAM, PAL, 480p, 576p, 720p, 1080i

Color Wheel (DLP Only):

4-segment, 2-speed

Native Resolution:

XGA

Projector Placement:

Ceiling Projection, Front Projection, Rear Projection

SMPTE Brightness:

Not Available

Lamp Wattage:

Whisper: Not Available
High Bright: 200 Watts

Lamp Life:

Whisper: Not Available
High Bright: 2000 Hours

Minimum Image Size:

2.2 ft

Maximum Image Size:

17.9 ft

Standard Lens Zoom:

1.2 : 1

Standard Lens Throw Ratio:

1.83:1 - 2.27:1 (distance/width) (Distance/Width)

Standard Lens Image Offset Ratio:

115

Standard Lens Projection Distance:

5 - 32.8 ft

Digital Keystone Correction (Vertical):

+/- 10°

Digital Keystone Correction (Horizontal):

Not Available

Lens Shift:

Not Available

Inputs and Outputs

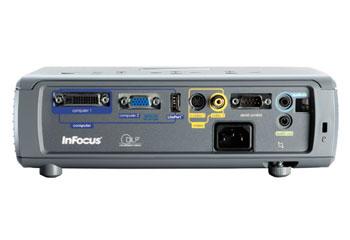

Infocus LP600 Dlp Projector Rear Panel View
(Click to Enlarge Image)

DVI:

Number of Inputs: 0
Requires M1 to DVI cable

M1:

Number of Inputs: 1
Accepts VGA and DVI with M1 cable

HDMI:

Not Available

BNC:

Not Available

Component (RCA):

Number of Inputs: 0
Requires M1 to Component adapter

VESA (HD15):

Number of Inputs: 1
15-pin analog

S-Video:

Number of Inputs: 1
4-pin DIN, no progressive signals

Composite (RCA):

Number of Inputs: 1
Video only

Standard Definition TV:

Inputs: Composite RCA, S-Video

Enhanced Definition TV:

Inputs: M1-DA, VESA

High Definition TV:

Inputs: M1-DA, VESA

Computer:

Inputs: M1-DA, VESA

HDCP Support:

Yes

Stereo RCA Jacks Inputs:

Stereo 3.5 mm Mini-jack Inputs:

Yes

12v trigger for motorized screens (3.5 mm mini-jack):

Projector Control:

Projector Keypad, Remote, ProjectorNet, RS-232

Speakers:

Single 3.0-watt speaker

Monitor Output:

Yes

Audio Output:

3.5mm audio output

Compatibility

Data Compatibility:

640 x 480, 800 x 600, 1024 x 768, 1280 x 1024

H-Sync Range:

31 - 80kHz

V-Sync Range:

50 - 85Hz

Video Compatibility:

Full NTSC, SECAM, PAL, 480p, 576p, 720p, 1080i

General

Audible Noise:

37 dB

Actual Dimensions:

Height: 2.9 in
Length: 10.4 in
Width: 8.6 in

Actual Weight:

5.2 lbs

Shipping Dimensions:

Height: 8 in
Length: 20 in
Width: 15 in

Shipping Weight:

16 lbs

Projector Warranty:

2 Year

Lamp Warranty:

90 Days

Accessories Warranty:

90 Days

Operating temperature:
(at sea level)

50 - 104° F

Maximum Altitude Supported:

7500 ft

Typical Power Consumption:

260 Watts

Maximum Power Consumption:

Not Available

Power Supply:

100 - 240 Volts at 50 - 60 Hz

Menu Languages:

English, French, German, Italian, Japanese, Korean, Norwegian, Portuguese, Russian, Simplified Chinese, Spanish, Traditional Chinese

Approvals:

FCC A (US/Canada), UL & cUL (US/Canada), GOST (Russia), TUV GS (Germany), CCC (China), IRAM (Argentina), NOM (Mexico), MIC (Korea), C-Tick (Australia)

Manufacturer Link: www.infocus.com

Infocus Work Big LP600 2000 ANSI Lumens DLP Video Projector
