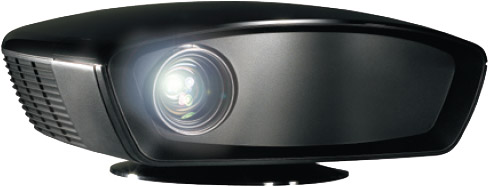

InFocus X10 Home Theater Video Projector x10

Native Aspect Ratio:

16x9

Supported Aspect Ratio:

16:9, 4:3

Brightness: (Video Optimized Lumens)

High Bright: 1200 Lumens
Eco Mode: 960 Lumens

Contrast Ratio:

2500 : 1 Full On/Full Off

Display Technology:

DarkChip1™ 1080p DLP™ by Texas Instruments

Data Compatibility:

VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), 720p (1280x720), 1080p (1920x1080), 480p (854x480), 576p (1024x576)

Video Compatibility:

Full NTSC, PAL, SECAM, 480i, 480p, 576i, 576p, 720p, 1035i, 1080i, 1080p/24, 1080p/30, 1080p/50, 1080p/60

Color Wheel (DLP Only):

7-segment, D65K (6500K) color calibrated

Native Resolution:

1080p

Projector Placement:

Ceiling Projection, Front Projection, Rear Projection

SMPTE Brightness:

Up to 13.5' (4m) diagonal with 1.0 gain screen

Lamp Wattage:

High Bright: 300 Watts
Eco Mode: 250 Watts

Lamp Life:

High Bright: 2000 Hours
Eco Mode: 2500 Hours

Minimum Image Size:

3.06 ft (0.93 m)

Maximum Image Size:

16.92 ft (5.16 m)

Standard Lens Zoom:

1.2 : 1

Standard Lens Throw Ratio:

1.89-2.22:1 (Distance/Width)

Standard Lens Image Offset Ratio:

136%

Standard Lens Projection Distance:

4.92 - 32.8 ft (1.5 - 10 m)

Digital Keystone Correction (Vertical):

+/- 13°

Digital Keystone Correction (Horizontal):

Not Available

Lens Shift:

Not Available

Inputs and Outputs

DVI:

Number of Inputs: 1
Requires M1 to DVI cable (SP-DVI-D-R)

M1:

Number of Inputs: 1
Accepts VGA, DVI, HDMI, & Component Video through optional M1-DA adapters.

HDMI:

Number of Inputs: 1
HDCP Supported

BNC:

Not Available

Component (RCA):

Number of Inputs: 1

VESA (HD15):

Number of Inputs: 1
Requires M1 to VGA cable (SP-DVI-A-R)

S-Video:

Number of Inputs: 1
4-pin mini-DIN

Composite (RCA):

Number of Inputs: 1

Standard Definition TV:

Composite RCA, S-Video, Component RCA

Enhanced Definition TV:

Component RCA, HDMI, M1-DA

High Definition TV:

Component RCA, M1-DA, HDMI

Computer:

M1-DA

HDCP Support:

Yes

Stereo RCA Jacks Inputs:

Stereo 3.5 mm Mini-jack Inputs:

12v trigger for motorized screens (3.5 mm mini-jack):

Yes

Projector Control:

RS-232, Remote, Projector Keypad

Speakers:

Not Available

Monitor Output:

Audio Output:

Not Available

Compatibility

Data Compatibility:

VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), 720p (1280x720), 1080p (1920x1080), 480p (854x480), 576p (1024x576)

H-Sync Range:

31.5 - 80kHz

V-Sync Range:

50 - 85Hz

Video Compatibility:

Full NTSC, PAL, SECAM, 480i, 480p, 576i, 576p, 720p, 1035i, 1080i, 1080p/24, 1080p/30, 1080p/50, 1080p/60

General

Audible Noise:

30 dB

Actual Dimensions:

Height: 5.83 in (14.81 cm)
Length: 17 in (43.18 cm)
Width: 18.75 in (47.63 cm)

Actual Weight:

14.1 lbs (6.4 kg)

Shipping Dimensions:

Height: 10.5 in (26.67 cm)
Length: 23.4 in (59.44 cm)
Width: 21.6 in (54.86 cm)

Shipping Weight:

21.2 lbs (9.62 kg)

Projector Warranty:

2 years

Lamp Warranty:

6 months

Accessories Warranty:

90 days

Operating temperature:
(at sea level)

50 - 95° F (10 - 35° C)

Maximum Altitude Supported:

7500 ft (2286 m)

Typical Power Consumption:

350 Watts

Maximum Power Consumption:

375 Watts

Power Supply:

100 - 240 Volts at 50 - 60 Hz

Menu Languages:

English, French, German, Italian, Japanese, Korean, Norwegian, Portuguese, Russian, Simplified Chinese, Spanish, Traditional Chinese

Approvals:

UL, c-UL, TUV GS, GOST, C-Tick, NOM, IRAM, FCC Class B, ICES-003 Class B, CISPR22/EN55022, EN55024/CISPR24, CB certified in accordance with IEC60950-1/EN60950-2, MIC, CE, VCCI, WEEE

Infocus X10 1200 ANSI Lumens 1080p DLP
Video Projector

OVERVIEW - Infocus x10 1200 ANSI Lumens 1080p DLP Video Projector:

FEATURES - Infocus X10 1200 ANSI Lumens 1080p DLP Video Projector:

SPECIFICATIONS - INFOCUS X10 1200 ANSI LUMENS 1080P DLP VIDEO PROJECTOR:
