The JVC Plasma
model GD-V500PZU flat panel monitor is a stunning, high-contrast, super bright, 50-inch plasma tv display panel, ideal for HDTV display. Boasting 1366 x 768 pixels, the PDP
screen will display signals with 15.6kHz to 110kHz horizontal and 45Hz to 120Hz
vertical scanning rates, delivering high-quality, sharp, crisp pictures for
virtually any video or computer application. The GD-V500PZU can accept any standard
television signal, including popular HDTV and DTV signals, including 1080i,
1080P/24, 720P, 576/50i, 480P and 480i. Standard video signals are displayed
in progressive mode to increase vertical resolution for superb picture clarity.
In addition, pixel shift/white background refresh/color reverse modes virtually
eliminate image burns that affect conventional plasma displays.
JVC introduces an advanced, 50-inch,
high-contrast, superbright plasma display panel, the GD-V500PZU, with an
exceptionally sharp and crisp picture quality, ideal for High Definition
display. The GD-V500PZU 50-inch plasma display monitor offers a
best-in-class high contrast image ratio of more than 3,000:1 for
distortion-free image reproduction in an ultra slim space-saving unit
measuring only 3.9 inches thick (98 mm).
Measuring 50 inches diagonally and
featuring a widescreen cinema-like aspect ratio, the GD-V500PZU makes a
commanding statement where a large screen application is desired. The
GD-V500PZU comes in a brushed silver cabinet.
JVC's GD-V500PZU, with 1366 x 768 pixels,
uses a full 24-bit RGB driver to deliver extraordinary picture quality.
Boasting a brightness of 300cd/m2, it presents an especially sharp, crisp
picture for virtually any video or computer application.
The JVC GD-V500PZU plasma display panel's
built-in RGB input allows direct computer hookups for multimedia
presentations. It supports up to UXGA (1600 x 1200) PC input resolution with
no distortion by compressing the display image over XGA resolutions. In
addition, it can accept any standard television signal, including NTSC,NTSC
4.43, PAL, PAL 60 and SECAM, as well as popular HDTV and DTV signals,
including 1080i, 1080P/24, 720P, 576/50i, 480P and 480i. For audio, there
are 6 ohm external speaker terminals. Matching slim-profile external
speakers are optional.
Standard video signals are displayed in a
non-interlaced mode to eliminate flicker and provide super clarity. The JVC
GD-V500PZU's totally flat screen produces no distortion or unevenness in
pictures at the corners and edges. Continuous tone and vibrant color are
achieved through the use of 256 "gray-scale" levels each for red, green and
blue color, resulting in a display total of 16.77 million different colors.
The JVC GD-V500PZU plasma flat panel
monitor features color temperature presets for normal, cool and warm
settings, and is adjustable in a range from 11,000K to 6,500K.
The JVC GDV500PZU plasma display flat
panel can be controlled by an infrared wireless remote control, or, for
added functionality, it also features a built-in RS-232C connection for
computer control.
640 x 480 (60 Hz), 640 x 480 (70 Hz), 800 x 600 (60 Hz),
800 x 600 (75 Hz), 1024 x 768 (60 Hz), 1024 x 768 (75
Hz), 1024 x 768 (85 Hz), 832 x 624 (75 Hz)
EMI:
FCC Class A
Audio output:
16 W (8 W + 8 W)
Power consumption:
530 W (standby 2.4 W)
Power requirement:
120 V AC, 50/60 Hz
External speaker terminals:
6 ohms
Dimensions (WxHxD):
1,210 x 724 x 98 mm (47-7/8" x 28-9/16" x 3-7/8")
Weight:
45 kg (99.45 lbs.)

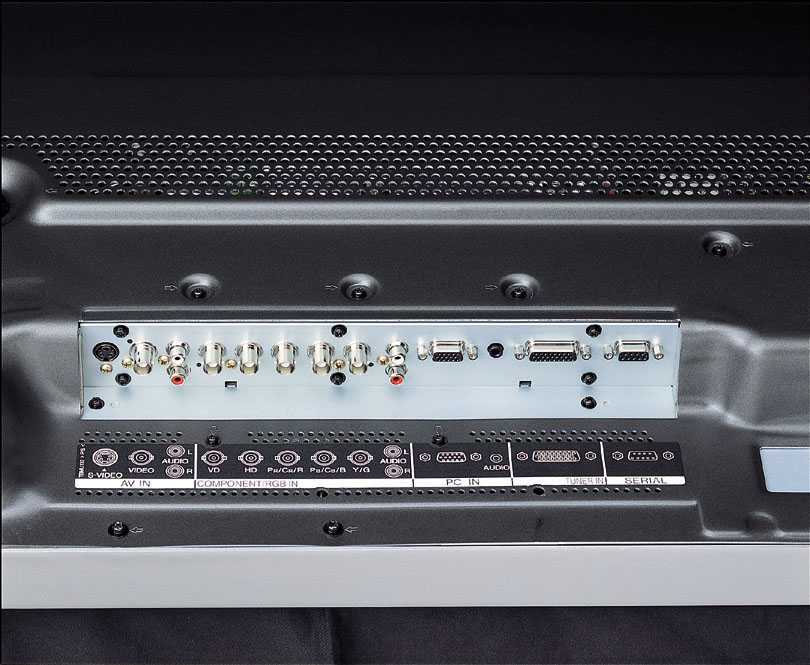

Input connectors
VIDEO:
Composite: 1 V (p-p), 75 ohms, auto-termination
S-VIDEO:
Y: 0.7 V (p-p), 75 ohms, C: 0.286 V (p-p)
AUDIO:
R/L 2 x RCA pins: 0.5 Vms
COMPONENT/RGB:
Y/G: 1 V (p-p), PB/CB/B: ±0.35 V (p-p), PR/CR/B: ±0.35
V (p-p), HD: 1.0 – 5.0 V (p-p), VD: 1.0 – 5.0 V (p-p)
