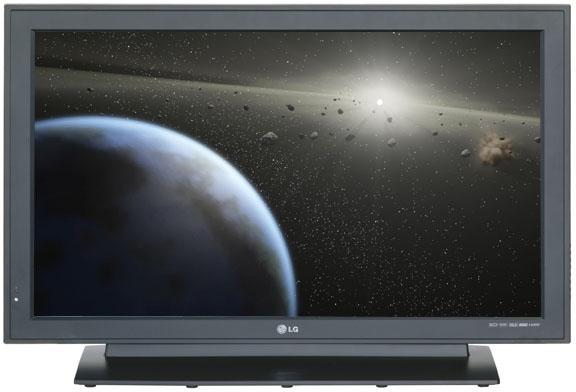

Click to Enlarge Image
(shown with optional stand)
KEY POINTS - 42PM1M Lg 42 inch HDTV Plasma TV Screen:
1024 x 768p Resolution
5000:1 Contrast Ratio
1500 cd/m2 High Brightness
Image Sticking Minimization, Pixel Orbitor, and White Wash Features
HDMI
Aspect Ratio Correction
RS-232 Control and Discrete IR Controls
Vertical Display Mode
XD Engine
Split Zoom Matrix
2 Year Warranty
SUMMARY -
Lg 42pm1m 42 inch HDTV Plasma TV Screen:
LG is committed to ensuring that our Plasma TV Displays are of maximum quality, adhering to strict quality assurance guidelines. We’re proud also to offer the industry’s widest range of screen sizes, to cater for all your display applications. The LG 42PM1M plasma tv features a native resolution of 1024 x 768p (XGA), amazing 5000:1 contrast ratio, high 1500 cd/m2 brightness and HDMI inputs.
DETAILED SPECS -
LG 42PM1M HDTV PLASMA SCREEN:
VIDEO ENHANCEMENTS
Screen Size 42"
Wide Format
Resolution Display 1024 x 768p
Aspect Ratio 4:3, 16:9, Horizon, Zoom
Brightness 1500 cd/m2 w/Filter
Contrast Ratio 5000:1
Viewing Angle 160°
Aspect Ratio Correction Yes
Scan Converter/Video Processor XD Engine
Contrast Yes
Brightness/Sharpness Yes
Tint/Color Yes
Enhanced Line Doubler Yes
DLTI/DCTI Yes
Enhanced Noise Reduction Yes
Comb Filter Yes
Flesh Tone Yes
Type RGB Closing
APC Daylight, Optimum, Nighttime, Off
Cinema (3:2 Pull Down) Yes
DISPLAY
Displayable
Colors 16.77M
Input Signal NTSC, HD, SD, VGA ˜ UVGA
Color Temperature Control Normal, Warm, Cool, User
PC Signal Capability VGA - UXGA
AUDIO ENHANCEMENTS
Mono/Stereo/MTS/SAP
Stereo
Bass/Treble/Balance Yes
Total Audio (Watts) Output 30W (2 x 15W)
BBE Yes
SRS Yes
DASP Flat, Music, Movie, Sports, Off
SPECIAL FEATURES
Trilingual Menus
English/Spanish/French
1 Level Mute Yes
RS-232 Control Yes
Discrete IR Controls Yes
White Balance Adjustment Yes
Display Mode Change (Vertical) Yes
Auto-Power On Yes
Discrete Power Off Yes
Last Source On Yes
Image Sticking Minimization Pixel Orbitor, White Wash, Inversion
Aspect Ratio Control Yes
Split Zoom (Matrix) Yes
Clock Yes
On/Off Timer Yes
Auto Off Yes
Key Lock Yes
Sleep Timer Yes
Auto Configuration Yes
Screen Adjust Yes
OUTPUT
RESOLUTIONS
NTSC, VGA, SVGA,
XGA, SXGA 1024 x 768p
HDTV 1024 x 768p
JACK PACK
Hi-Res Component
Video 2
Audio Left/Right In 3 plus PC Audio In
Composite In 1
RGB In (15-Pin Type-D Connector)/Out 1/1
S-Video In 1
RS-232C (9-Pin Connector) 1
HDMI 1
IR Jack (Input) 1
External Speaker Push Terminals Yes
Monitor with L & R Audio Out Yes
Variable Audio Out Yes
DIMENSIONS
Monitor (W x H x
D) 41.97" x 25.60" x 3.84"
Weight 66.14 Lbs.
Monitor Shipping Weight 78.26 Lbs.
Monitor with Stand (W x H x D) 41.97" x 27.80" x 11.62"
Weight 76.72 Lbs.
Monitor with Stand & Speakers 48.27" x 27.80" x 11.62"
Weight 81.13 Lbs.
CABINET DESCRIPTION
Finish Black
Cabinet Style Slim Frame
Power Source 115v 60Hz
OPERATING ENVIRONMENTS
Storage
Temperature Range -20°C–60°C
Storage Humidity Range <85%
Altitude 2,000m (6561 Feet)
Operating Temperature 0°C–40°C & <80% Humidity
REQUIRED APPROVALS
UL, C-UL, NOM UL,
C-UL, FCC (B)
SERVICE/LIMITED WARRANTY
Warranty:
Parts/Labor 2 Year/2 Year
MTBF (Approx.) 60K Hours
ACCESSORIES (SUPPLIED)
Remote Control
Yes
Power Cord Yes – 6 Feet
ACCESSORIES (OPTIONAL)
Desktop Stand
AP-42DM10B (WxHxD) 30.0" x 12.1" x 11.54"
Weight 15.7 Lbs.
Speaker AP-42SM10B (WxHxD) ea. 3.8" x 25.58" x 3.2"
Weight 5.5 Lbs. x 2
