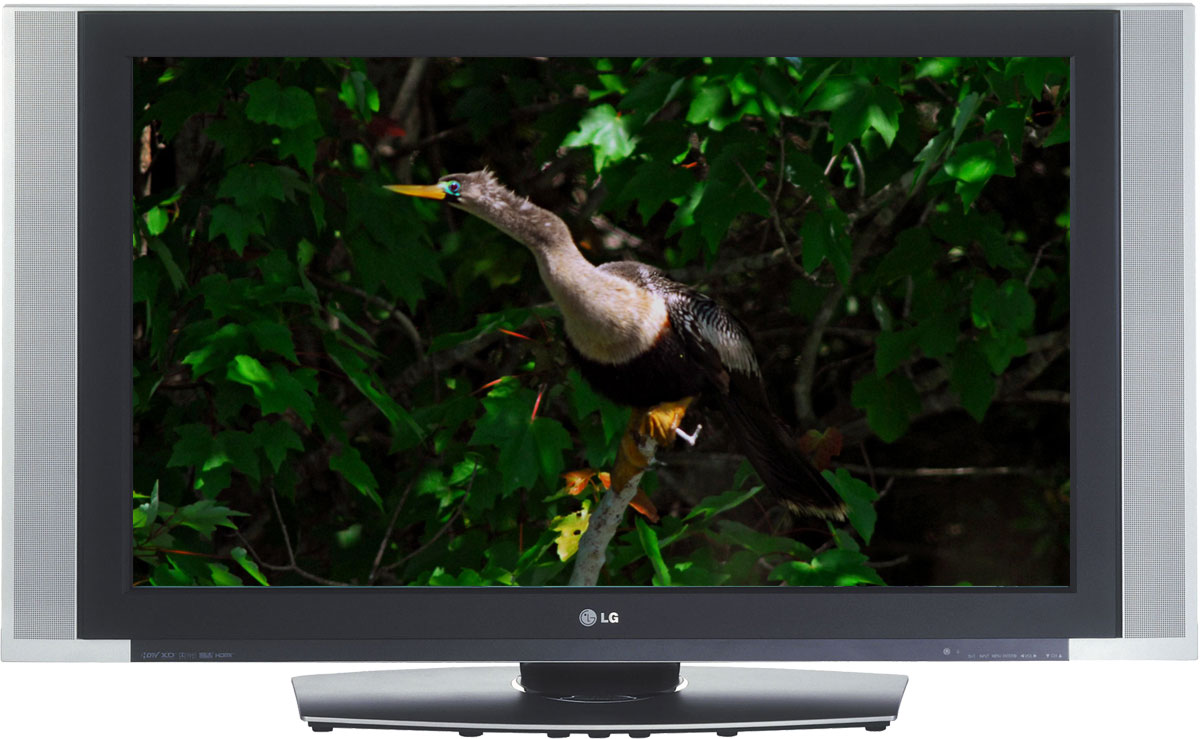

KEY POINTS - 42PX8DC Lg 42 Inch Plasma Widescreen HDTV (Hospitality Specific):
MPEG-2/MPEG-4 H.264 Decoding
Integrated Pro:Idiom
HD VOD PPV Encryption Built-in
1024x768 Resolution
15,000:1 Contrast Ratio
1500 cd/m2 High Brightness
Discrete IR Controls
Clear Filter for Improved Brightness and Contrast
XD Engine
2 HDMI Inputs with HDCP
Auto-Sensing Side Audio/Video Inputs
Integrated ATSC/NTSC/QAM Tuner
Double Window (Split Screen)
2 Year Limited Warranty
SUMMARY - Lg 42px8dc 42 Inch Plasma Widescreen HDTV (Hospitality Specific):
MPEG-4 TECHNOLOGY
LG’s new 42PX8DC flat-panel HDTV Plasma incorporates
the next-generation digital video compression
technology, MPEG-4 (Moving Picture Experts Group)
H.264, that enhances performance and simplicity for
venues delivering satellite high-definition programming.
This technology is the standard for compatibility
with the more than 150 national HD channels and
1,500 local broadcast HD and digital channels being
launched by DIRECTV.
The advanced coding system enables delivery of many
more HD channels in the same frequency bandwidth
as before. Integrated MPEG-4 HDTVs support the
industry’s deployment of DIRECTV-delivered HD
content, while setting the stage for the longer-term
implementation of MPEG-4 by other satellite operators,
cable companies, telcos and broadcasters. Since
MPEG-4 technology is built-in to these sets, an external
box* is not required to be used with HD content
providers who adapt to using this new technology.
*Certain functions, such as Pay-per-view, may require a set-top-box.
PRO:IDIOM™ DIGITAL RIGHTS MANAGEMENT SYSTEM
The Pro:Idiom system’s high-quality security unlocks
access to premium content availability to help assure
rapid, broad deployment of HDTV and other highvalue
digital content. Pro:Idiom has been designed
specifically for industries that use satellite-delivered
pay TV content or video-on-demand (VOD) services
and as such, could result in lower costs, and reduced
maintenance. This system is the leading DRM system
for the hospitality market, embraced by content providers
for both of these key programming sources. By
using this embedded approach, security is enhanced,
making it virtually impossible for “customers” to tamper
with or remove needed components.
DETAILED SPECS - LG 42PX8DC 42 INCH PLASMA WIDESCREEN HDTV (HOSPITALITY SPECIFIC):
DIMENSIONS
Cabinet without Stand (W×H×D) - 46.69"×25.78"×3.74"
Weight - 66 Lbs.
Cabinet with Stand (W×H×D) - 46.69"×28"×10.66"
Weight - 82.05 Lbs.
Carton Dimension (W×H×D) - 50.5"×29.5"×11.25"
Shipping Weight - 72.5 Lbs.
CABINET DESCRIPTION
Finish - Two Tone
Cabinet Style - Slim Frame with Side Speakers
Power Consumption - 330W
Power Source - 100~240v 50/60Hz
Energy Star Compliant - No (3w+ in Standby)
VESA™ Compatible - 600 mm×400 mm, M6 screw
VIDEO
PDP Panel Type - 42" Wide Format
Display Area - 41.6" diagonal
Native Display Resolution - 1024×768
Max. Computer Resolution (RGB) - XGA (1024×768)
Aspect Ratio - 16:9, 4:3 Zoom
Brightness - 1500 cd/m2
Contrast Ratio - 15,000:1
Viewing Angle - 160°
All Format Converter - 1080i/720p/480p/480i»768p
Aspect Ratio Correction - 7 Modes
Scan Converter - XD Engine®
Integrated ATSC/NTSC/QAM Clear Tuner - Yes
Integrated Pro:Idiom™ - Yes
Decoder Formats - MPEG-2/MPEG-4 H.264
Comb Filter - 3D Digital
Color Temperature - Cool, Normal, Warm
Enhanced Video - Yes
DLTI (Digital Luminance Transient Improver) - Yes
DCTI (Digital Color Transient Improver) - Yes
Black/Blue Stretcher - Yes
3:2 Pull-Down Cinema Correction - Yes
EZ Picture Selection Mode - 5 Modes
OPERATING ENVIRONMENTS
Storage Temperature Range: -4° to 140°F (-20° to 60°C)
Storage Humidity Range - <85%
Altitude - <2,900 m (9,514 ft)
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Operating Humidity Range: <80%
JACK PACK
Hi-Res Component Video: 1
Audio Left/Right In: 2 Rear, 1 Side
Audio In for RGB/DVI (Mini Jack): Yes
RF In: 1 (NTSC & ATSC tuner)
Composite Video & Audio: 1 Rear, 1 Side
RGB In: (15-Pin Type-D Connector) 1
S-Video In: 1 Rear, 1 Side
RS-232C (9-Pin Male D-Sub): Service Only
HDMI™ with HDCP (DVI with Adapter): 2
IR Jack: 1
Digital Audio (Optical): 1 Out
(Bathroom) Speaker Out: Yes
RJ-45: 1 (Rear, for RJP)
MPI™ Slot (RJ-11): Yes
