OVERVIEW

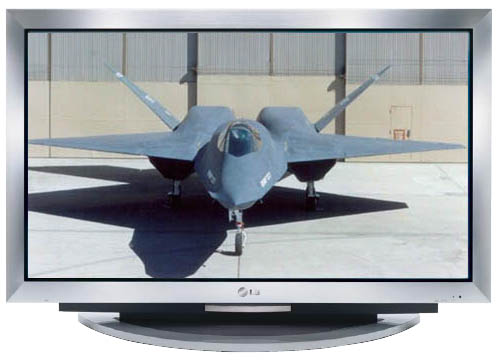

- LG mu-42pz90c 42 inch edtv plasma tv monitor
LG is committed to ensuring that our Plasma Displays are
of maximum quality, adhering to strict quality assurance guidelines. We’re
proud also to offer the industry’s widest range of screen sizes, to cater
for all your display applications.
FEATURES
- LG mu42pz90c plasma tv monitor
Screen
Size: 42" (16:9)
Resolution: 852 x 480
Contrast
Ratio: 3000:1
Brightness: 1000 cd/m2
w/Filter
Picture-in-Picture
RGB
Output
SPECIFICATIONS - LG MU42PZ90C EDTV Plasma TV
VIDEO ENHANCEMENTS
Screen Size
42" Wide Format
Resolution Display
852
x 480p
Pixel Pitch
0.36 (H) x 1.08 (V)
Aspect Ratio
16:9, 4:3 Zoom
Brightness
1000 cd/m2 w/Filter
Contrast Ratio
3000:1
Viewing Angle
160°
Format Conversion
Intelligent Image Scanning
Aspect Ratio Correction
Yes
Scan Converter
O-Plus
Contrast
Yes
Brightness/Sharpness
Yes
Tint
Yes
Video De-Interlacing/Line
Doubling Faroudja DCDi
DISPLAY
Display Frequency
15.73
to 120Hz (H), 50 to 120Hz (V)
Displayable Colors
16.77M
Color Gradation Filter
Yes
Input Signal
NTSC, HD, SD, VGA, SVGA
DIMENSIONS
Cabinet (W x H x D)
41.57" x 25.0" x 3.23"
Weight
75 Lbs.
CABINET DESCRIPTION
Power Consumption
220W
Power Source
110–220v 60H x 50Hz
AUDIO ENHANCEMENTS
Mono/Stereo/MTS/SAP
Stereo
Bass/Treble/Balance
Yes
Total Audio (Watts)
Output 20W (2 x 10W)
(Speakers Optional)
OUTPUT RESOLUTIONS
NTSC, VGA, SVGA, XGA, SXGA
852
x 480p
EDTV
852
x 480p
JACK PACK
Hi-Res
Component Video
1
Audio Left/Right In
3
Composite In
1
RGB
In(15-PinType-DConnector)/Out
1/1
S-Video In
1
RS-232C (9-Pin Connector)
1
DVI
with HDCP
1
IR
Jack
1
Audio L/R Out
1
OPERATING ENVIRONMENTS
Storage Temperature Range
-20°C–60°C
Storage Humidity Range
<85%
Altitude
2,000m (6561 Feet)
Operating Temperature
0°C–40°C & <80% Humidity
SPECIAL FEATURES
Acoustic Noise Reduction
Picture In Picture (PIP) Yes, Split Screen, Zoom
Trilingual Menus English/Spanish/French
1 Level Mute
RS-232 Control
Discrete IR Controls
Detachable AV Terminal
White Balance Adjustment
Display Mode Change (Vertical)
Fan Free, Noise Free Yes (Landscape Only)
Aspect Picture Control
Split Zoom (Matrix)
REQUIRED APPROVALS
UL, C-UL, NOM UL, C-UL, FCC (B)
SERVICE/LIMITED
WARRANTY
Warranty: Parts/Labor 2 Year/2 Year MTBF
(Approx.) 60K Hours
The LG plasma display panel (PDP) can be
thought of as a descendant of the neon lamp. The term plasma refers to a gas
that consists of electrons, positively charged particles known as anions,
and neutral particles. The PDP has sometimes been referred to as a
gas-discharge display because it operates by passing electricity through
neon gas, causing it to become "charged" temporarily: light is produced when
the gas spontaneously discharges. Plasma display panels can also be viewed
as a series of fluorescent lamps. The displays operate at high voltages, low
currents, and low temperatures, resulting in long operating lifetime. Inside
the plasma panel, a series of red, green, and blue cells are grouped in a
precise matrix. These cells are activated individually, unlike standard CRTs
or LCDs. This means that they emit light individually, creating a precise
pixel on the viewing area.
Advantage of PDP
The main advantage of the LG Plasma Display
Panel PDP over nearly
all other display devices is that it can be made into a display panel, with
diagonal sizes of 20 to 80 inches that are no thicker than 4 inches.
Moreover, these large panels can provide high information content and
full-color images. This makes the PDP the ideal technology for the fabled
wall- mounted television, which can be used in the home as well as in
numerous commercial and industrial environments as a replacement for large,
bulky CRT monitors and rear projectors.
