OVERVIEW

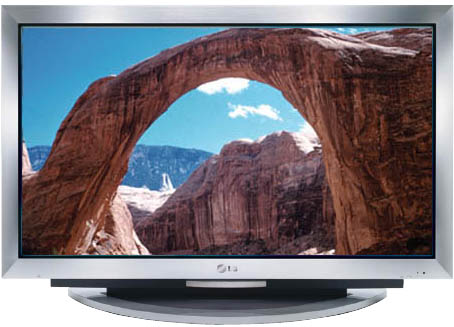

- LG mu-60pz90c 60 inch hdtv plasma tv monitor
LG is committed to ensuring that our Plasma Displays are
of maximum quality, adhering to strict quality assurance guidelines. We’re
proud also to offer the industry’s widest range of screen sizes, to cater
for all your display applications.
FEATURES
- LG mu60pz90c plasma tv monitor
Screen
Size:
60" (16:9)
Resolution:
1366
x
768
Contrast
Ratio: 1000:1
Brightness: 1000 cd/m2
Flexible
Twin Picture-in-Picture
Pivots
for Vertical Display
RGB
Output
SPECIFICATIONS - LG MU60PZ90C HDTV Plasma TV
VIDEO ENHANCEMENTS
Screen Size
60"
Resolution
1366 x 768p
Pixel Pitch
0.343 (H) x 1.032 (V)
Aspect Ratio
16:9, 4:3 Zoom
Brightness
1000 cd/m2
Contrast Ratio
1000:1
Viewing Angle
160°
Format Conversion
Intelligent Image Scanning
Aspect Ratio Correction
Yes
Brightness/Sharpness
Yes
Video De-Interlacing/Line
Doubling Faroudja DCDi
DISPLAY
Display Frequency
15.73 to 68Hz (H), 50
to 120Hz (V)
Displayable Colors
16.77M
Color Gradation Filter
Yes
Input Signal
NTSC, HD, VGA, SVGA, XGA, SXGA
Display Modes
Normal, Wide, Zoom
DIMENSIONS
Cabinet (W x H x D)
57.3" x 34.8" x 3.9"
Weight
154.3 Lbs.
CABINET DESCRIPTION
Finish
Brushed Silver
Power Consumption
650W
Power Source
120v 60Hz
AUDIO ENHANCEMENTS
Mono/Stereo/MTS/SAP Mono/Stereo
Bass/Treble/Balance
Total Audio (Watts)
Output 20W (2 x 10W) (External Speakers)
OUTPUT RESOLUTIONS
NTSC, VGA, SVGA, XGA, SXGA
1366 x 768p
HDTV
1366 x 768p
JACK PACK
Hi-Res Component Video
1
Audio Left/Right In/Loop
Out 3
Composite In
1
RGB In (15-Pin Type-D Connector)
1
S-Video In
1
RS-232C (9-Pin Connector)
1
DVI with HDCP
1
IR Jack
1
Audio L/R Out
1
SPECIAL FEATURES
Acoustic Noise Reduction
Picture In Picture (PIP), Split Screen, Zoom
Multilingual Menus English/Spanish/French/Portuguese/Korean
1 Level Mute
Shock Absorbing Glass Damper, Tilt to 20°
RS-232 Control
Discrete IR Controls
Detachable AV Terminal
Auto-Power On
Image Sticking Minimization
Pixel Orbitor
Display/Mode Change (Vertical)
Aspect Ratio Control
Split Zoom (Matrix)
OPERATING ENVIRONMENTS
Storage Temperature Range
-20°C–60°C
Storage Humidity Range
<85%
Altitude
0–2,000m (6561 Feet)
Operating Temperature
0°C–40°C &
<80% Humidity
REQUIRED APPROVALS
UL,
C-UL, NOM UL, C-UL, FCC (B)
SERVICE/LIMITED
WARRANTY
Warranty: Parts/Labor 2 Year/2 Year
MTBF (Approx.) 60K Hours
The LG plasma display panel (PDP) can be
thought of as a descendant of the neon lamp. The term plasma refers to a gas
that consists of electrons, positively charged particles known as anions,
and neutral particles. The PDP has sometimes been referred to as a
gas-discharge display because it operates by passing electricity through
neon gas, causing it to become "charged" temporarily: light is produced when
the gas spontaneously discharges. Plasma display panels can also be viewed
as a series of fluorescent lamps. The displays operate at high voltages, low
currents, and low temperatures, resulting in long operating lifetime. Inside
the plasma panel, a series of red, green, and blue cells are grouped in a
precise matrix. These cells are activated individually, unlike standard CRTs
or LCDs. This means that they emit light individually, creating a precise
pixel on the viewing area.
Advantage of PDP
The main advantage of the LG Plasma Display
Panel PDP over nearly
all other display devices is that it can be made into a display panel, with
diagonal sizes of 20 to 80 inches that are no thicker than 4 inches.
Moreover, these large panels can provide high information content and
full-color images. This makes the PDP the ideal technology for the fabled
wall- mounted television, which can be used in the home as well as in
numerous commercial and industrial environments as a replacement for large,
bulky CRT monitors and rear projectors.
