Marshall BC-0301-08
SDI to Composite and S-Video Converter
Our Price $234.95 Including 3 - 5 Day Shipping
Back to Marshall Video Converters |
|
|

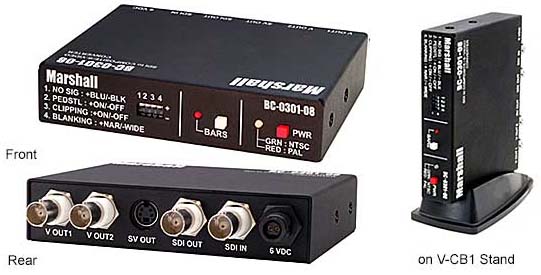

 Click For Larger Image |
OVERVIEW - Marshall bc030108 SDI to Composite and S-Video Converter:
Marshall's Low-cost BC-0301-08 digital to analog module can be configured for use in desktop or studio rack mount applications. The unit features 2 simultaneous Composite Video and S-Video D to A (10 bit processing) conversion. The unit also includes a built in Color Bar
Generator, System indicator (PAL/NTSC), and dip-switch settings for no signal (Black/Blue screen displayed), pedestal (On/Off), clipping (On/Off), and blanking (Narrow/Wide). All Processing and Distribution modules include power supply and owners manual. An optional base holder (V-CB1) is available for use in desktop applications.
|
FEATURES - Marshall BC030108
sdi to composite and s-video converter:
- Converts component serial digital signal to analog composite
- Active loop through for SDI signal
- Simultaneous outputs for 2 video and 1Y/C (S-Video)
- PAL/NTSC auto detection with led indicator
- Pedestal on/off selection for NTSC signals
- 10-bit processing with two-times over sampling
- Supports closed captioning
- Includes color bar generator
|
SPECIFICATIONS - MARSHALL BC-0301-08 SDI TO S-VIDEO CONVERTER:
- Dimensions 4.75"W x 3.75"D x 1.0"H
- Serial Digital Input SDI (SMPTE-259M-C, ITU-R601)
- Input Data Rate 270 Mb/s
- Serial Digital Output BNC active loop through 0.8V p-p 75W
- Input Return Loss <15db
- Cable Length 1000' max using Belden 8281 or equivalent
- Analog Output Simultaneous 2 Composite Video and 1Y/C outputs
- Sample Frequency 27Mhz
- Power required 6V D.C. supplied from external power supply (Included)
- Weight 0.55 lbs
Manufacturer Homepage: www.lcdracks.com
|
