Marshall BC-0301-10
SDI to Composite and S-Video Converter
Our Price $299.99 Including 3 - 5 Day Shipping
Back to Marshall Video Converters |
|
|

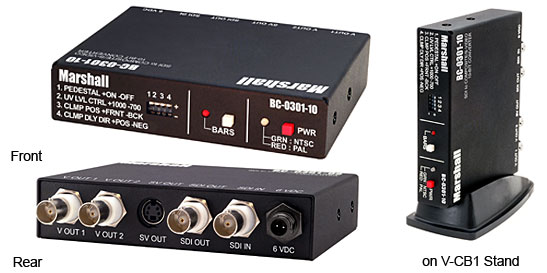

 Click For Larger Image |
OVERVIEW - Marshall bc030110 SDI to Composite and S-Video
Converter:
Marshall's cost effective BC-0301-10 digital to analog module can be configured for use in a variety of applications. The unit features to simultaneous Composite Video and S-Video D/A (10 bit) conversion. 4x over sampling provides superb analog images. There is also a built in Color Bar Generator, System indicator (PAL/NTSC) , and dipswitch settings for Pedestal (On/Off), UV Level Control (700ma/1000ma), Clamping Position (Front Porch/Back Porch), and Clamping Delay Position (Positive/Negative). All Marshall Electronics Processing and Distribution modules include power supply and owners manual. An optional base holder (V-CB1) is available for use in desktop applications.
|
FEATURES - Marshall BC030110
sdi to composite and svideo converter:
- Converts component serial digital signal to analog composite
- Active loop through for SDI signal with re-clocking
- Automatic Compensation for SDI input for cable length up to 1000’
- Simultaneous outputs for 2 video and 1 Y/C (S-video)
- PAL/NTSC auto detection with led indicator
- Pedestal on/off selection for NTSC signals
- 10-bit processing with 4x over sampling
- Supports closed captioning
- Includes color bar generator
- Includes Power Supply
|
SPECIFICATIONS - MARSHALL BC-0301-10 SDI TO S-VIDEO CONVERTER:
- Dimensions 4.75"W x 3.75"D x 1.0"H
- Serial Digital Input SDI (SMPTE-259M-C, ITU-R601)
- Input Data Rate 270 Mb/s
- Serial Digital Output BNC active loop through 0.8V p-p 75W
- Input Return Loss <15db
- Cable Length 1000' max using Belden 8281 or equivalent
- Analog Output Simultaneous 2 Composite Video and 1Y/C outputs
- Sample Frequency 27Mhz
- Power required 6 V D.C. supplied from external power supply (included)
- Weight 0.55 lbs
Manufacturer Homepage: www.lcdracks.com
|
