Marshall BC-0909-DA
HDSDI to Component Video Converter
Our Price $784.99 Including 3 - 5 Day Shipping
Back to Marshall Video Converters |
|
|

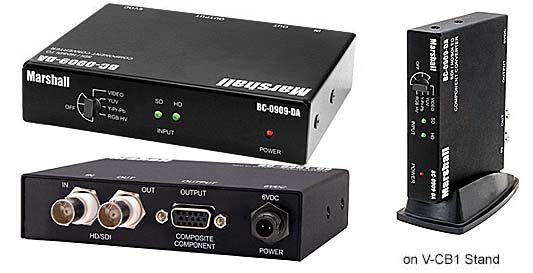

 Click For Larger Image |
OVERVIEW - Marshall bc0909da HDSDI to component video converter:
The Marshall BC-0909-DA is a universal digital
converter for HDSDI to Analog HD (SMPTE-274M) component video, RGBHV or SDI to Analog Composite,
S-Video, analog component, RGB with support of 480i, 480P, 720P, 1080 24P, 1080i formats. The Digital to Analog conversion in this module employs 10-bit sampling and data path with 4x over sampling of chroma and an adaptive filter process. All Marshall Electronics Processing and Distribution modules include power supply and owners manual. An optional base holder (V-CB1) is available for use in desktop applications.
|
FEATURES - Marshall BC0909DA
Digital HDSDI/SDI to Analog HD/SD Converter:
- Converts HDSDI to Analog High Definition RGB or Y-Pr-Pb
(Component Video)
- Converts SDI to Analog Composite (PAL/NTSC)
- Converts SDI to Y/C (S-Video)
- Converts SDI to Analog Component RGB/Y, R-Y, B-Y/YUV
- PAL/NTSC auto detection with led indicator
- Active loop through for SDI signal with re-clocking
- Automatic detection range of 142Mb/s to 1.485Gb/s
- Automatic Compensation of SDI input for cable length up to 1000 ft
- 10-bit processing with 4x over sampling
|
SPECIFICATIONS - MARSHALL BC-0909-DA HDSDI TO COMPONENT VIDEO CONVERTER:
- Dimensions 12.1cm x 9.5cm x 2.5cm
- Signal Input BNC for HDSDI/SDI signals that conform to SMPTE-259M/292M
- Screen Formats 640 × 480 50i, 59.97i, 60i 1280 × 720 23.97P, 24P, 25P, 29.97P, 30P, 59.96P, 60P 1920 × 1080 23.97P, 24P, 25P, 29.97P, 30P, 50i, 59.97i, 60i
- Signal Output HD-15 ( RGBHV, YUV, Y-Pr-Pb) 75W BNC for Composite Video (PAL/NTSC) 75W with AGC
- Output Standards SMPTE-170M for SDI inputs / SMPTE-296 for HDSDI inputs
- Dynamic gain/phase <0.4% / 0.4° (Differential gain/phase <0.5% / 0.7°)
- Signal to Noise >57db
