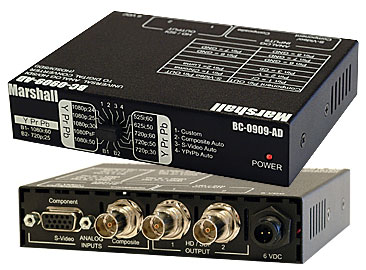

Marshall BC-0909-AD Component Video to HDSDI Converter

Our Price $1499.99 Including 3 - 5 Day Shipping

Back to Marshall Video Converters

Click For Larger Image

OVERVIEW - Marshall bc0909ad component video to hdsdi converter:

The Marshall BC-0909-AD is a universal digital converter for analog HD component video to HDSDI or analog composite, s-video, or analog component to SDI with support of 480i, 576i, 720P, 1080P, and 1080i formats. The Analog to Digital conversion in this module employs 12 bit sampling and 10 bit processing with 4x over sampling and an adaptive filter process.

FEATURES - Marshall BC0909AD Analog HD/SD to Digital HDSDI/SDI Converter:

• Converts analog high definition Y-Pr-Pb (component video) to HDSDI
• Converts analog composite (NTSC/PAL) to SDI
• Converts Y/C (S-Video) to SDI
• Converts analog component YUV (Y/R-Y/B-Y) to SDI
• Rotary switch for input signal type
• 10-bit processing with 4x over sampling

SPECIFICATIONS - MARSHALL BC-0909-AD COMPONENT VIDEO TO HDSDI CONVERTER:

• Signal Input

  • HD-15 (Analog component YPrPb that conforms to SMPTE-170M/274M/296M, or Y/C that conforms to SMPTE-170M) via included RGB-5HD15-6 Break out cable. BNC for analog composite that conforms to SMPTE-170M

• Screen Formats

  • 720 x 480-59.97i, 60i

  • 720 x 576-50i

  • 1280 x 720-25p, 29.97p, 30p, 50p, 59.94p, 60p

  • 1920 x 1080 - 23.98p, 23.98psF, 24p, 24psF, 25p, 29.97p, 30p, 50i, 59.94i, 60i

• Signal Output

  • BNC for HDSDI/SDI

• Output Standards

  • SMPTE-259M for SDI

  • SMPTE-292M for HDSDI

• System Sample Frequency

  • 110Mhz

• Dynamic gain/phase

  • <0.4% / 0.4°

• Y/C delay

  • <2%/2°

• Frequency Response

  • -0.9db

• Signal to Noise

  • <57db

• Differential gain/phase

  • <0.5% / <0.7°

• Input cable length

  • 1000ft (300m)

• Dimensions

  • 4.75”W x 3.75”D x 1.0”H (120.65mm x 95.25mm x 25.4mm)

• Weight

  • 0.55 lbs

• Power Required

  • 6V D.C. supplied from external supply

• Included Accessories

  • Power Supply (Class 2, (Model V-PS6-12A)

  • RGB-5HD15-6 Break out cable

  • Users Guide

  • Wall Mount Brackets

  • Foot Pads for desktop or stacking

Manufacturer Homepage: www.lcdracks.com
