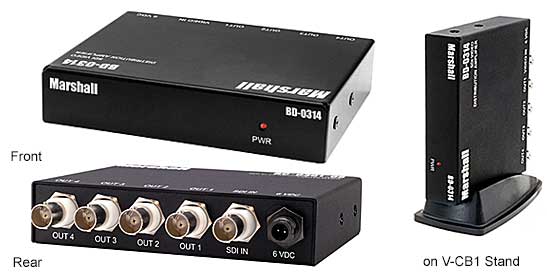

Click For Larger Image

OVERVIEW - Marshall bd0314 Converter, SDI 1x4 Video Distribution Amplifier:

The Marshall BD-0314 Serial Digital Distribution Amplifier is a cost effective solution for a wide range of applications. This model can be used for any application requiring distribution of SDI signals. All Processing and Distribution modules include power supply and owners manual. An optional base holder (V-CB1) is available for use in desktop applications.

FEATURES - Marshall BD0314 Converter, SDI 1x4 Video Distribution Amplifier:

• Use for distribution of SDI signals 143Mbs to 540Mbs
• Self terminating 75W BNC SDI input
• 4 reclocked and equalized BNC SDI Outputs
• Power indicator on front panel
• All connections in rear of module
• Install in rack or use on the desktop
• Can also be used as a signal repeater
• Includes power supply

SPECIFICATIONS - MARSHALL BD-0314 VIDEO DISTRIBUTION AMPLIFIER:

• Dimensions 4.75"W x 3.75"D x 1.0"H
• Signal Input BNC connection of composite video - PAL or SMPTE
• Signal Output 4 BNC
• Frequency Response 5 to 7 Mhz
• K factor <1%
• Signal to Noise >60 db
• Dynamic gain/phase <1% / <1°
• Cable Length 600' max using Belden 8281 or equivalent
• Power required 6V D.C. supplied from external power supply (Included)
• Weight 0.55 Lbs
