Marshall MC-0201-4
Precision 4-Channel S-Video to Composite Converter
Our Price $157.94 Including 3 - 5 Day Shipping
Back to Marshall Video Converters |
|
|

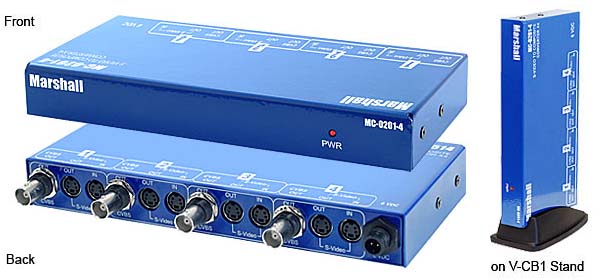

 Click For Larger Image |
OVERVIEW - Marshall mc02014 Precision 4-Channel S-Video to Composite Converter:
The
Marshall MC-0201-4 S-Video to composite conversion module fills a void
that has long existed in Professional and Multimedia applications.
Until now, the only way to convert S-Video to composite was by using a
very low quality passive device or expensive boxes that lacked in
capability. The MC-0201-4 is the only product of its type available,
providing simultaneous conversion of 4 separate S-Video (Y/C) channels
to composite video. The S-Video is processed and amplified for output
to another device like a vision mixer or VCR.
Compare the features and price of the MC-0201-4 to
similar devices and you will be pleasantly surprised. In most cases
the MC-0201-4 provides 4 channels of conversion compared to other
products providing only 1 channel at a similar price point. An
optional base holder (V-CB1) is available for use in desktop
applications.
|
FEATURES - Marshall MC02014 Precision 4-Channel S-Video to Composite Converter:
- Compact design can be installed on the tabletop, wall mounted or placed into a standard 19” EIA rack using the optional V-CRM2 rack kit
- Full bandwidth conversion of S-Video (Y/C) chrominance and luminance components to composite video
- Four channels of conversion in each MC-0201-4. This is a perfect fit for use of S-Video signals with the Marshall Electronics 4 screen monitor set model V-R44P
- Low Power consumption less than 10 watt
- Operates from 6 Volt DC
- Universal voltage power supply is included
- S-Video signal loops out for use with downstream equipment like switcher, vision mixer, or VCR
|
SPECIFICATIONS - MARSHALL MC-0201-4 VIDEO CONVERTER:
- Dimensions 7.75"W x 3.75"D x 1.0"H
- Signal Input Y/C Video 4 pin Mini- din x 4 channels
- Signal Output Composite Video BNC Plus Y/C Video 4 pin Mini- din x 4 channels
- Bandwidth >7mhz
- K factor <1%
- Signal to Noise >60 db
- Dynamic gain/phase 0.4% / 0.4°
- Cable length Up to 100ft
- Power required 6 V D.C. supplied from external supply
- Weight 1.15 Lbs
