Marshall MD-0114-EQ
Converter, Video 1x4 Distribution Amplifier with EQ
Our Price $141.45 Including 3 - 5 Day Shipping
Back to
Marshall Video Distribution Amplifiers |
|
|

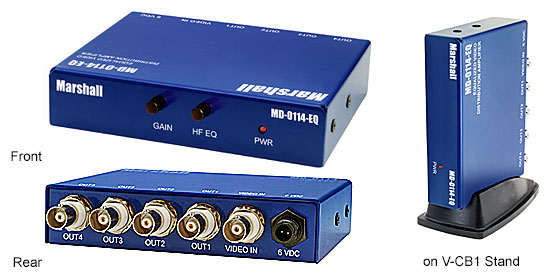

 Click For Larger Image |
OVERVIEW - Marshall md0114eq Converter, Video 1x4 Distribution Amplifier with EQ:
Marshall's MD-0114-EQ Distribution Amplifier is a cost effective solution for applications that require compensation for longer cable runs. This module is also recommended for video signal distribution between image capture and playback or processing devices like camera, VTR, DDR, Editing or Graphics Computer, Video Switchers and Effects Engines. All Processing and Distribution modules include power supply and owners manual. An optional base holder (V-CB1) is available for use in desktop applications.
|
FEATURES - Marshall MD0114EQ Converter, Video 1x4 Distribution Amplifier with EQ:
- Convenient front panel adjustments of gain and high frequency equalization
- Adjustments to compensate for cable runs up to 1000 ft
- Self terminating 75W BNC input
- 75W BNC outputs (4)
- All connections in rear of module
- Install in rack or use on the desktop
|
SPECIFICATIONS - MARSHALL MD-0114-EQ VIDEO DISTRIBUTION
AMPLIFIER:
- Dimensions 4.75"W x 3.75"D x 1.0"H
- Signal Input BNC connection of composite video - PAL or SMPTE
- Signal Output 4 BNC
- Frequency Response (Gain) 5 to 20 Mhz (1v p-p to 2v p-p with 1v input signal)
- K factor <1%
- Signal to Noise >70 db
- Dynamic gain/phase <1% / <1°
- Cable length 1000' max using Belden 8281 or equivalent
- Power required 6 V D.C. supplied from external supply
- Weight 0.55 Lbs
