Marshall MD-0514
Converter, VGA, RGB, Y-PR-PB 1x4 Video Distribution Amplifier Hi-Res.
Our Price $157.94 Including 3 - 5 Day Shipping
Back to
Marshall Video Distribution Amplifiers |
|
|

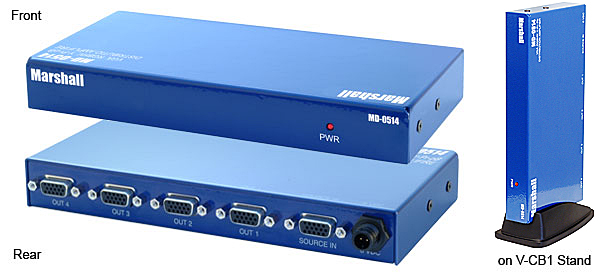

 Click For Larger Image |
OVERVIEW - Marshall md0514 Converter, VGA, RGB, Y-PR-PB 1x4
Video Distribution Amplifier Hi-Res.:
The
Marshall MD-0514-DA is a multi-format 1 x 4 distribution amplifier, with signal bandwidth
up to 350 MHz. This module can be used with VGA, SVGA, XGA, UXGA signals.
An optional HD15 to 5 BNC cable (RGB-5HD15-X) can be used for RGBHV, Y-Pr-Pb, YUV,
RGB, Y/C and composite signals. Supports screen formats up to 1920 x 1080. The unit
Includes power supply, owners manual and mount brackets. An optional base holder (V-CB1)
and BNC Breakout Cables (RGB-5HD15-X) are available for use in desktop applications.
|
FEATURES - Marshall MD0514 Converter, VGA, RGB, Y-PR-PB 1x4
Video Distribution Amplifier Hi-Res.:
- Includes module and power supply
- Signal Bandwidth up to 350Mhz
- Multiple applications
- HD-15 Input Connection self terminating 75W
- 4 HD-15 Output Connections
- All connections in rear of module
- Install in rack or use on the desktop
|
SPECIFICATIONS - MARSHALL MD-0514 VIDEO DISTRIBUTION AMPLIFIER:
- Dimensions 7.75"W x 3.75"D x 1.0"H
- Signal Input HD-15 (VGA, SVGA, XGA, UXGA, RGBHV, YUV, Composite)
- Signal Output 4 HD-15
- Frequency Response 10 to 350 MHz
- K factor <1%
- Signal to Noise >70 db
- Dynamic gain/phase <1% / <1°
- Cable length (Y/C delay) 250' (<3%/2°)
- Power required 6 V D.C. supplied from external supply
- Weight 1.15 lbs
