Marshall BC-0103-08 (SDI 8 Bit) to SDI Video Converter

Our Price $389.99 Including 3 - 5 Day Shipping

Return to Marshall Video Converter Page

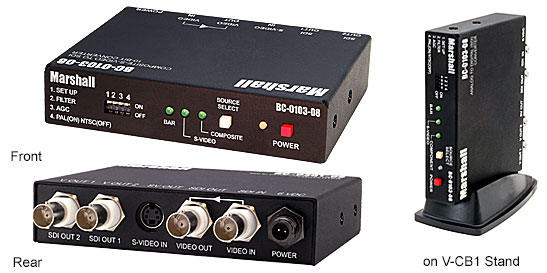

Click to Enlarge Image

KEY POINTS - Marshall BC010308 (SDI 8 Bit) to SDI Video Converter:

• Converts Composite or S-Video to SDI
• NTSC or PAL operation with automatic detection
• Illuminated power and input signal indicators
• Adaptive filtering removes NTSC interlace artifacts
• 2 x over sampling for true color reproduction
• 10 Bit analog to digital conversion
• 8-bit quantization of output signal
• Supports closed captioning

SUMMARY - Marshall bc010308 (SDI 8 Bit) to SDI Video Converter:

The Marshall BC-0103-08 converts composite or S-Video (NTSC/PAL) to Serial Digital Interface (SDI). Featuring automatic cable compensation, 8-bit processing and a superior adaptive comb filter, the BD-0103-08 is an ideal solution for DTV applications and facility transitions to a digital environment.

DETAILED SPECS - MARSHALL BC-0103-08 VIDEO CONVERTER:

• Dimensions 4.75"W x 3.75"D x 1.0"H
• Signal Input BNC for Composite Video 75 W, 4 pin mini-din Y/C Video
• Signal Output 2 BNC SDI 8 bit Component Digital (SMPTE-259/ITU-R BT601)
• Sample Frequency 27Mhz
• K factor <1%
• Signal to Noise >54db
• Differential gain/phase 0.7% / 0.6°
• Input Cable Length Up to 1000ft (300m) AGC compensated (Belden 8281 or equivalent
• Power required 6V D.C. from external supply 3.0 Amp max
• Weight 0.55 lbs

Manufacturer Link: www.lcdracks.com
