Marshall BD-0114 Converter, Video 1x4 Distribution Amplifier Hi-Resolution

no longer available

Return to Marshall Video Distribution Amplifier Page

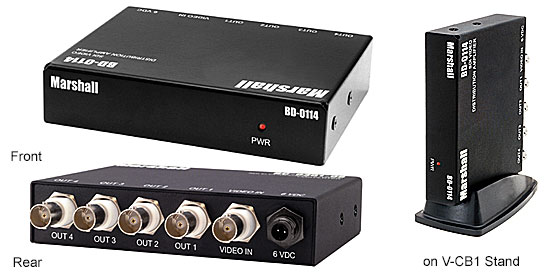

Click to Enlarge Image

KEY POINTS - Marshall BD0114 Converter, Video 1x4 Distribution Amplifier Hi-Resolution:

• Signal Bandwidth up to 300Mhz
• Use 3 for Y-Pr-Pb applications 145Mhz to 300Mhz
• Self terminating 75 Ohm BNC input
• 75W BNC outputs (4)
• All connections in rear of module
• Install in rack or use on the desktop

SUMMARY - Marshall bd0114 Converter, Video 1x4 Distribution Amplifier Hi-Resolution:

Marshall's BD-0114 Distribution Amplifier is for use in a wide range of applications. Designed for high quality and critical video applications, this 1 x 4 Video distribution amplifier features signal bandwidth up to 300 MHz. Three of these modules can be used for Y-Pr-Pb (High Definition SMPTE-274), RGB or YUV component analog signal distribution. All Processing and Distribution modules include power supply and owners manual. An optional base holder (V-CB1) is available for use in desktop applications.

DETAILED SPECS - MARSHALL BD-0114 VIDEO DISTRIBUTION AMPLIFIER:

• Dimensions 4.75"W x 3.75"D x 1.0"H
• Signal Input BNC connection of composite video - PAL or SMPTE
• Signal Output 4 BNC
• Frequency Response 5 to 300 Mhz
• K factor <1%
• Signal to Noise >70 db
• Dynamic gain/phase <1% / <1°
• Cable length 1000' max using Belden 8281 or equivalent
• Power required 6 V D.C. supplied from external supply
• Weight 0.55 Lbs

Manufacturer Link: www.lcdracks.com
