Marshall AV-840
Pedestal Microphone with 8.4-inch TFT-MegaPixelT Monitor
Our Price $1038.90 Including 3 - 5 Day Shipping
Back to
Marshall LCD Monitors |
|
|
Click For Larger Image |

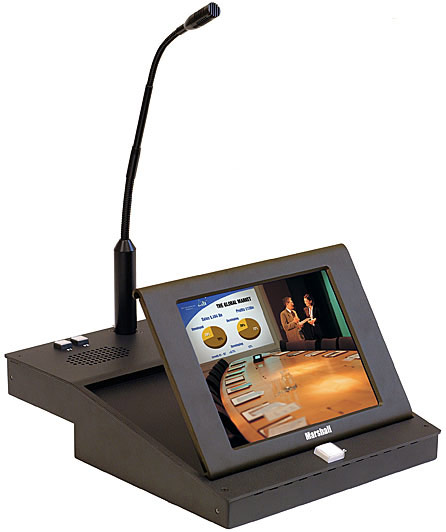

MARSHALL AV-840 Pedestal Microphone with 8.4-inch TFT-MegaPixelT Monitor
|
OVERVIEW - Marshall av840 Pedestal Microphone with 8.4-inch TFT-MegaPixelT Monitor:
Use our TFT-MegaPixelT AV-840 as a direct replacement for podium microphones and benefit from the extra versatility of the integrated computer and Audio/Video monitor. The gooseneck microphone is manufactured by our renowned MXL division and delivers maximum clarity while the video/computer display expands the applications where a podium microphone is required. The system can be operated locally or via remote control RS-232 and GPI, plus there are General Purpose Outputs to provide interface to projectors, screens, lights, etc. A Universal voltage DC Power supply is also included for the system and phantom power.
|
FEATURES - Marshall AV840 Pedestal Microphone with 8.4-inch TFT-MegaPixelT Monitor:
- Desktop or recess install
- Precision gooseneck microphone
- High Resolution 8.4-inch screen
- Screen tilts to store/view
- Internal Speaker plus Audio Jack
- 100% digital processing
- 5 Year /50,000 backlight life
- Accepts VGA, SVGA, and XGA plus composite and S-Video
- Wide viewing radius - 130
- Local control for source selection
- Microphone PTT/PTM/On/Off
- Remote control RS-232, GPI or IR
- GPI Input output
- 350 (cd/m2) brightness
- 500:1 contrast ratio
- Excellent quality moving images
- 4:3 and 16:9 screen aspect ratios
- Security enclosure locks microphone and local adjustments
- Lighted Controls
Standard inputs:
- Composite
- S-Video
- Computer HD-15
- Unbalanced stereo audio
- RS-232 Remote
- 2 General Purpose Interface (GPI)
Standard Outputs:
- Balanced Audio XLR
- 2 GPO
|
SPECIFICATIONS - MARSHALL AV-840 PEDESTAL MICROPHONE WITH 8.4-INCH TFT-MEGAPIXELT MONITOR:
SPECIFICATIONS |
| Display (Viewing Area) |
8.4 Inch diagonal (170.4mm w x 127.8mm h) |
| Native Resolution (Pixels) |
800 Wide x 600 High (1.44 Million RGB Pixels)(262,000 colors) |
| System |
NTSC/PAL, 50Hz to 75Hz Screen refresh for computer |
| Dot Pitch |
.213mm square pixel |
| Contrast Ratio |
400:1 |
| Microphone Power / Mute |
48VDC |
| Brightness |
380 cd/m² |
| Dimensions |
TBD |
| Approx. Weight |
TBD |
| Power Consumption |
TBD (xx VDC Class 2 power supply included) |
Manufacturer Homepage: www.lcdracks.com
|
