KEY POINTS - VASL8000 Marshall 8 inch TFT LCD TV - NTSC Only:
Accepts VHF, UHF, CATV, HRC, IRC
Native resolution for standard definition images
640x480 resolution (.9 Megapixel)
Full color TFT screen
4:3 and 16:9 screen format
Auto Power On Function
NTSC/PAL System Selectable
Mirror Mode (H&V)
Headphone Jack with volume control
FM transmitter for audio
IR Audio for wireless headphone
On Screen Display (OSD) for adjustment functions
Accepts Video and Stereo Audio
Built in Stereo Speakers
Headphone Jack
Operates on 10 to 16 Volt DC
Includes stand -20 mounting
Includes Remote Control
Includes Mounting Bracket
Includes Power supply
Includes Car power adapter
Includes signal input cables

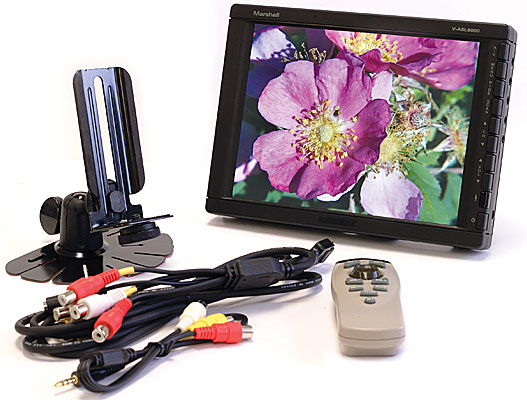

SUMMARY - Marshall vasl8000 8 inch TFT LCD TV - NTSC Only:
The V-ASL8000 is Low reflection high resolution TFT LCD TV monitor set. Features include NTSC/PAL operation, 2 Video and 2 channels Audio input. 16:9 and 4:3 screen format settings. The image can also be reversed vertically and horizontally.
The V-ASL8000 includes User manual, Full function Remote Control, 12 VDC universal voltage power supply, Mounting Bracket/Pedestal, Plus CATV, Video and Audio Input cables.
DETAILED SPECS - MARSHALL V-ASL8000 8 INCH TFT LCD TV - NTSC ONLY:
SPECIFICATIONS
Display (Viewing Area)
6.375” wide x 4.75” high (8”diagonal)
Resolution (Pixels)
640 Pixel wide x 480 Pixel high 921,600 pixels
Signal Input
2 Composite NTSC/PAL plus 2 Stereo Hi Z Unbalanced Audio
(Female RCA Connectors) (3.5mm Plug video and stereo audio) (2.5mm-F CATV)
Brightness (in cd/m)
200 cd/m
Contrast Ratio
100:1
Power Required
10 to 16 V D.C. from external supply (included) (600 ma max)
