MARSHALL V-ASL8080 Low Reflection Hi Res 8 inch TFT LCD Monitor
KEY POINTS - VASL8080 Marshall Low Reflection Hi Res 8 inch TFT LCD Monitor:
Native resolution for standard definition images
640x480 resolution (.9 Megapixel)
Full color TFT screen
4:3 and 16:9 screen format
Auto Power On Function
NTSC/PAL System Selectable
Mirror Mode (H&V)
Headphone Jack with volume control
IR Audio for wireless headphone
FM transmitter for audio
On Screen Display (OSD) for adjustment functions
Accepts Video and Stereo Audio
Built in Stereo Speakers
Headphone Jack
Operates on 10 to 16 Volt DC
Includes stand
-20 mounting
Includes Remote Control
Includes Mounting Bracket
Includes Power supply
Includes Car power adapter
Includes signal input cables
SUMMARY - Marshall vasl8080 Low Reflection Hi Res 8 inch TFT LCD Monitor:
The V-ASL8080 is Low reflection high resolution TFT LCD/Monitor. Features include NTSC/PAL operation, 2 Video and 2 channels Audio input. 16:9 and 4:3 screen format settings. The image can also be reversed vertically and horizontally.

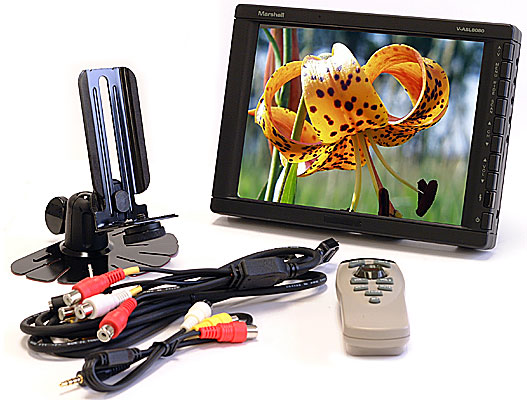

The V-ASL8080 includes User manual, Full function Remote Control, 12 VDC universal voltage power supply, Mounting Bracket/Pedestal, Video and Audio Input cable.
|
DETAILED SPECS - MARSHALL V-ASL8080 LOW REFLECTION HI RES 8 INCH TFT LCD MONITOR:
SPECIFICATIONS
Display (Viewing Area)
6.375” wide x 4.75” high (8”diagonal)
Resolution (Pixels)
640 Pixel wide x 480 Pixel high 921,600 pixels
Signal Input
2 Composite NTSC/PAL plus 2 Stereo Hi Z Unbalanced Audio
(Female RCA Connectors) (3.5mm Plug video and stereo audio)
Brightness (in cd/m)
200 cd/m
Contrast Ratio
100:1
Power Required
10 to 16 V D.C. from external supply (included) (600 ma max)
