KEY POINTS - Marshall vlcd110atsc 11 inch portable lcd monitor with atsc & qam tuner. works in ntsc only:

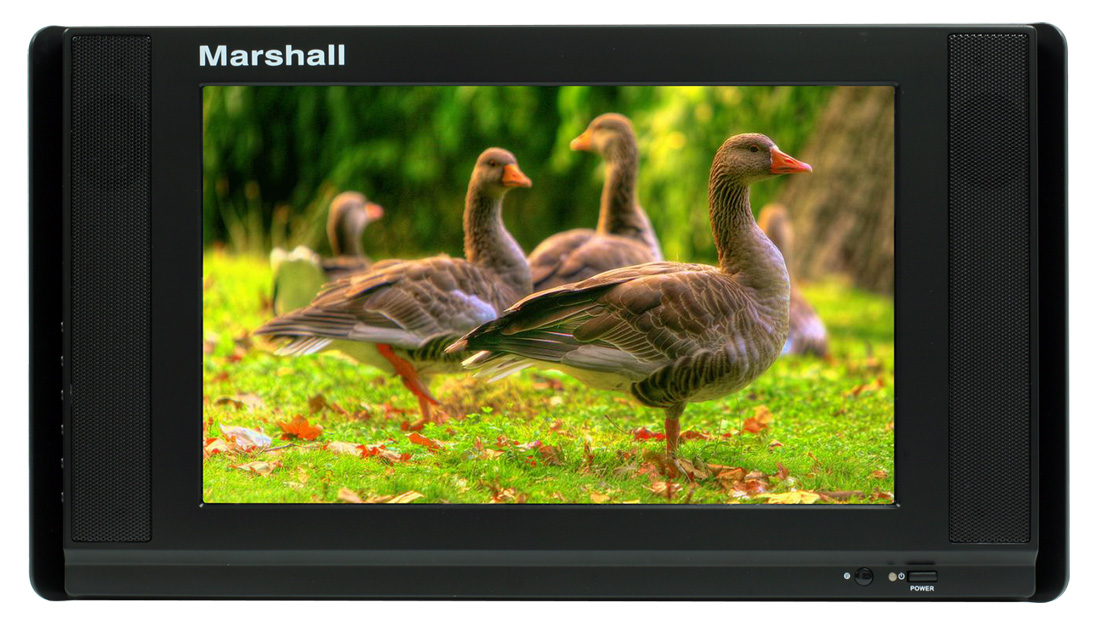

11 inch ATSC/QAM/NTSC LCD TV
Resolution 800 x 480
Aspect Ratio 16 : 9
Contrast 400 : 1
Brightness 180cd/mē
SUMMARY - Marshall vlcd110atsc 11 inch Portable LCD Monitor with ATSC & QAM tuner. Works in NTSC ONLY:
The Marshall V-LCD110-ATSC 11 inch ATSC monitor offers a variety of features combined with bright, high resolution picture performance. Standard video adjustments include contrast, brightness, color, sharpness, and tint, along with four picture preset modes (Personal, Standard, Dynamic, and Soft). There are also three preset color modes (Normal, Warm, and Cool), along with three different Format modes (Auto, 4:3, and Wide). Four audio preset modes (Personal, Standard, Movie, and Music) provide clean and precise sound from two-channel stereo speakers. Other features include Closed Captioning, Clock, Auto Channel Scan, Electronic Program Guide (EPG), and the ability to edit and label individual Programs and Channels.
DETAILED SPECS - MARSHALL V-LCD110-ATSC 11 INCH PORTABLE LCD MONITOR WITH ATSC & QAM TUNER. WORKS IN NTSC ONLY:
SPECIFICATIONS
Resolution
800 x 480
Aspect Ratio
16 : 9
Contrast
500 : 1
Brightness
200cd/mē
Video Input
1Vp-p 75 ohm
(two route)
Audio Input
2Vp-p two
channels (L & R)
Audio output
Build-in loudspeaker
(0.5W x 2)
Input Resistance
75 Ohm
Input bit rate
Max. 19.4Mbit/s
Audio decoding
AC-3
Sound output
Stereo/2-channel
(Left & Right)
QAM Modulation
64-QAM
256-QAM
8-VSB
Frequencies
CATV (STD, IRC, HRC)
AIR: CH2-69
CATV: CH2-125
OSD menu language
English,
French, Spanish
Power supply
AC 110-240V
DC 12V 10W
Accessories
Remote control, AC/DC adapter, 75 ohm antenna conversion cable (screw connector), U-shaped, support bracket, A/V cable and manual
