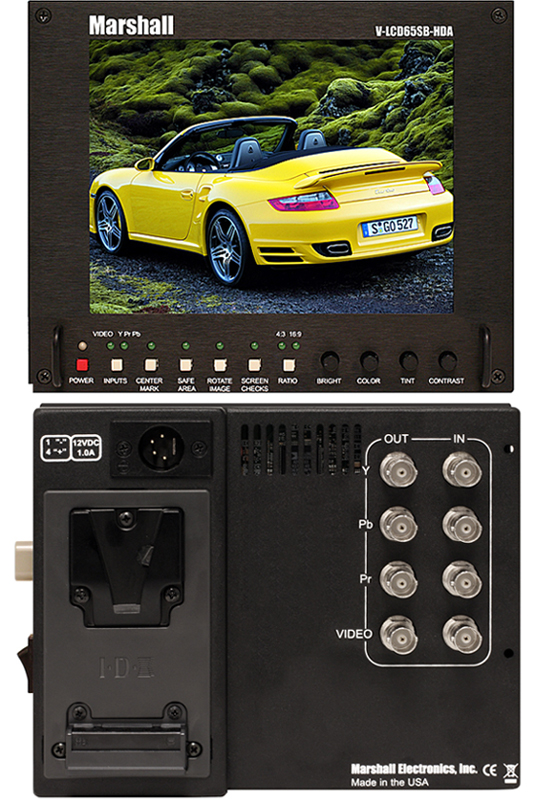

Marshall VLCD65SBHDA LCD Monitor marshall vlcd65sbhda

KEY POINTS - VLCD65SBHDA Marshall 6.5 Inch Outdoor LCD Monitor:

Bright 600 candelas per square meter (cd/m²) luminance produces enhanced image quality in diverse lighting and viewing conditions

600:1 contrast ratio

4:3 and 16:9 screen aspect ratios for DTV applications in HD and SD format

Image Flip feature / RGB Calibration / Center Mark / Safe Area

Adjustment Settings Memory

Durable Metal Enclosure

V-Mount battery adapter included

Standard Multi-format inputs: Component Analog HD/SD and Composite Video NTSC/PAL

DETAILED SPECS - MARSHALL VLCD65SBHDA 6.5 INCH OUTDOOR LCD MONITOR:

Display
(Viewing Area)

6.5-inch diagonal (5.2 x 3.9 inches)
(132.48mm W x 99.36mm H)

Resolution (Pixels)

640 H × RGB x 480 V

Dot Pitch

0.069 (H) x 0.207 (V) mm

Brightness
(in cd/m²)

600

Contrast Ratio

600:1

System

NTSC/PAL with automatic recognition

Screen Formats

640 x 480 - 59.94i, 60i, 29.97p, 30p, 59.94p, 60p
1280 x 720 – 30p, 50i, 59.94p, 60p
1920 x 1080 – 23.98p, 24p, 30p, 50i, 59.94i, 60i

Inputs

BNC for YPbPr / YCbCr
BNC for Composite Video (NTSC/PAL) 75 Ohm with AGC

Dimensions
(W x H x D)

7.09 x 5.74 x 3.02 inches
(180.09mm x 145.8mm x 76.71mm)

Approx. Weight

1.8 lbs

Power Consumption

12 VDC, 1.0Amps max - UL Class 2

Applications

Video Assist, Talent Monitor, Signal Confidence Monitor

Marshall VLCD65SBHDA 6.5 Inch Outdoor LCD Monitor
