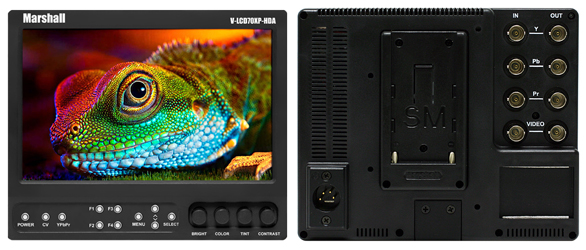

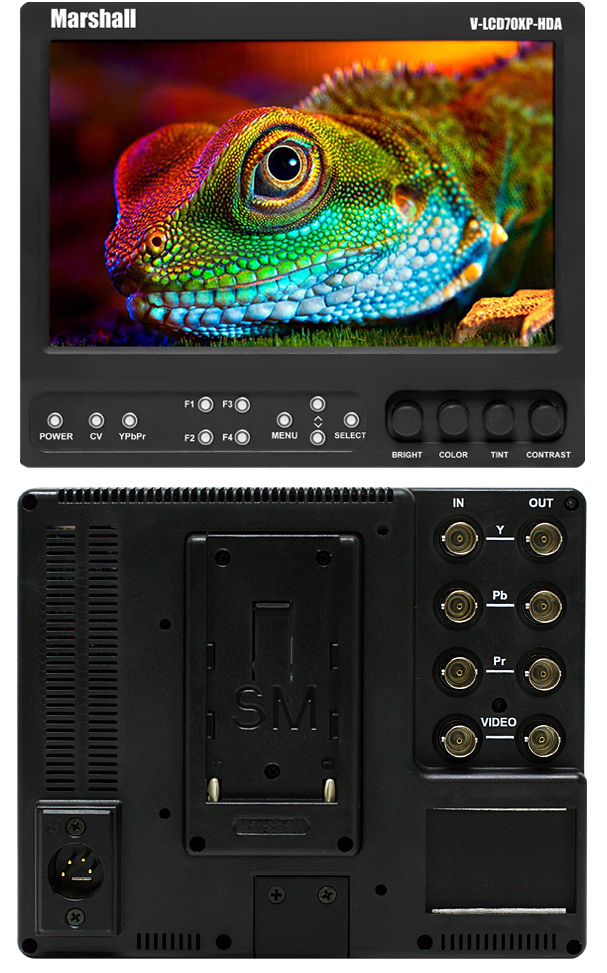

Marshall V-LCD70XP-HDA 7 inch Lightweight High Resolution Portable Field / Camera-Top Monitor

Our Price $814.99 Including Shipping

Back to Marshall LCD Monitors

KEY POINTS - Marshall vlcd70xphda 7 inch lightweight high resolution portable field / camera-top monitor:

High resolution 800 x 480 LCD panel

Manual Gamma Adjustment

Adjustable Backlight

Image Flip

1/4 inch-20 mounts on all sides

More robust Power switch

Improved, more rugged front panel

Variety of Markers, including user-adjustable

False Color On/Off

Peaking Filter On/Off

RGB Check Field / Field Detect

15:9, 16:9, 4:3, Pixel-to-Pixel modes

Scratch Resistant Protective Screen

4 user-configurable function buttons

RGB gain and bias control

Variety of User-Replaceable Battery Adapters available

SUMMARY - Marshall vlcd70xphda 7 inch Lightweight High Resolution Portable Field / Camera-Top Monitor:

The Marshall V-LCD70XP-HDA is the latest update to Marshall's successful and popular line of portable field / camera-top monitors. These monitors have been upgraded with even more features and versatility, but without additional cost. New features include cast metal front panel, adjustable backlight and markers, manual gamma adjustment, Image Flip, 1/4 inch - 20 mounting on all sides, and a more robust power switch.

DETAILED SPECS - MARSHALL V-LCD70XP-HDA 7 INCH LIGHTWEIGHT HIGH RESOLUTION PORTABLE FIELD / CAMERA-TOP MONITOR:

SPECIFICATIONS

Screen Size (Display Area)

7.0-inch Diagonal (152.4mm x 91.44mm)

Resolution (Pixels)

800 x 480

Viewing Angle

L/R: 140°
U/D: 100°

Pixel Pitch (mm)

0.1905mm(H) x 0.1905mm(V)

Brightness (in cd/m²)

450

Contrast Ratio

600:1

Inputs

Composite x 1, Component x 1

Loop-through outputs

Composite x 1, Component x 1

Dimensions

7.03"W x 5.67"H x 2.17"D

Approx. Weight

1.9 lbs.

Power Consumption

1 Amp (Max) @ 12VDC (12W Max)

Available Battery Adapter Configurations

User-Replaceable Battery Adapters

"CM" - (Canon), "JM" - (JVC), "PM" - (Panasonic), "PV" - (Panasonic),
"SB" - (Sony B series), "SL" - (Sony L series), "SM" - (Sony M series),

"AB" - (Anton/Bauer), "VM" - (V-Mount)

Manufacturer Page: www.lcdracks.com
