Marshall V-LCD84SB-AFHD
Stand-Alone 8.4 inch SunBriteTM High Definition Monitor with all Digital / Analog HD/SD Inputs and Advanced Function Features
Our Price $2457.90 Including 3 - 5 Day Shipping
Back to
Marshall LCD Monitors
|
|
|
Click For Larger Image |

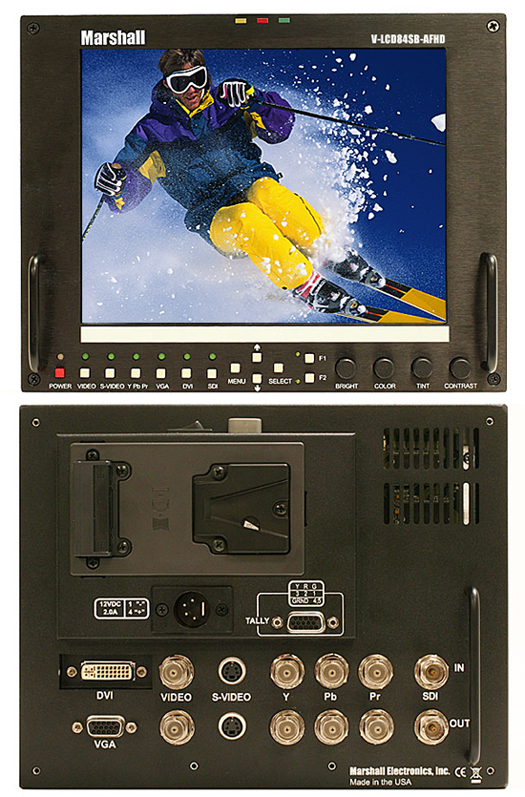

MARSHALL V-LCD84SB-AFHD Stand-Alone 8.4 inch SunBriteTM High Definition Monitor with all Digital / Analog HD/SD Inputs and Advanced Function Features
|
OVERVIEW - Marshall vlcd84sbafhd Stand-Alone 8.4 inch SunBriteTM High Definition Monitor with all Digital / Analog HD/SD Inputs and Advanced Function Features:
The V-LCD84SB-AFHD is an 8.4” high definition LCD monitor featuring our completely digital TFT-MegaPixel™ active matrix platform. Weighing only 3.4 pounds, this monitor is ideal as a lightweight, high-resolution viewfinder or focus-assist monitor. The V-LCD84SB-AFHD can also be rack-mounted with an optional 4RU adapter or used in a desktop configuration using an optional desktop stand. Emulation of SMPTE-C/EBU color and adjustable color temperature enable the most precise color representation possible. Our proprietary digital signal processing features 10-bit A/D conversion of all analog signals, with 4x oversampling and 5-line super-adaptive 2D comb filtering of composite signals. De-interlacing is performed using advanced algorithms with motion adaptive interpolation. Multi-format compatibility accommodates virtually all video formats including NTSC/PAL, 480i/p, 720p, and 1080i/p standards. VGA and DVI inputs accept VESA standards, allowing the display to be used as a computer monitor. Advanced features include aspect ratio settings, a variety of screen markers, underscan mode, blue-only mode, monochrome, H/V delay, and Pixel-to-Pixel mode.
|
FEATURES - Marshall VLCD84SBAFHD Stand-Alone 8.4 inch SunBriteTM High Definition Monitor with all Digital / Analog HD/SD Inputs and Advanced Function Features:
- High Definition 8.4-inch TFT-MegaPixel™ screen with 800 x 600 resolution
- Over 16.7 million colors
- 650 candelas per square meter (cd/m2) luminance produces enhanced image quality in varying light and viewing conditions
- 600:1 ratio of contrast
- Pixel-to-Pixel native resolution scaling
- Blue Gun for color adjustment
- Zoom function
- Direct access for all adjustments
- Works with all SMPTE/ITU analog and serial digital production formats and frame rates
- Easy-to-see three color tally indicators
- Built-in Color Bars
- Adjustment Settings Memory
- Calibrated Color Temperature and Gamma
- Durable Metal Enclosure
- Includes ¼-20 mounting plate that can be attached to any edge of the enclosure
(additional mounting plates available)
- Includes universal voltage Class-2 power supply
- Optional Rack Mount Kit / Desktop Stand available
|
SPECIFICATIONS - MARSHALL V-LCD84SB-AFHD STAND-ALONE 8.4 INCH SUNBRITETM HIGH DEFINITION MONITOR WITH ALL DIGITAL / ANALOG HD/SD INPUTS AND ADVANCED FUNCTION FEATURES:
|
Display (Viewing Area) |
8.4 Inch diagonal (8.3" x 6.2") (170.4mm W x 127.8mm H) |
|
Resolution (Pixels) |
800 H × RGB x 600 V (16.7 Million colors) |
|
Dot Pitch |
0.071 (H) x 0.213 (V) mm |
|
Brightness |
600 cd/m² |
|
Contrast Ratio |
600:1 |
|
System |
NTSC/PAL with automatic recognition |
|
Screen Formats |
640 x 480 - 59.94i, 60i, 29.97p, 30p, 59.94p, 60p
1280 x 720 – 23.97p, 24p, 25p, 29.97p, 30p, 59.94p, 60p
1920 x 1080 – 23.97p, 24p, 25p, 29.97p, 30p, 50i, 59.94i, 60i |
|
Inputs |
HD-15 (VGA, SVGA, XGA, SXGA, RGBHV, YUV, YPbPr) 75 Ohm
BNC for HDSDI/SDI (NTSC/PAL) 75 Ohm
3 BNCs for YPbPr / YCbCr
DVI connector for DVI-I
BNC for Composite Video (NTSC/PAL) 75 Ohm with AGC
4-Pin Mini Din for S-Video (Y/C) |
|
Dimensions |
9.00”W x 7.00”H x 1.87”D |
|
Approx.
Weight |
3.4 lbs |
|
Power
Consumption |
12 VDC, 2.0Amps max - UL Class 2 |
Manufacturer Homepage: www.lcdracks.com
|
