Marshall VR1041DPAFHD
10.4 inch High Resolution HD LCD Monitor with Advanced Features
Our Price $3578.49 Including 3 - 5 Day Shipping
Back to
Marshall LCD Monitors Main |
|
|

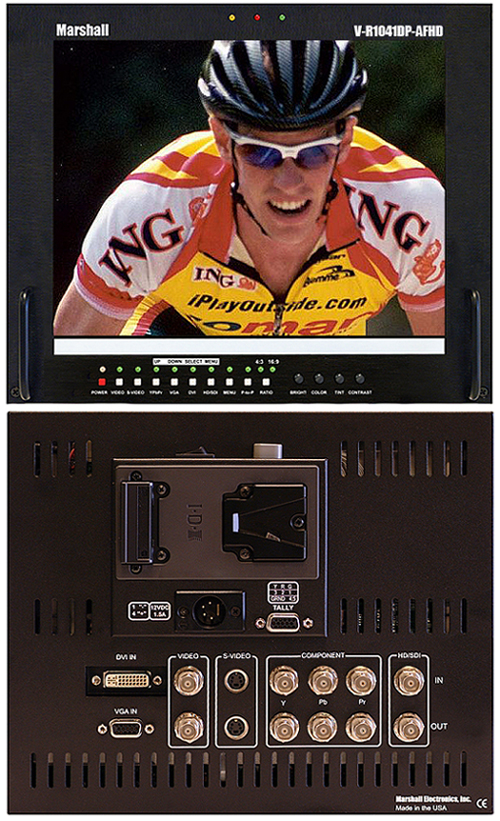

Click for Larger Image |
MARSHALL V-R1041DP-AFHD 10.4 inch High Resolution HD LCD Monitor with Advanced Features
|
OVERVIEW - Marshall vr1041dpafhd 10.4 inch High Resolution HD LCD Monitor with Advanced Features:
The Marshall V-R1041DP-AFHD features a completely digital TFT-MegaPixel high definition LCD screen with 2.4 million pixels, V-Mount battery adapter, 4-pin XLR power jack, and optical grade polycarbonate screen protection. Analog signals are digitized using an advanced 10-bit process with 4x oversampling and adaptive 5-line comb filter with exacting color space conversion. Video is scaled to fit onscreen in the highest resolution using a state-of-the-art LSI that incorporates 4x4 pixel interpolation with precision Gamma correction to product the best images available. Additional features include Pixel-to-Pixel native resolution scaling, setup memory, Zoom function, 6 Frame Marker Overlays, Blue Gun, and direct access for all adjustment and selection functions
|
FEATURES - Marshall VR1041DPAFHD 10.4 inch High Resolution HD LCD Monitor with Advanced Features:
- Durable metal enclosure
- High Definition 2.4 MegaPixel screen with 1024 x 768 resolution
- "V" Mount battery adapter included
- Runs 4-6 hours on optional 80WH battery
- Optical grade polycarbonate screen cover with Anti-reflective / Anti-glare coating
- 100% digital processing
- Analog signals converted to 10-bit digital
- High resolution scaling of all images
- Pixel-to-Pixel native resolution scaling
- CRT style viewing radius -- 170° in all directions provides superior visibility when the viewer is not directly in front of the screen.
- 300 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light and viewing conditions.
- 700:1 ratio of contrast between black and white luminance values
- Zoom function
- Standard inputs:
- HDSDI (all formats)
- SDI (ITU-R BT601 format)
- Composite Video PAL/NTSC
- Y/C (S-Video)
- Component Video YPbPr
- VGA to SXGA computer display
- DVI-I
- Works with all SMPTE/ITU analog and serial digital production formats and frame rates
- Easy-to-see three color tally indicators
- Built-in Color Bars
- Adjustment Settings Memory
- Calibrated Color Temperature and Gamma
- Includes ¼-20 mounting plate that can be attached to any edge of the enclosure (additional mounting plates available)
- Includes universal voltage Class-2 power supply
- Optional Rack Mount Kit
|
SPECIFICATIONS - MARSHALL V-R1041DP-AFHD HD LCD MONITOR:
Number of Screens |
1 with Anti-glare surface treatment |
Display (Viewing Area) |
10.4 Inch diagonal (8.3" x 6.2") (211.2mm W x 158.4mm H) |
Resolution (RGB Dots) |
1024 H × RGB × 768 V (2.4 million RGB pixels) (16.7 Million colors) |
Viewing Angles |
170° H x 170° V |
Dot Pitch |
0.0685 (H) x 0.2055 (V) mm |
Contrast Ratio |
700:1 |
Brightness (in cd/m²) |
300 |
System |
NTSC/PAL auto recognition for standard definition signals |
Manufacturer Page: www.lcdracks.com
|
