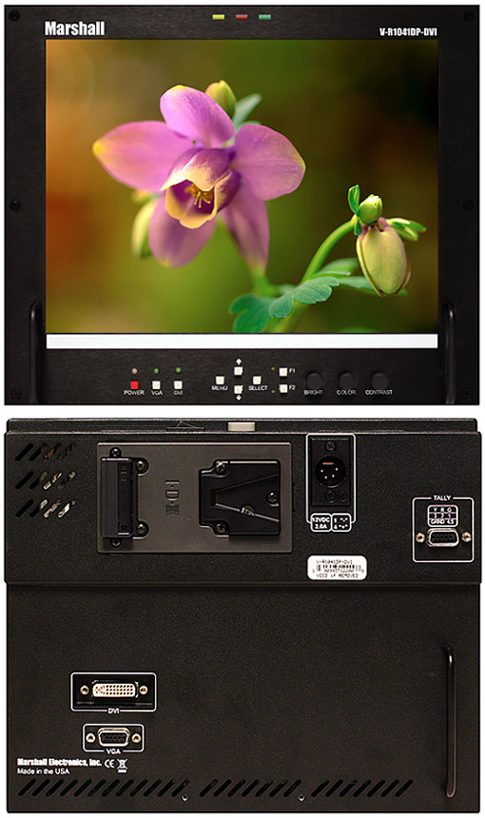

MARSHALL VR1041DPDVI 10.4 Inch DVI LCD Field Monitor
KEY POINTS - VR1041DPDVI Marshall 10.4 Inch DVI LCD Field Monitor:
Large 10.4-inch screen with 100% digital processing
1024x768 Dots (2.4 million RGB pixels)
Wide viewing radius: 170 Degrees
300 cd/m² luminance with a 700:1 contrast ratio
Direct access for all adjustments
Durable metal enclosure with a configurable ¼ 20 Mounting
Operates on 12 VDC with AC-to-DC Power Supply Included
Optical grade polycarbonate screen cover
5 Year / 50,000 backlight life
SUMMARY - Marshall vr1041dpdvi 10.4 Inch DVI LCD Field Monitor:
The portable V-R1041DP-DVI 10.4-inch DVI LCD monitor from Marshall is a unique solution for Professional IT, A/V and Multimedia applications that offers 100% digital processing. This field-durable display is low in weight and has low power consumption. The V-R1041DP-DVI also features Award Winning Digital TFT-Megapixel system. Signals are input via a Female HD-15 connector for computer signals up to SXGA resolution (1280x1024) and DVI-I. RGB signals are digitized using an advanced 10-bit process and all accepted resolutions are scaled to fit on each screen in the highest resolution using our proprietary program and state-of-the-art LSI.
DETAILED SPECS - MARSHALL VR1041DPDVI 10.4 INCH DVI LCD FIELD MONITOR:
Display
(Viewing Area)
10.4 Inch diagonal (8.3 x 6.2 inches)
(211.2mm W x 158.4mm H)
Resolution (Pixels)
1024 Wide x 768 High (262,144 colors)
Dot Pitch
0.0685 (H) x 0.2055 (V) mm
Brightness
(in cd/m²)
300
Contrast Ratio
700:1
Inputs
PC-SXGA (1280 x 1024) via HD-15 Female Connector and 1 DVI-D
Dimensions
(W x H x D)
10.25 x 8.5 x 2.5
(260.4mm x 215.9mm x 38.1mm)
Approx. Weight
4 lbs (1.8 kg)
Power Consumption
App. 50 Watt
(5 Amp 12 VDC Class 2 power supply included)
