Marshall V-R1041DP-TE 10.4 inch Single High Definition 1024 x RGB x 768 monitor set with HDSDI inputs

Our Price $2189.99 Including Shipping

Back to Marshall LCD Monitors

KEY POINTS - Marshall vr1041dpte 10.4 inch single high definition 1024 x rgb x 768 monitor set with hdsdi inputs:

High Definition 10.4-inch 2.4 MegaPixel screen with 1024 x RGB x 768 resolution

100% digital processing (10 bit)

5 Year /50,000 hour backlight life

High resolution scaling

Wide viewing radius - 170° horizontal and vertical provides superior visibility

300 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light and viewing conditions

700:1 ratio of contrast between black and white luminance values with response rates less than 25 ms results in excellent quality for moving images

Direct access for adjustments of brightness and contrast

Two large color tally indicators

SUMMARY - Marshall vr1041dpte 10.4 inch Single High Definition 1024 x RGB x 768 monitor set with HDSDI inputs:

The Marshall V-R1041DP-TE 10.4 inch 2.4 MegaPixel Screen features our award winning TFT-MegaPixel system and is a cost effective solution for many broadcast and professional video applications. Ready to rack mount in 5RU, this cost effective model provides up to 20% more screen when compared to our competitors' LCD and CRT models that occupy the same space. This is in addition to the benefits of low weight and power consumption when compared to similar CRT products. Inputs are provided for a single HDSDI/SDI source on each of the screens. Our Hyper Process for motion compensation is employed to provide smooth motion of interlace images. All screen formats are scaled to fit on screen in the highest resolution using our proprietary program and state of the art LSI with CRT Color Match conversion to emulate SMPTE-C phosphor of a CRT.

DETAILED SPECS - MARSHALL V-R1041DP-TE 10.4 INCH SINGLE HIGH DEFINITION 1024 X RGB X 768 MONITOR SET WITH HDSDI INPUTS:

SPECIFICATIONS
Display (Viewing Area)	10.4 Inch diagonal (8.3" x 6.2") (211.2mm W x 158.4mm H)
Resolution (Pixels)	1024 Wide x 768 High (262,144 colors)
Dot Pitch	0.0685 (H) x 0.2055 (V) mm
Brightness (in cd/m²)	300
Contrast Ratio	700:1
Inputs per panel (total)	1 HDSDI/SDI Multirate
Dimensions	9.6" w x 8.5" h x 1.75" d
Approx. Weight	3.6 lbs (1.62 kg)
Power Consumption	App. 25Watt (5Amp 12 VDC Class 2 power supply included)

Manufacturer Page: www.lcdracks.com

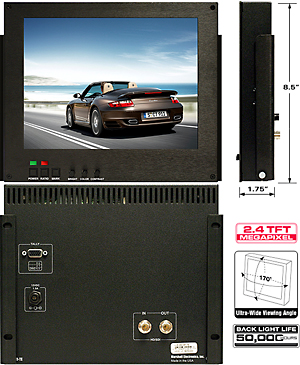

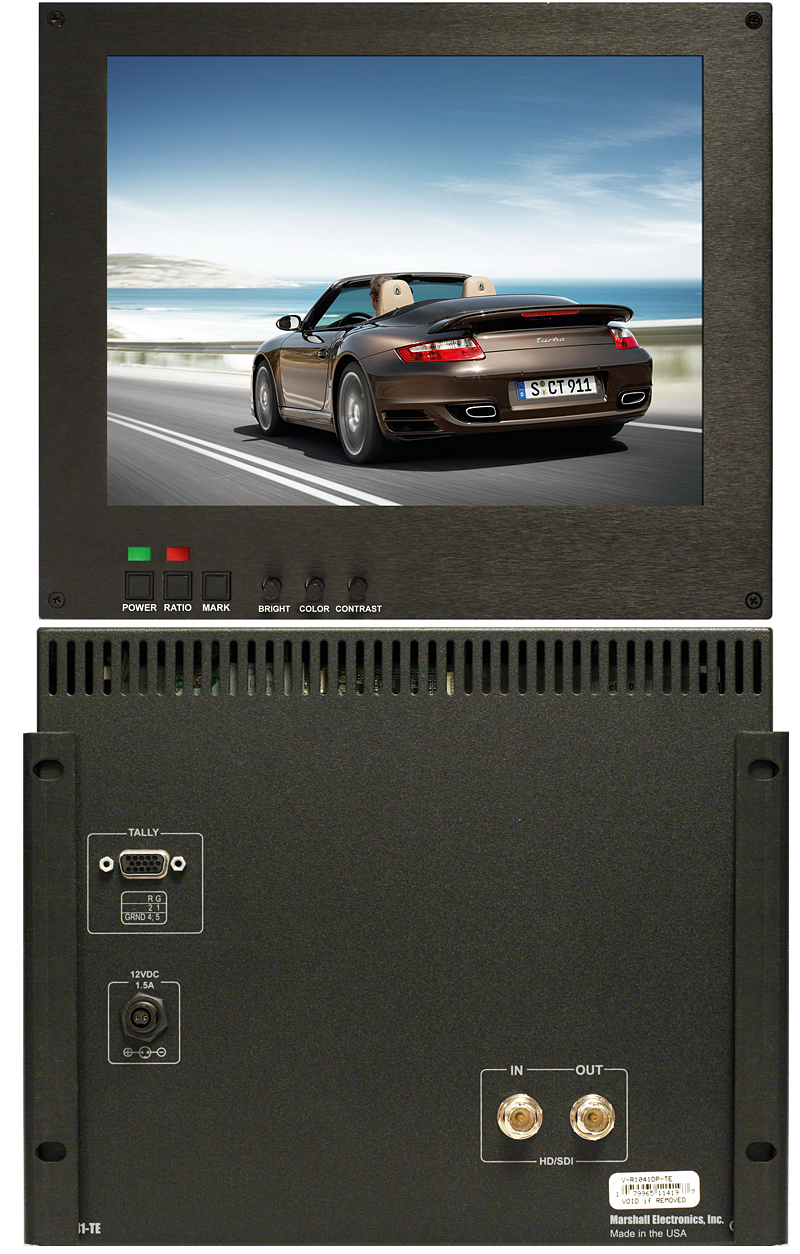

marshall vr1041dpte lcd monitor display v-r1041dp-te
