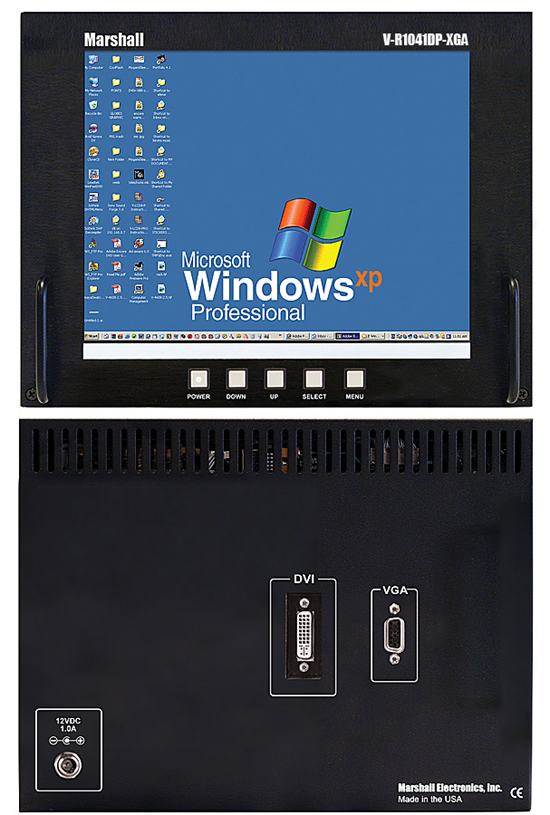

KEY POINTS - VR1041DPXGA Marshall 10.4 inch XGA/DVI LCD Monitor:
Large 10.4-inch screen
1024x768 Dots (2.4 million RGB pixels)
100% digital processing
5 Year /50,000 backlight life
10 bit Analog to Digital conversion
Wide viewing radius - 170°
300 (cd/m2) luminance
700:1 contrast ratio
Response rates less than 25 ms
Direct access for all adjustments
Durable metal enclosure
Configurable ¼ 20 Mounting
Operates on 12 VDC
AC to DC Power Supply Included
Optical grade polycarbonate screen cover
SUMMARY - Marshall vr1041dpxga 10.4 inch XGA/DVI LCD Monitor:
Our portable V-R1041DP-XGA is a unique solution for Professional IT, A/V and Multimedia applications. This field durable display is low weight and has low power consumption.
The V-R1041DP-XGA features our Award Wining Digital TFT-MegapixelT system. Signals are input via a Female HD-15 connector for computer signals up to SXGA resolution (1280x1024) and DVI-I.
RGB signals are digitized using an advanced 10 bit process, and all accepted resolutions are scaled to fit on each screen in the highest resolution using our proprietary program and state of the art LSI.
DETAILED SPECS - MARSHALL V-R1041DP-XGA 10.4 INCH XGA/DVI LCD MONITOR:
Display (Viewing Area)
10.4 Inch diagonal (8.3" x 6.2") (211.2mm W x 158.4mm H)
Resolution (Pixels)
1024 Wide x 768 High (262,144 colors)
Dot Pitch
0.0685 (H) x 0.2055 (V) mm
Brightness (in cd/m)
300
Contrast Ratio
700:1
Inputs
PC-SXGA (1280 x 1024) via HD-15 Female Connector and 1 DVI-D
Dimensions
10.25"w x 8.5" h x 2.5" d (260.4mm x 215.9mm x 38.1mm)
Approx.
Weight
4 lbs (1.8 kg)
Power
Consumption
App. 50 Watt (5 Amp 12 VDC Class 2 power supply included)
