Marshall V-R104DP-2SDI
TFT-MegaPixel 10.4-Inch Field Monitor with 2 SDI Inputs
Our Price $1588.90 Including 3 - 5 Day Shipping
Back to
Marshall LCD Monitors |
|
|

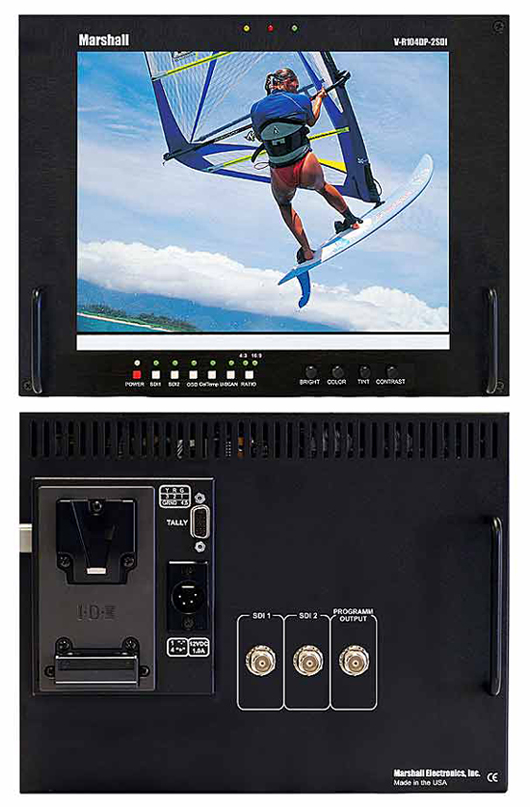

Click For Larger Image
|
OVERVIEW - Marshall vr104dp2sdi TFT-MegaPixel 10.4-Inch Field Monitor with 2 SDI Inputs:
With 20% more display in a smaller package, our low cost V-R104DP-2SDI is the perfect alternative to 8 and 9-inch CRTs used in broadcast, professional video and multimedia applications. This model includes our Award Wining Digital TFT-MegapixelT system with 1.44 million pixels.
Inputs are provided for a single HDSDI/SDI source. An output is available repeating the input data as a re-clocked and re-shaped signal.
Our Hyper Process for motion compensation is employed to provide smooth motion of interlace images. The image format is scaled to fit on screen in the highest resolution using our proprietary program and state of the art LSI with
Match Color Conversion to emulate SMPTE-C phosphor of a CRT.
Standard features include V-Mount battery adapter, 4 pin XLR power jack, and optical grade polycarbonate screen protection.
|
FEATURES - Marshall VR104DP2SDI TFT-MegaPixel 10.4-Inch Field Monitor with 2 SDI Inputs:
- Large 10.4-inch screen
- 800x600 Dots (1.44 million RGB pixels)
- Hyper Process for Interlace Images
- Match Color Conversion
- 100% digital processing
- 5 Year /50,000 backlight life
- 10 bit Analog to Digital conversion
- Wide viewing radius - 130°
- 600 (cd/m2) luminance
- 500:1 contrast ratio
- Response rates less than 25 ms
- 4:3 and 16:9 screen aspect ratios
- Direct access for all adjustments
- Three color tally indicators
- On Screen Display (OSD)
- Blue Screen for color adjustment
- Color Temperature adjustment
- Adjustment Settings Memory
- Standard Inputs/Outputs:
- 2 SDI (ITU-BR601/SMPTE-259M)
- SDI Output of displayed signal
- Durable metal enclosure
- Configurable ¼ 20 Mounting
- "V" Mount for Battery included
- Runs 4 to 6 hours on optional battery
- Power Supply Included
- Optical grade polycarbonate screen c
|
SPECIFICATIONS - MARSHALL V-R104DP-2SDI TFT-MEGAPIXEL 10.4-INCH FIELD MONITOR WITH 2 SDI INPUTS:
|
Display (Viewing Area)
|
10.4 Inch diagonal (211.2mm w x 158.4mm h) |
|
Resolution (Pixels)
|
800 Wide x 600 High (1.44 Million RGB Pixels)(262,000 colors) |
|
Dot Pitch
|
.264mm square pixel l |
|
Brightness (in cd/m)
|
600 |
|
Contrast Ratio
|
500:1 |
|
Inputs
|
2 SDI |
|
Dimensions
|
10.25"w x 8.5" h x 2.5" d (260.4mm x 215.9mm x 38.1mm) |
|
Approx.
Weight
|
4 lbs (1.8 kg) |
|
Power
Consumption
|
App. 50 Watt (5 Amp 12 VDC Class 2 power supply included) |
Manufacturer Homepage: www.lcdracks.com
|
