Marshall V-R104DP-SD
TFT-MegaPixelT 10.4-Inch SDI Field Monitor with Multiformat Inputs
Our Price $1918.90 Including 3 - 5 Day Shipping
Back to
Marshall LCD Monitors |
|
|

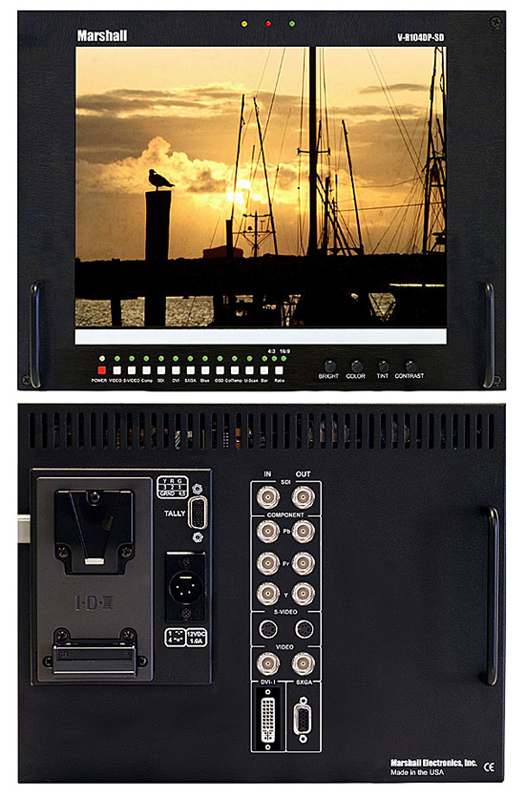

Click For Larger Image
|
OVERVIEW - Marshall vr104dpsd TFT-MegaPixelT 10.4-Inch SDI Field Monitor with Multiformat Inputs:
With 20% more display in a smaller package, our full feature V-R104DP-SD is the perfect alternative to 8 and 9-inch CRTs used in broadcast, professional video and multimedia applications. This model includes our Award Wining Digital TFT-MegapixelT system with 1.44 million pixels plus Hyper Process for interlace image motion compensation.
Inputs are provided for SDI, HD or SD Component Analog, Composite, Y/C, DVI Analog or Digital from HDMI with HDCP, plus PC up to XGA resolution (1024 x 768). Analog signals are digitized using a 10 bit process and images are scaled to fit on screen in high resolution using our state of the art LSI with 4x4 pixel interpolation and Match Color Conversion to emulate SMPTE-C phosphor of a CRT. Standard features include V-Mount battery adapter, 4 pin XLR power jack, and optical grade polycarbonate screen protection.
|
FEATURES - Marshall VR104DPSD TFT-MegaPixelT 10.4-Inch SDI Field Monitor with Multiformat Inputs:
- Large 10.4-inch screen
- 800x600 Dots (1.44 million RGB pixels)
- Hyper Process for Interlace Images
- Match Color Conversion
- 100% digital processing
- 5 Year /50,000 backlight life
- 10 bit Analog to Digital conversion
- Wide viewing radius - 130°
- 600 (cd/m2) luminance
- 500:1 contrast ratio
- Response rates less than 25 ms
- 4:3 and 16:9 screen aspect ratios
- Direct access for all adjustments
- Three color tally indicators
- On Screen Display (OSD)
- Blue Screen for color adjustment
- Color Temperature adjustment
- Adjustment Settings Memory
- Standard Inputs/Outputs:
- SDI (ITU-BR601/SMPTE-259M)
- Component analog (YCrCb) (YPrPb) for virtually all HD and SD formats
- Composite Video auto PAL/NTSC recognition
- S-Video
- DVI Digital and Analog
- PC up to XGA (1024 x 768)
- Loop through of all video signals
- Configurable ¼ 20 Mounting
- "V" Mount for Battery included
- Runs 4 to 6 hours on optional battery
- Power Supply Included
- Optical grade polycarbonate screen cover
|
SPECIFICATIONS - MARSHALL V-R104DP-SD TFT-MEGAPIXELT 10.4-INCH SDI FIELD MONITOR WITH MULTIFORMAT INPUTS:
|
Display (Viewing Area)
|
10.4 Inch diagonal (211.2mm w x 158.4mm h) |
|
Resolution (Pixels)
|
800 Wide x 600 High (1.44 Million RGB Pixels)(262,000 colors) |
|
Dot Pitch
|
.264mm square pixel |
|
Brightness (in cd/m)
|
600 |
|
Contrast Ratio
|
500:1 |
|
Inputs
|
SDI, Composite , S-Video (Y/C), Component, DVI, PC-XGA (1024 x 768)s |
|
Dimensions
|
10.25"w x 8.5" h x 2.5" d (260.4mm x 215.9mm x 38.1mm) |
|
Approx.
Weight
|
4 lbs (1.8 kg) |
|
Power
Consumption
|
App. 50 Watt (5 Amp 12 VDC Class 2 power supply included) |
Manufacturer Homepage: www.lcdracks.com
|
